What Is a Waterproof Connector? Applications, IP Ratings & Selection Guide
With the growing adoption of IoT devices and smart factories, the importance of waterproof protection in manufacturing equipment and outdoor installations continues to increase.
Especially in harsh environments, protecting electrical connections from water is essential for maintaining stable signal transmission and reliable power supply.
In this article, we'll explain the fundamentals of waterproof connectors, their typical applications, IP protection ratings, and the key points to consider when selecting the right connector for your needs.

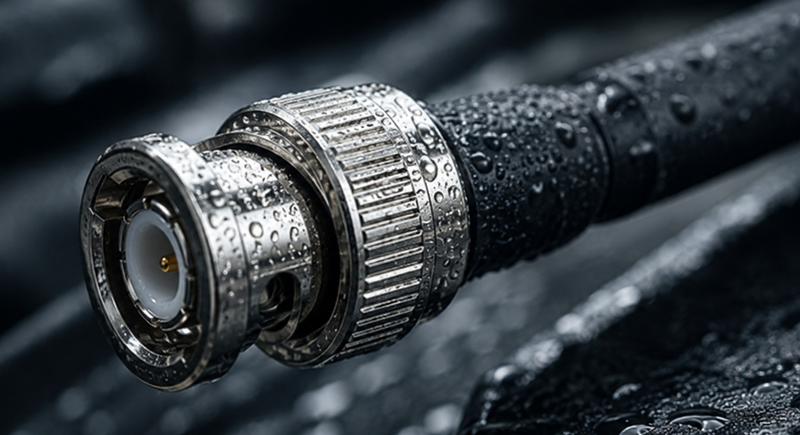

What Is a Waterproof Connector?
A waterproof connector is a connector designed to prevent water from entering the connection area. It typically achieves this through sealing components such as O-rings, rubber gaskets, and other sealing structures.
In addition to water resistance, many waterproof connectors also help prevent dust and other contaminants from entering the connector, allowing stable electrical connections even in harsh operating environments.
Why Is Waterproof Performance Important?
If water enters a connector, it can cause electrical shorts, corrosion of contacts, and in severe cases, failure of the entire system or safety hazards.
Typical problems caused by water intrusion include:
✓Electrical short circuits and current leakage
✓Signal transmission failures caused by poor contact
✓Corrosion due to moisture ingress
✓Increased contact resistance
✓Equipment malfunction and premature failure
To prevent these issues and ensure stable power delivery and signal transmission, waterproof connectors are essential for applications exposed to demanding environments.
In outdoor installations and industrial production lines, connectors must withstand not only rain but also condensation, washdowns, oil, chemicals, and dust.
How Do Waterproof Connectors Keep Water Out?
The waterproof performance of a connector is achieved by sealing the gaps between its individual components.
For cable-type waterproof connectors, sealing elements such as rubber or silicone gaskets and O-rings are commonly installed around the cable entry and mating interface.
These sealing components compress when the connector is assembled, creating a tight seal that physically blocks water and moisture from entering.
For panel-mounted connectors, additional sealing gaskets are often placed between the connector flange and the equipment enclosure, preventing water from entering through the mounting surface and maintaining complete separation between the inside and outside of the enclosure.
Common Applications of Waterproof Connectors
Waterproof connectors are widely used in a variety of applications and environments, including the following.
Outdoor Infrastructure, Telecommunications, and Broadcasting Equipment
Waterproof connectors play an essential role in outdoor communication infrastructure exposed to rain and harsh weather conditions.
Applications such as outdoor antennas, wireless communication equipment, and broadcasting systems require reliable connectors that maintain stable signal transmission even during rainfall.
For these environments, waterproof connectors with excellent weather resistance and long-term durability are commonly used.
Security Cameras and Surveillance Systems
Outdoor surveillance cameras and security systems installed around factories or buildings are constantly exposed to rain, dust, and ultraviolet (UV) radiation.
If moisture or dust enters the enclosure, it can damage camera modules, electronic circuits, and lenses. Therefore, waterproof connectors, sealed enclosures, and weather-resistant cable assemblies are essential.
Reliable waterproof performance and long-term durability help ensure stable operation over extended periods.
Measurement Equipment and Sensor Systems
Sensors and monitoring devices are used in a wide range of locations to collect data.
Particularly in outdoor monitoring systems, industrial production lines, and environmental measurement applications, equipment must continue operating reliably despite rain, temperature fluctuations, humidity, and dust.
Waterproof and dustproof connectors help ensure accurate data collection and stable signal transmission under these demanding conditions.
Other Applications in Wet or Harsh Environments
Waterproof connectors are also widely used in applications such as shipbuilding and marine equipment, railway systems, automotive engine compartments, agricultural automation equipment, and power conditioning systems for solar energy.
In these environments, waterproof connectors contribute to the long-term reliability and stable operation of equipment by preventing moisture and contaminants from entering electrical connections.
Understanding IP Ratings
Choosing the right waterproof connector requires a proper understanding of IP (Ingress Protection) ratings, which indicate the level of protection against dust and water.
How to Read an IP Rating
The internationally recognized IP Code, defined by IEC 60529, is used to classify the level of protection provided by an enclosure.
In Japan, the same classification is standardized as JIS C 0920.
An IP rating consists of the letters "IP" followed by two digits.
✓The first digit (0–6) indicates the level of protection against solid objects and dust.
✓The second digit (0–9K) indicates the level of protection against water ingress.
Understanding these two numbers makes it easier to select the appropriate connector for your application.
Typical Waterproof Ratings
IPX4 – Splash Water Protection
Protected against water splashing from any direction. Suitable for rain exposure and general outdoor use.
IPX5 – Water Jet Protection
Protected against water jets from any direction. Can withstand water sprayed through a 6.3 mm nozzle from all directions, such as heavy rain or routine washdowns.
IPX7 – Temporary Immersion Protection
Protected against temporary immersion in water. Typically tested by immersion in water up to 1 meter deep for 30 minutes.
IPX8 – Continuous Immersion Protection
Suitable for continuous immersion under conditions specified by the manufacturer. Provides a higher level of waterproof protection than IPX7 for prolonged underwater use.
Outdoor communication equipment often requires IPX7 or IPX8 protection because connectors may be exposed to heavy rain or temporary immersion.
When selecting a connector, it is important to evaluate the overall IP rating, including both dustproof and waterproof performance.
4 Key Factors for Choosing Waterproof Connectors
When choosing a waterproof connector for RF or high-frequency systems, consider the following four factors.
Select the Appropriate Impedance (50 Ohm or 75 Ohm)
One of the most important considerations is selecting the correct characteristic impedance.
Using a connector with the wrong impedance can increase signal reflections and transmission loss, reducing overall system performance.
In general:
✓50 Ohm connectors are widely used in wireless communications and RF measurement equipment.
✓75 Ohm connectors are commonly used in broadcasting, video transmission, and audio applications.
Choose the Right Waterproof Rating for the Installation Environment
Consider exactly where and how the connector will be used.
For example, waterproof protection may be required for:
・The connector mating interface
・The cable entry
・The panel mounting surface
Each location may require a different sealing method.
Choosing a higher IP rating than necessary can increase costs, so selecting the appropriate level of protection for the actual operating environment is important.
Select the Appropriate Connector Type and Size (BNC, SMA, N-Type, etc.)
The connector type depends on the available installation space, operating frequency, and equipment requirements.
For example:
・BNC connectors are commonly used in measurement equipment and video applications.
・SMA connectors are suitable for compact, high-frequency applications.
・N-Type connectors are often used in outdoor communication infrastructure because of their excellent weather resistance.
Also consider the waterproof structure around cable glands, cable entry points, and panel mounting areas when selecting a connector.
Consider Assembly Method and On-Site Installation
Because waterproof connectors often require precise assembly, ease of installation is another important factor.
Some connectors require soldering, while others use crimp or clamp termination methods that simplify field installation.
Improper assembly can significantly reduce waterproof performance, so selecting connectors that match the technician's skill level and installation environment is essential.
Tyclon's Waterproof Connector Solutions
Tyclon offers a comprehensive lineup of waterproof RF connectors designed for reliable signal transmission in demanding environments.
Our product range includes major connector interfaces such as N-Type, BNC, and SMA, all engineered to meet stringent waterproof performance requirements. These connectors are widely used in outdoor communication infrastructure, industrial equipment, and measurement systems.
By combining excellent RF performance with reliable sealing technology, Tyclon helps ensure stable signal transmission even in harsh operating environments.
To explore our waterproof connector lineup, please visit the page below.
Cold Shrink Tubes for Existing Equipment
Replacing every connector with a waterproof model is not always practical. For applications that require improving the waterproof performance of existing equipment, Cold Shrink Tubes provide a simple and reliable sealing solution.
Cold Shrink Tubes create a secure seal around connector joints without the need for heat, making them ideal for field installations, maintenance work, and confined spaces where heat-shrink tubing is difficult to use.
For more information, please visit the page below.
Choose the Right Waterproof Rating for the Installation Environment
Consider exactly where and how the connector will be used.
For example, waterproof protection may be required for:
・The connector mating interface
・The cable entry
・The panel mounting surface
Each location may require a different sealing method.
Choosing a higher IP rating than necessary can increase costs, so selecting the appropriate level of protection for the actual operating environment is important.
Select the Appropriate Connector Type and Size (BNC, SMA, N-Type, etc.)
The connector type depends on the available installation space, operating frequency, and equipment requirements.
For example:
・BNC connectors are commonly used in measurement equipment and video applications.
・SMA connectors are suitable for compact, high-frequency applications.
・N-Type connectors are often used in outdoor communication infrastructure because of their excellent weather resistance.
Also consider the waterproof structure around cable glands, cable entry points, and panel mounting areas when selecting a connector.
Consider Assembly Method and On-Site Installation
Because waterproof connectors often require precise assembly, ease of installation is another important factor.
Some connectors require soldering, while others use crimp or clamp termination methods that simplify field installation.
Improper assembly can significantly reduce waterproof performance, so selecting connectors that match the technician's skill level and installation environment is essential.
Conclusion
Waterproof connectors play a critical role in protecting electrical equipment from water, moisture, and other environmental contaminants, helping ensure the reliable operation of industrial systems and outdoor infrastructure.
When selecting a waterproof connector, it is important to consider more than just water resistance. Factors such as the required IP rating, characteristic impedance, installation environment, and ease of assembly should all be evaluated to ensure long-term system reliability.
Whether you're designing a new RF system or upgrading an existing installation, choosing the right connector and waterproof solution can significantly improve performance and durability.
