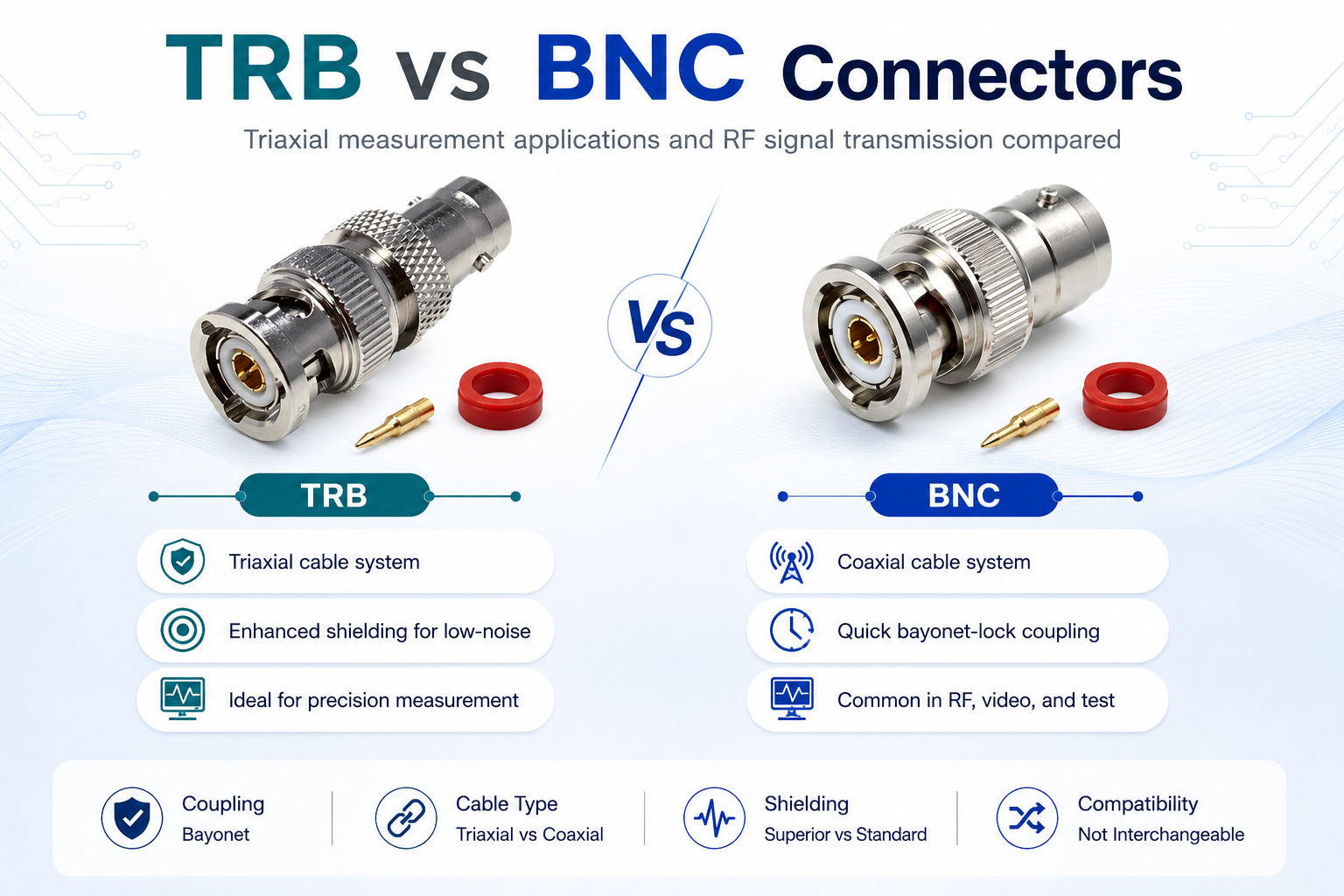

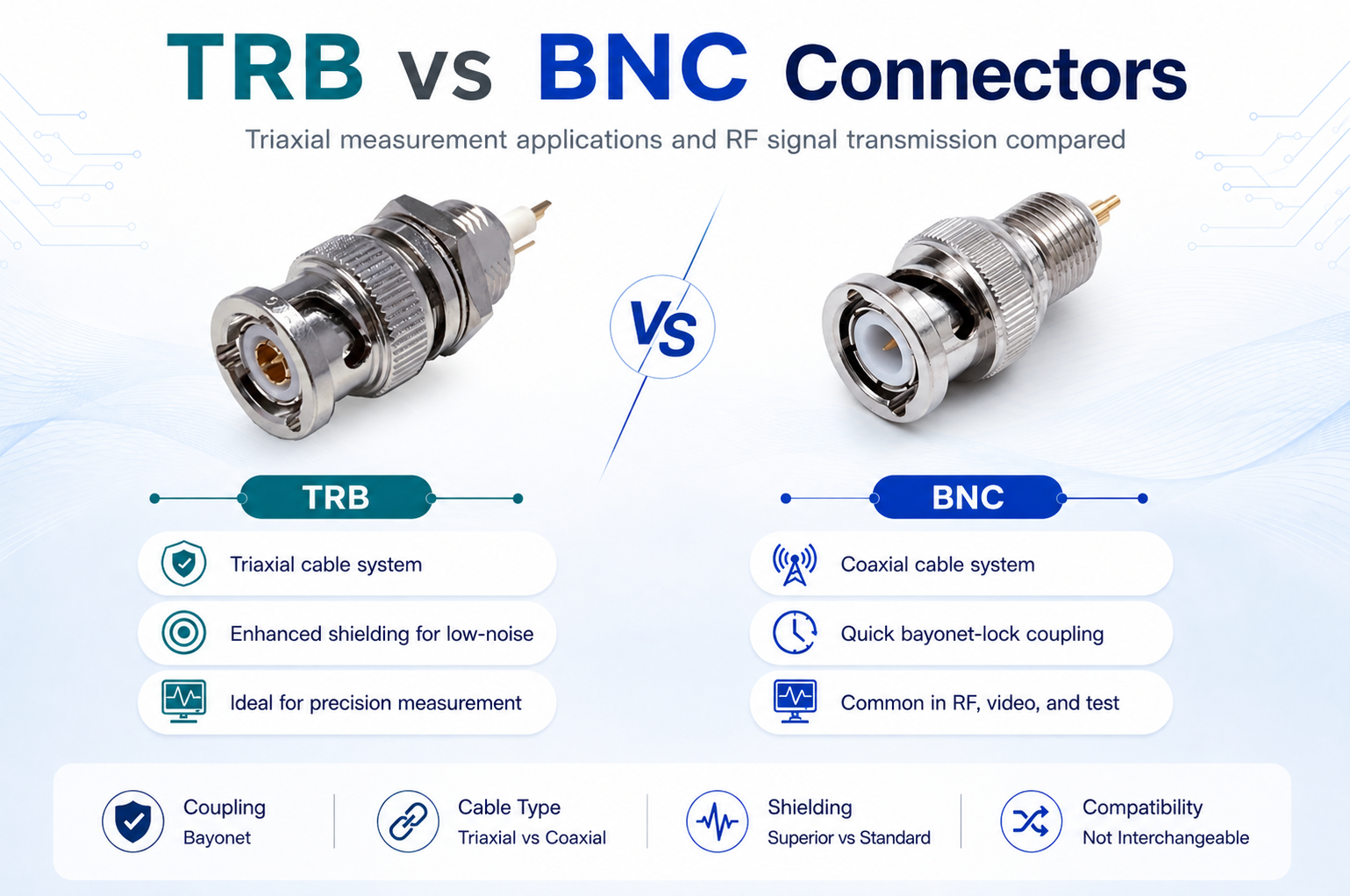

TRB vs BNC: Specifications, Key Differences, and Selection Guide
TRB vs BNC at a Glance — Quick Answer for Engineers
TRB and BNC connectors may look similar because they both use a bayonet-lock coupling mechanism. However, they are designed for different cable structures and electrical applications.
BNC connectors are intended for standard RF signal transmission over coaxial cables, while TRB connectors are designed for triaxial cable systems that require superior shielding and low-noise signal transmission.
Although they share a similar external appearance, TRB and BNC connectors are not mechanically or electrically interchangeable and should never be connected together.
TRB vs BNC at a Glance — Quick Answer for Engineers
Quick Summary
・Purpose: BNC – RF signal transmission / TRB – Triaxial signal transmission
・Coupling: Both use bayonet coupling
・Cable Type: BNC – Coaxial cable / TRB – Triaxial cable
・Shielding: TRB provides enhanced shielding for low-noise applications
・Compatibility: Never interchangeable
What Are TRB Connectors?
TRB (Triaxial Bayonet) connectors are designed for triaxial cable systems used in applications where low-noise signal transmission and superior shielding are essential.
Unlike standard BNC connectors, TRB connectors support triaxial cable construction with an additional shield and insulating layer, helping reduce electrical noise and signal leakage.
Typical applications include electrometers, laboratory instruments, semiconductor testing equipment, medical devices, and other precision measurement systems.
Specifications
・Cable Type: Triaxial Cable
・Coupling: Bayonet
・Shield Structure: Triaxial Shield
・Typical Use: Low-noise measurement systems
What Are BNC Connectors?
BNC (Bayonet Neill–Concelman) connectors are one of the most widely used RF coaxial connectors for signal transmission.
Their quick bayonet-lock mechanism allows fast connection and removal, making them ideal for communication systems, measurement equipment, video transmission, and laboratory instruments.
BNC connectors are available in both 50 Ohm and 75 Ohm versions depending on the application.
Specifications
・Impedance: 50 Ohm / 75 Ohm
・Coupling: Bayonet
・Cable Type: Coaxial Cable
・Typical Use: RF and video signal transmission
TRB vs BNC: Side-by-Side Specification Table
| Specification | TRB | BNC | Why It Matters |
|---|---|---|---|
| Primary Purpose | Low-noise Triaxial Signal Transmission | RF Signal Transmission | Determines the intended application. |
| Cable Type | Triaxial Cable | Coaxial Cable | Each connector is designed for a different cable structure. |
| Shield Structure | Three-Conductor (Triaxial) | Standard Coaxial Shield | Triaxial systems provide improved shielding against electrical noise. |
| Impedance | Application Dependent | 50 Ohm / 75 Ohm | Controlled impedance is essential for RF signal integrity. |
| Coupling Mechanism | Bayonet | Bayonet | Both connectors use a quick and secure bayonet-lock coupling system. |
| Noise Immunity | Excellent | Good | Triaxial construction provides superior noise rejection. |
| Compatibility | TRB Only | BNC Only | The connectors are not mechanically or electrically interchangeable. |
| Typical Applications | Electrometers, laboratory equipment, semiconductor testing, medical instrumentation | RF communication, oscilloscopes, video systems, test equipment | Each connector is optimized for different applications. |
Key Differences Explained
1. Cable Structure
The primary difference between TRB and BNC connectors is the cable they are designed to support.
TRB connectors are designed for triaxial cables with an additional shield and insulating layer, while BNC connectors are intended for conventional coaxial cables.
2. Shielding Performance
TRB connectors provide enhanced shielding performance through their triaxial cable design.
The additional shield helps minimize electromagnetic interference (EMI), signal leakage, and electrical noise, making TRB connectors ideal for precision measurement systems.
3. RF Performance
BNC connectors are impedance-controlled and optimized for RF signal transmission.
TRB connectors are primarily intended for low-noise instrumentation rather than high-frequency RF communication.
4. Typical Applications
TRB
・Electrometers
・Laboratory equipment
・Semiconductor testing systems
・Medical instrumentation
・Precision measurement equipment
BNC
・RF communication equipment
・Oscilloscopes
・Video systems
・Test instruments
Are TRB and BNC Compatible?
No.
Although TRB and BNC connectors share a similar bayonet-lock coupling mechanism, they are designed for different cable structures and electrical applications.
TRB connectors are intended for triaxial cable systems with an additional shielding conductor, while BNC connectors are designed for standard coaxial cables.
Using the wrong connector may prevent proper electrical connection and could result in unreliable performance or equipment damage.
How to Choose Between TRB and BNC
1. Choose TRB when…
・Low-noise signal transmission is required.
・Using triaxial cables.
・High shielding performance is important.
・Working with laboratory or semiconductor testing equipment.
・Precision measurements require minimal electrical interference.
2. Choose BNC when…
・RF signal transmission is required.
・Using standard coaxial cables.
・Working with oscilloscopes or test equipment.
・Video or communication systems require 50 Ohm or 75 Ohm connections.
Technical Specifications Summary
This comparison provides an overview of the key specifications and characteristics of TRB and BNC.
Review the table below to better understand their differences and determine which connector best fits your application requirements.
| Item | TRB | BNC |
|---|---|---|
| Cable Type | Triaxial Cable | Coaxial Cable |
| Shield Structure | Three-Conductor (Triaxial) | Standard Coaxial Shield |
| Coupling | Bayonet | Bayonet |
| Impedance | Application Dependent | 50 Ohm / 75 Ohm |
| Primary Application | Low-Noise Measurement | RF Signal Transmission |
| Typical Equipment | Electrometers, laboratory instruments, semiconductor testers, medical equipment | Oscilloscopes, communication equipment, video systems |
TRB vs BNC FAQs
QWhat does TRB stand for?
QWhat does TRB stand for?
TRB stands for Triaxial Bayonet, a connector designed for use with triaxial cables. It features a bayonet-lock coupling mechanism similar to BNC connectors but is intended for applications requiring enhanced shielding and low-noise signal transmission.
QCan TRB connect to BNC?
QCan TRB connect to BNC?
No.
Although TRB and BNC connectors have a similar external appearance and both use bayonet coupling, they are designed for different cable structures and electrical applications. They are not mechanically or electrically interchangeable.
QWhat is the main difference between TRB and BNC connectors?
QWhat is the main difference between TRB and BNC connectors?
The primary difference is the cable and signal environment they support.
TRB connectors are designed for triaxial cables with an additional shielding layer, making them suitable for precision measurement and low-noise applications. BNC connectors are designed for standard coaxial cables used in RF, video, and communication systems.
QWhy are TRB connectors used for low-noise measurements?
QWhy are TRB connectors used for low-noise measurements?
Triaxial cables include an additional conductive shield between the center conductor and the outer shield.
This extra shielding helps reduce electrical noise, leakage current, and electromagnetic interference (EMI), making TRB connectors ideal for sensitive measurement systems.
QAre TRB connectors suitable for RF applications?
QAre TRB connectors suitable for RF applications?
Generally, no.
TRB connectors are primarily designed for precision instrumentation and low-noise signal measurement rather than conventional RF communication. For most RF applications, BNC connectors are the more appropriate choice.
QWhy do TRB and BNC connectors look similar?
QWhy do TRB and BNC connectors look similar?
Both connectors use the same bayonet-lock coupling mechanism, which allows for quick and secure connections.
However, their internal construction, cable compatibility, and intended applications are completely different, so they should never be substituted for one another.
QWhen should I choose TRB instead of BNC?
QWhen should I choose TRB instead of BNC?
Choose a TRB connector when your application requires triaxial cables, superior shielding, or low-noise signal transmission.
For standard RF, video, communication, or general-purpose coaxial applications, a BNC connector is typically the better choice.
