TNC vs BNC : Specifications, Key Differences, and Selection Guide

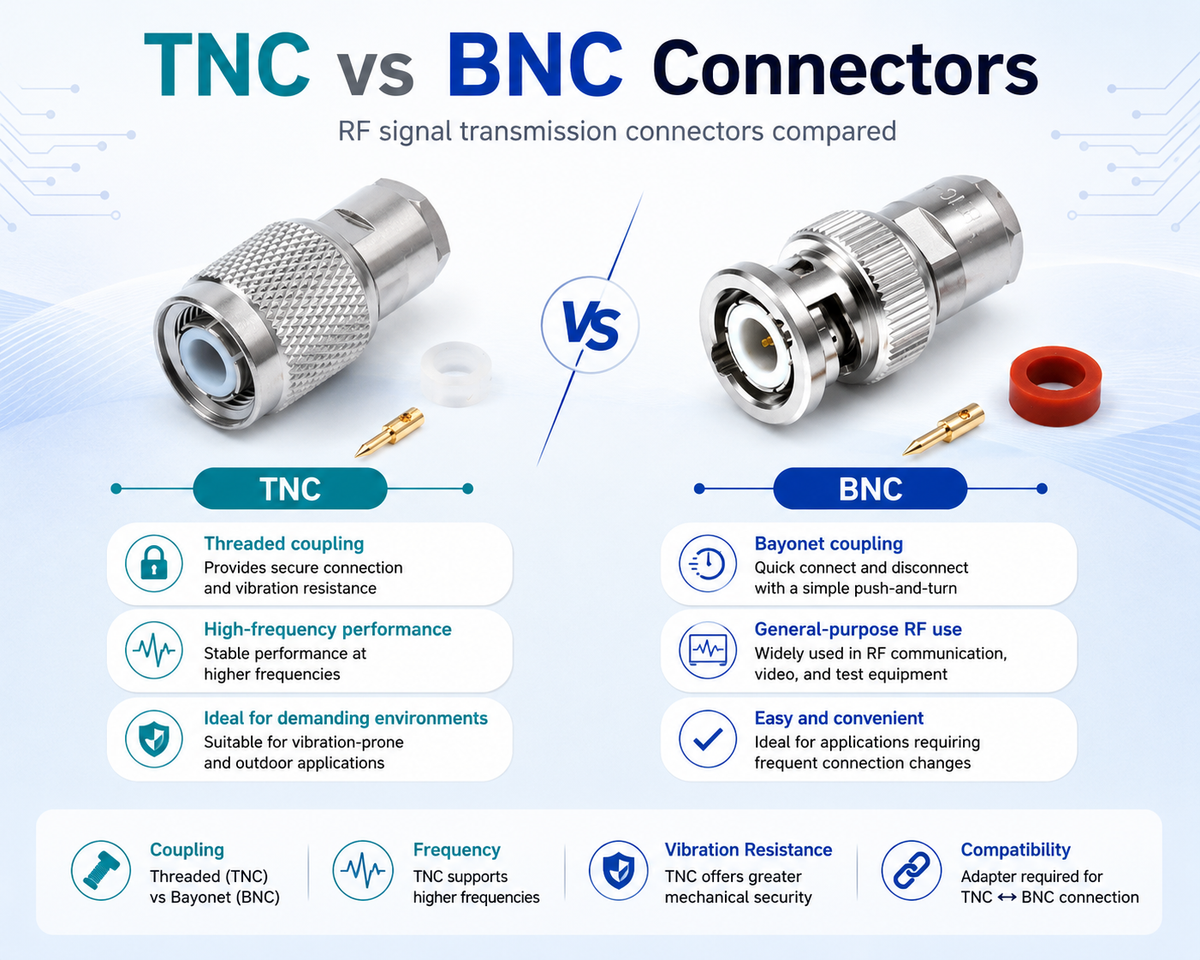

TNC vs BNC at a Glance — Quick Answer for Engineers
TNC and BNC connectors are similar in size and both support RF signal transmission. However, they differ in their coupling mechanism and performance in demanding environments.
BNC connectors use a quick bayonet-lock coupling, making them ideal for fast connection and disconnection. TNC connectors use a threaded coupling that provides greater mechanical stability and improved performance in high-frequency or high-vibration applications.
Although their internal structure is similar, TNC and BNC connectors are not directly interchangeable without an appropriate adapter.
Quick Summary
・Purpose: Both – RF signal transmission
・Coupling: TNC – Threaded / BNC – Bayonet
・Frequency: TNC supports higher-frequency applications
・Vibration Resistance: TNC provides a more secure connection
・Compatibility: Adapter required for connection
What Are TNC Connectors?
TNC (Threaded Neill–Concelman) connectors are RF coaxial connectors designed for applications requiring secure mechanical connection and reliable high-frequency performance.
Unlike BNC connectors, TNC connectors use a threaded coupling mechanism that helps maintain stable electrical contact under vibration, shock, and repeated movement.
They are commonly used in wireless communication equipment, industrial systems, test instruments, antennas, aerospace, and defense applications where dependable RF performance is essential.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded (7/16-28)
・Cable Type: Coaxial Cable
・Typical Use: High-frequency and high-vibration RF applications
What Are BNC Connectors?
BNC (Bayonet Neill–Concelman) connectors are one of the most widely used RF coaxial connectors for signal transmission.
Their quick bayonet-lock mechanism allows fast connection and removal, making them ideal for communication systems, measurement equipment, video transmission, and laboratory instruments.
BNC connectors are available in both 50 Ohm and 75 Ohm versions depending on the application.
Specifications
・Impedance: 50 Ohm / 75 Ohm
・Coupling: Bayonet
・Cable Type: Coaxial Cable
・Typical Use: RF and video signal transmission
Side-by-Side Specification Table
| Feature | TNC | BNC | Why It Matters |
|---|---|---|---|
| Primary Purpose | RF Signal Transmission | RF Signal Transmission | Both are designed for RF communication. |
| Coupling Mechanism | Threaded | Bayonet | Threaded coupling offers greater mechanical security, while bayonet coupling enables faster connection. |
| Impedance | 50 Ohm | 50 Ohm or 75 Ohm | BNC offers both RF and video impedance options. |
| Frequency Performance | Higher-frequency applications | General-purpose RF applications | TNC maintains stable performance at higher frequencies. |
| Vibration Resistance | Excellent | Good | Threaded coupling resists loosening in demanding environments. |
| Connection Speed | Slower | Faster | BNC allows quick connect and disconnect. |
| Compatibility | Adapter Required | Adapter Required | TNC and BNC cannot mate directly without an adapter. |
| Typical Applications | Wireless infrastructure, antennas, aerospace, industrial equipment, RF measurement | Communication equipment, oscilloscopes, video systems, laboratory instruments | Choose based on operating environment. |
Key Differences Explained
1. Coupling Mechanism
The primary difference between TNC and BNC connectors is the coupling method.
TNC connectors use a threaded coupling that provides a secure mechanical connection, while BNC connectors use a bayonet-lock mechanism for quick installation and removal.
2. Performance in High-Vibration Environments
The threaded design of TNC connectors helps prevent accidental loosening caused by vibration or movement.
This makes TNC connectors well suited for industrial, aerospace, wireless infrastructure, and outdoor installations.
3. Frequency Performance
Both connectors support RF signal transmission, but TNC connectors generally provide better performance at higher frequencies because the threaded coupling maintains more consistent electrical contact.
4. Typical Applications
TNC
・Wireless communication systems
・Antennas
・Cellular base stations
・Aerospace and defense
・Industrial RF equipment
BNC
・Oscilloscopes
・RF communication equipment
・Video systems
・Laboratory instruments
Are TNC and BNC Compatible?
Not directly.
Although TNC and BNC connectors share similar dimensions and are both RF coaxial connectors, they use different coupling mechanisms.
TNC connectors feature threaded coupling, while BNC connectors use a bayonet-lock design. As a result, they cannot be directly connected without a compatible TNC-to-BNC adapter.
How to Choose Between TNC and BNC
1. Choose TNC when…
・High-frequency performance is required.
・The installation is subject to vibration or movement.
・A secure threaded connection is preferred.
・Working with antennas, wireless infrastructure, or industrial RF systems.
2. Choose BNC when…
・RF signal transmission is required.
・Using standard coaxial cables.
・Working with oscilloscopes or test equipment.
・Video or communication systems require 50 Ohm or 75 Ohm connections.
Technical Specifications Summary
| Item | TNC | BNC |
|---|---|---|
| Coupling | Threaded | Bayonet |
| Impedance | 50 Ohm | 50 Ohm / 75 Ohm |
| Cable Type | Coaxial Cable | Coaxial Cable |
| Frequency Performance | Higher-frequency applications | General-purpose RF |
| Connection Security | Excellent | Good |
| Primary Application | Industrial, wireless, aerospace RF systems | RF communication, video, test equipment |
TNC vs BNC FAQs
QWhat does TNC stand for?
QWhat does TNC stand for?
TNC stands for Threaded Neill–Concelman. It is a threaded version of the BNC connector designed to provide a more secure mechanical connection and stable RF performance.
QWhat is the main difference between TNC and BNC connectors?
QWhat is the main difference between TNC and BNC connectors?
The main difference is the coupling mechanism. TNC connectors use a threaded coupling, while BNC connectors use a bayonet-lock coupling. TNC provides greater resistance to vibration, whereas BNC enables faster connection and disconnection.
QCan TNC and BNC connectors be connected directly?
QCan TNC and BNC connectors be connected directly?
No. TNC and BNC connectors use different coupling mechanisms and cannot mate directly. A compatible TNC-to-BNC adapter is required to connect them.
QIs TNC better than BNC for high-frequency applications?
QIs TNC better than BNC for high-frequency applications?
TNC connectors generally provide more stable performance at higher frequencies because the threaded coupling helps maintain consistent electrical contact. However, the actual performance depends on the specific connector design and product specifications.
QWhich connector is better for high-vibration environments?
QWhich connector is better for high-vibration environments?
TNC is usually the better choice for environments exposed to vibration, shock, or movement. Its threaded coupling helps prevent accidental loosening and maintains a secure connection.
QIs BNC easier to connect than TNC?
QIs BNC easier to connect than TNC?
Yes. BNC connectors use a bayonet-lock mechanism that allows quick connection and disconnection with a simple push-and-turn action. TNC connectors require the coupling nut to be threaded into place.
QWhen should I choose TNC instead of BNC?
QWhen should I choose TNC instead of BNC?
Choose TNC when you need a secure threaded connection, reliable performance in high-vibration environments, or stable RF transmission at higher frequencies. It is commonly selected for antennas, wireless infrastructure, industrial equipment, and aerospace applications.
