SMA vs. BNC Connectors: Specs, Frequency, and How to Choose for Your RF System
SMA vs. BNC at a Glance — Quick Answer for Engineers
SMA and BNC are both 50 Ω miniature coaxial RF connectors. SMA uses a threaded 1/4-inch barrel and supports DC to 18 GHz in a 7.9 mm hex (Typical) package; BNC uses a quarter-turn bayonet coupling, is typically rated for DC to 4 GHz, comes in both 50 Ω and 75 Ω versions, and is far larger at 14.5 mm OD (Typical). They are not directly mateable.
Headline differences at a glance:
- Size: SMA is the smaller of the two — 7.9 mm hex vs. 14.5 mm OD.
- Frequency: SMA reaches DC–18 GHz (26.5 GHz precision); BNC is rated DC–4 GHz.
- Coupling: SMA is threaded (vibration-resistant); BNC is bayonet quarter-turn (fast to swap).
- Impedance: SMA is essentially 50 Ω only; BNC is available in both 50 Ω and 75 Ω.
- Era: BNC was specified at Bell Labs in 1944; SMA was developed in the 1960s.
- Mechanical compatibility: Not interchangeable — adapters required, with caveats.
What Are SMA Connectors?
The SMA connector (SubMiniature version A) is a precision 50 Ω threaded coaxial connector developed in the 1960s for high-frequency defense and aerospace electronics. Its interface uses a 1/4-inch (6.35 mm) diameter, 36-thread-per-inch threaded barrel, mated under torque — a mechanically deterministic coupling that holds its electrical interface across vibration and temperature cycling.
Key specifications for a standard SMA connector:
- Outer diameter (male hex): 7.9 mm / 0.312 in (Typical)
- Threaded barrel: 1/4 in (6.35 mm), 36 TPI (Typical)
- Center pin diameter: 0.9 mm (Typical)
- Impedance: 50 Ω
- Frequency range: DC to 18 GHz, with precision variants to 26.5 GHz
- Standards: MIL-C-3901, IEC 60169-15, JEITA RC-5235
What Are BNC Connectors?
The BNC connector (commonly expanded as Bayonet Neill-Concelman) is one of the oldest production RF connector families still in active service. It was specified by Bell Laboratory drawing ESL 662916, dated March 2, 1944, and is generally credited to Paul Neill, who developed the original BNC prototype while working with the US Navy. The defining feature is its quick-release bayonet coupling: a quarter-turn engagement that mates and demates in seconds without tools.
Key specifications for a standard BNC connector:
- Outer diameter (male): 14.5 mm / 0.570 in (Typical)
- Outer diameter (female): 11.1 mm / 0.436 in (Typical)
- Impedance: 50 Ω and 75 Ω versions
- Frequency range (standard): DC to 4 GHz, usable but degraded to about 11 GHz for precision versions
- Voltage rating: up to about 500 V
- Standards: MIL-C-39012, JIS C 5412
BNC is the visual signature of laboratory test gear: oscilloscopes, signal generators, spectrum analyzers, and bench-top RF instruments almost universally use it because it is fast, low-tool, and cheap. It also dominates analog and serial digital video, CCTV, radio antennas, aerospace avionics, and nuclear instrumentation, and was the original physical layer for ARCnet and 10BASE2 Ethernet — an installed base that still drives replacement demand in legacy infrastructure.

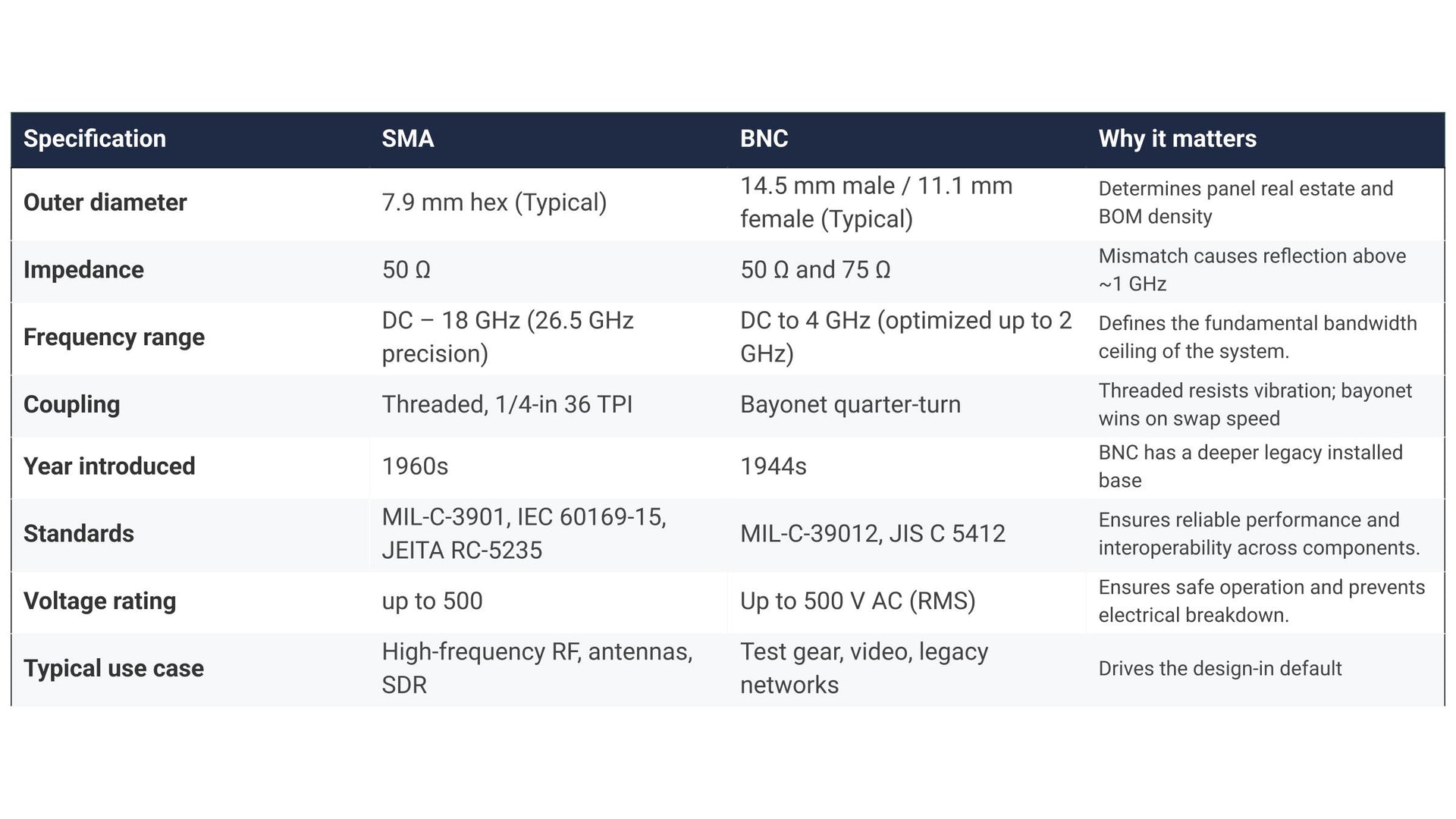

SMA vs. BNC: Side-by-Side Specification Table
Key Differences Explained — With Engineering Context
1. Coupling Mechanism: Threaded vs. Bayonet
The single most consequential difference between SMA and BNC is how they hold each other in place. SMA uses a threaded coupling under torque — when correctly tightened, the connection is mechanically deterministic and rotationally locked, which is why SMA dominates aerospace, automotive, and embedded RF where vibration and temperature cycling can walk a loose bayonet off the bench.
BNC's quarter-turn bayonet, by contrast, mates in roughly a second with no tool. That is precisely why every oscilloscope, signal generator, and lab patch panel in the world uses BNC: in a bench environment you swap probes hundreds of times a day, and the threaded SMA workflow simply does not scale. The trade-off shows up under sustained vibration — bayonets can rotate loose on their own. If a connector is in a moving vehicle or rotating machinery, choose SMA.
2. Frequency Reach — and Why “4 GHz” Is Not What It Sounds Like
Datasheets cite DC–18 GHz for standard SMA and DC–4 GHz for BNC. Tyclon's SMA connectors are designed for demanding high-frequency environments, with precision high-frequency test cables reaching up to 26.5 GHz. In contrast, Tyclon's 50 Ω BNC connectors are optimized to reliably deliver high performance from DC up to 2 GHz, with a maximum rating of 4 GHz.
The practical takeaway: if your design involves high-frequency wireless infrastructure, such as 5G test setups or anything beyond 4 GHz, BNC is not suitable, and SMA is the required choice. If you are working with radio communication, test instruments, or broadcast video systems, BNC is the ideal interface.
3. Impedance: 50 Ω vs. 50/75 Ω, and the Adapter Trap
SMA is essentially a single-impedance ecosystem: every connector you encounter will be 50 Ω. BNC is dual-impedance — both 50 Ω and 75 Ω versions exist, and they are visually almost identical. The 50 Ω version is the standard for RF and test; the 75 Ω version is the standard for broadcast video, CCTV, and SDI infrastructure.
This is the single most common SMA/BNC integration mistake: dropping a 75 Ω video-style BNC patch cable into a 50 Ω SMA test chain via an adapter. The impedance mismatch causes reflections and ripple in the passband — visible above ~1 GHz on a network analyzer, invisible at audio. Always confirm BNC impedance before using a converter cable in an RF chain.
4. Size, Board Footprint, and Vibration Resistance
SMA’s 7.9 mm hex (Typical) fits dense PCBs, portable handhelds, and modern embedded radio modules. BNC’s 14.5 mm OD (Typical) is built for hand-fit on instrument front panels — you can mate it wearing gloves, in the dark, on a moving truck. That is exactly the wrong geometry for an IoT board with a 30 mm × 50 mm footprint.
For vibration, the threaded SMA passes MIL-STD shock-and-vibration profiles without loosening when properly torqued. The bayonet BNC is not designed for sustained vibration; in transportation, military embedded, and rotating machinery, expect BNC to drift open over time.
5. Mating Cycles, Torque, and Service Life
Both connectors are designed for reliable performance, but they serve different operational needs. BNC features a bayonet coupling mechanism that ensures rapid, tool-free connection and disconnection. This makes it highly advantageous and efficient in high-swap environments like test and measurement labs.
SMA, available in durable stainless steel or brass bodies, utilizes a secure threaded coupling. While it requires more deliberate action to mate than a BNC, this threaded design provides superior stability and signal integrity. To maintain this secure connection and ensure optimal performance over the connector's service life, proper tightening of the threaded interface is essential.
6. Cost
In commodity volumes, BNC typically lands at a lower per-unit price than SMA. The bayonet shell is simpler to machine, the manufacturing tolerances are looser, and the supply base is enormous (every legacy oscilloscope vendor still ships them). SMA’s precision-threaded 36 TPI barrel and tighter center-pin geometry drive higher tooling and inspection cost, particularly for the stainless steel variants used in defense and aerospace.
That said, the gap is narrower than it was a decade ago. Commodity 50 Ω SMA in production volume is broadly competitive, and the cost of mis-specifying a connector (lost mating cycles, in-field RMA, redesign) typically dwarfs the unit-price delta.
RP-SMA: The Reverse-Polarity Variant You Need to Know About
If you have ever looked at the antenna jacks on a Wi-Fi router and assumed they were SMA — be aware that many of them, especially on consumer models, are actually RP-SMA (Reverse-Polarity SMA): same threaded shell, same 1/4-inch 36 TPI barrel, same outer dimensions — but the gender of the center contact is reversed. An RP-SMA female has a center pin; an RP-SMA male has a center socket. Visually, the shell looks identical to standard SMA.
RP-SMA exists for one reason: FCC Part 15 regulatory compliance. In the late 1990s, US regulators required consumer Wi-Fi manufacturers to use non-standard antenna interfaces so end-users could not trivially swap in high-gain antennas that exceeded transmit-power limits. RP-SMA became the de facto answer, and you will now find it on:
- Many Wi-Fi routers, access points, and mesh nodes
- Bluetooth modules and BLE gateways
- ZigBee and LoRaWAN gateways
- Many consumer-grade SDR dongles
The BOM caution is straightforward: RP-SMA does not mate with standard SMA. If you spec a standard SMA female but the upstream device is RP-SMA male, your antenna will not engage the center contact — the connector will thread together cleanly but carry no signal because both feature a center socket.
(Alternatively, mating a standard SMA male to an RP-SMA female will cause the two center pins to clash and potentially damage the connector.) Always confirm the exact polarity before ordering antennas and pigtails for wireless networking gear.
Can SMA and BNC Be Used Together? Adapter Direction and Pitfalls
Yes — SMA and BNC interoperate via adapters, but the integration has three real failure modes you should engineer around.
The adapter itself is straightforward. You can source various combinations, such as SMA-male to BNC-female, SMA-female to BNC-male, and same-gender variants, directly from Tyclon's lineup of Between-Series RF adapters.
While Tyclon's standard SMA connectors guarantee performance from DC to 18 GHz, their 50 Ω BNC connectors support a frequency range of DC to 4 GHz. Therefore, no matter the combination, you cannot exceed the fundamental bandwidth ceiling of the BNC interface — the BNC side will always be the limiting factor of the system.
Three pitfalls to avoid:
1. Impedance mismatch (the silent killer). Never insert a 75 Ω video-grade BNC cable in a 50 Ω SMA RF chain. The mismatch is invisible at DC and audio, but introduces reflections and ripple in the 1–4 GHz passband that will compress your link budget and confuse a network analyzer.
2. Torque transfer. When tightening an SMA-to-BNC adapter, never allow rotational force to pass through to the device's permanently-mounted SMA jack. Use a back-up wrench on the device-side connector. Allowing the body of the connector to rotate causes significant wear on the connector surfaces and can damage the joint.
3. RP-SMA confusion at the bench. RP-SMA looks identical to SMA externally. If you pick a standard SMA-male to BNC adapter for a Wi-Fi router antenna port (which is RP-SMA female), the threads will engage but the two center pins will clash, potentially causing physical damage. Confirm polarity before purchase.

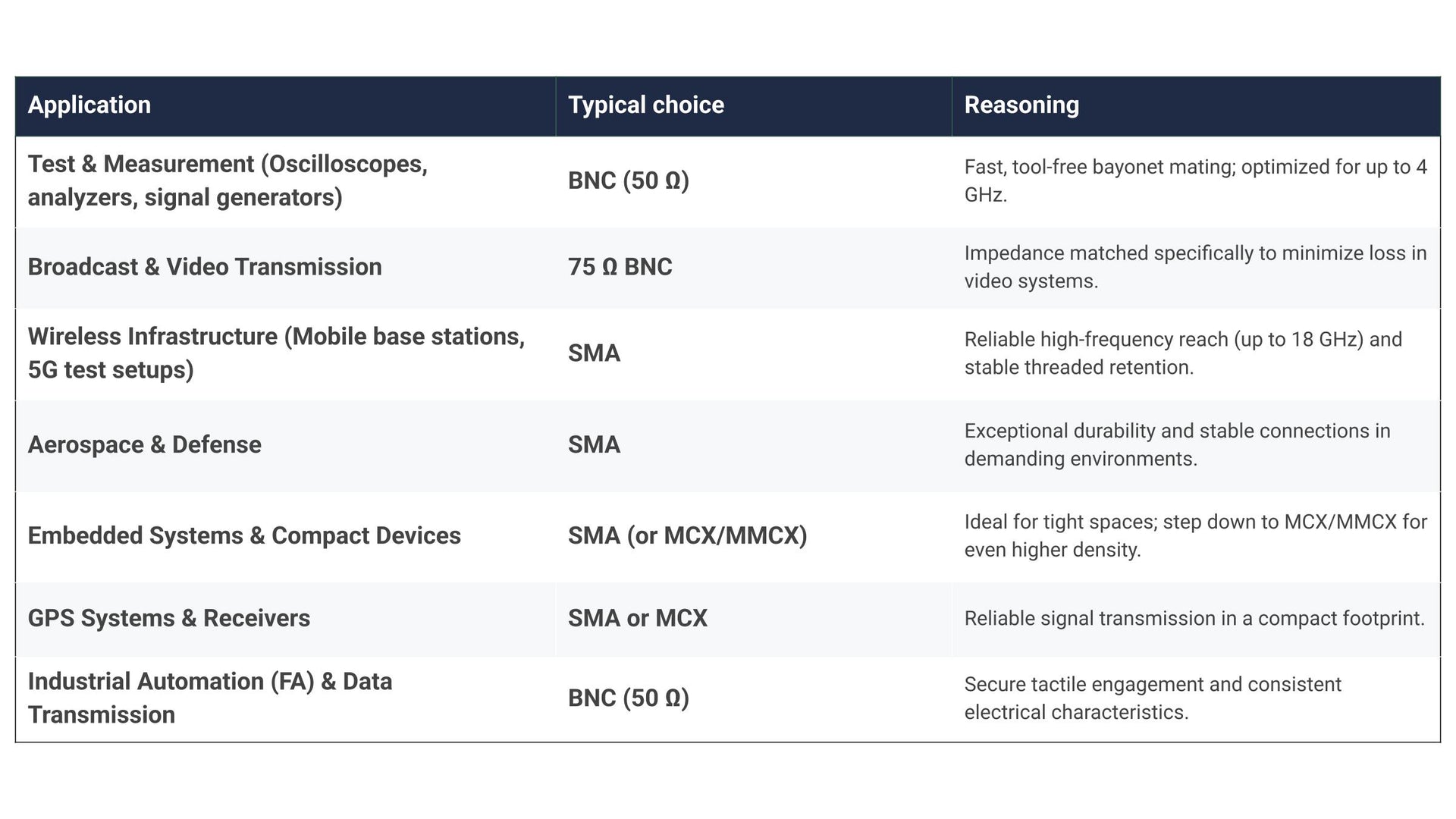

Which One Should You Choose? — Application Decision Matrix
SMA vs BNC FAQs
QIs SMA better than BNC?
QIs SMA better than BNC?
Neither is universally better. SMA is the better choice for high-frequency RF (above 4 GHz), vibration-prone deployments, and compact embedded boards. BNC is the better choice for laboratory test equipment, broadcast video, and any application where speed-of-swap matters more than absolute frequency reach. Match the connector to the dominant constraint of your application.
QWhat is the frequency range of an SMA connector?
QWhat is the frequency range of an SMA connector?
A standard SMA connector is rated from DC to 18 GHz. Precision variants extend to 26.5 GHz, and specialized millimeter-wave SMA-compatible interfaces (such as 2.92 mm and 3.5 mm) reach 40 GHz and beyond while maintaining backward mechanical mateability with standard SMA in many cases.
QWhat is the frequency range of a BNC connector?
QWhat is the frequency range of a BNC connector?
Standard 50 Ω BNC connectors are rated from DC to 4 GHz, with measurable return-loss degradation typically appearing above 1–2 GHz. Precision BNC variants extend usable performance to about 11 GHz, and 12G-SDI BNC (a 75 Ω specialty version) supports SDI video carriers up to 12 GHz.
QAre SMA and BNC interchangeable?
QAre SMA and BNC interchangeable?
No, SMA and BNC are not directly mateable — the coupling mechanisms (threaded vs. bayonet) and overall geometry are incompatible. You can bridge between the two with an SMA-to-BNC adapter, but the resulting interface is constrained by the BNC side’s frequency ceiling (typically 4 GHz) and impedance (verify 50 Ω vs. 75 Ω).
QWhat is the difference between RP-SMA and SMA?
QWhat is the difference between RP-SMA and SMA?
RP-SMA (Reverse-Polarity SMA) shares the exact same threaded shell, barrel, and outer dimensions as standard SMA, but the center-contact gender is reversed. RP-SMA female has a center pin; RP-SMA male has a center socket. RP-SMA is the FCC-mandated norm on Wi-Fi routers, access points, and most consumer wireless gear, and it will not mate with standard SMA without a polarity adapter.
QCan I use a 75 Ω BNC cable with a 50 Ω SMA system?
QCan I use a 75 Ω BNC cable with a 50 Ω SMA system?
No — the impedance mismatch introduces reflections and passband ripple that become progressively more significant above 10 MHz and are severely detrimental to signal integrity above 200 MHz. Always confirm the BNC cable is 50 Ω before patching it into an SMA-anchored RF chain. The 75 Ω variant is for broadcast video and CCTV, not RF test or wireless.
QWhy do oscilloscopes still use BNC?
QWhy do oscilloscopes still use BNC?
Oscilloscopes and bench RF instruments standardized on BNC in the mid-twentieth century, and the bayonet coupling fits the workflow: fast probe swaps, no torque wrench, robust to clumsy hands. Most bench measurements are well below the 4 GHz BNC ceiling, so there is no functional reason to migrate. The installed base of BNC-equipped instruments runs into the millions of units globally.
Conclusion: Pick the Connector That Matches the Constraint
SMA and BNC are not competitors — they are different answers to different design constraints. SMA wins on frequency (DC–18 GHz), board density (7.9 mm hex), and vibration tolerance (threaded coupling). BNC wins on swap speed (bayonet), bench ergonomics, dual-impedance flexibility (50 Ω and 75 Ω), and absolute unit cost. The right answer is rarely “either one” — it is whichever connector matches the dominant constraint of your application.
If you are sourcing SMA or BNC for a production design, Tyclon stocks a full range of both — including 50 Ω BNC, RP-SMA variants, and the cable assemblies that integrate them. Browse the SMA RF Connectors Guide or the BNC RF Connectors page, or contact our engineering team to confirm specifications for your application.
