SHV vs BNC: Specifications, Key Differences, and Selection Guide

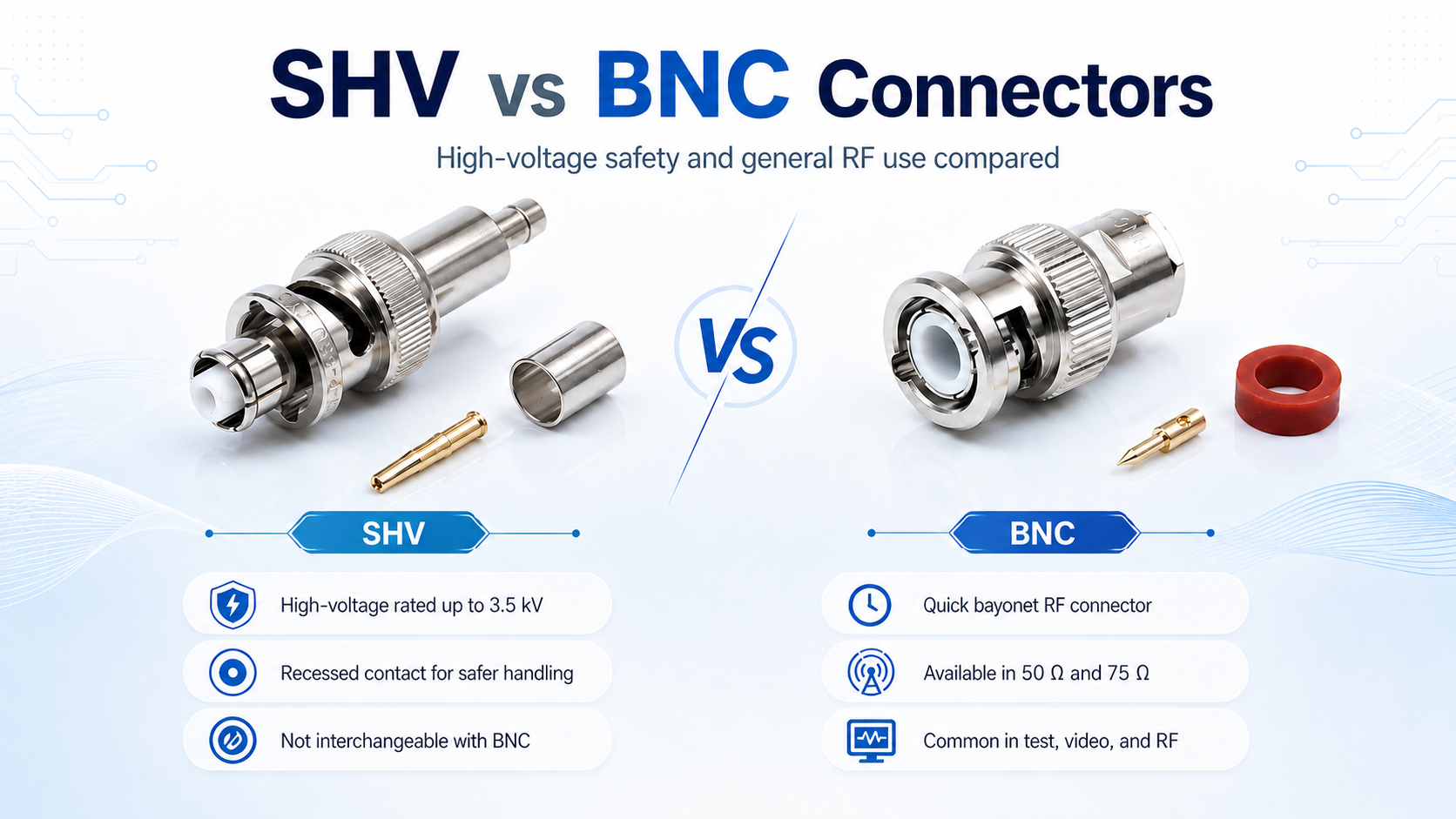

SHV vs BNC at a Glance — Quick Answer for Engineers
SHV and BNC connectors share a similar bayonet-coupling appearance, but they are designed for completely different purposes.
BNC connectors are intended for standard RF and signal transmission applications, while SHV connectors are specifically engineered for high-voltage systems where operator safety is essential.
Although they look alike, SHV and BNC connectors are not mechanically or electrically compatible and should never be mated together.
Quick Summary
・Purpose: BNC = RF signals / SHV = High voltage
・Coupling: Both use bayonet coupling
・Voltage: SHV supports much higher voltage
・Safety: SHV has recessed contacts
・Compatibility: Never interchangeable
・Impedance: BNC = 50/75 Ohm / SHV = Non-matching
What Are SHV Connectors?
SHV (Safe High Voltage) connectors are coaxial connectors specifically designed for high-voltage applications where operator safety and electrical insulation are critical.
Their recessed center contact and extended insulating sleeve reduce the risk of accidental contact with energized conductors while maintaining a secure bayonet-lock connection.
Typical applications include laboratory equipment, medical devices, particle detectors, and high-voltage power supplies.
Specifications
・Rated Voltage: up to AC 3.5 kV
・Withstand Voltage: AC 5 kV (1 minute)
・Coupling: Bayonet
・Impedance: Non-matching
What Are BNC Connectors?
BNC (Bayonet Neill-Concelman) connectors are one of the most widely used RF coaxial connectors for signal transmission.
Their quick bayonet-lock mechanism allows fast connection and removal, making them ideal for communication systems, measurement equipment, video transmission, and laboratory instruments.
BNC connectors are available in both 50 Ohm and 75 Ohm versions depending on the application.
Specifications
・Impedance: 50 Ohm / 75 Ohm
・Coupling: Bayonet
・Frequency: Depends on connector type
・Typical Voltage: Low-voltage RF applications
Side-by-Side Comparison Table
| Specification | SHV | BNC | Why it matters |
|---|---|---|---|
| Primary Purpose | High Voltage Applications | RF Signal Transmission | Determines the intended application and environment. |
| Voltage Rating | Up to AC 3.5 kV (Withstand: AC 5 kV) | Typically Low Voltage (RF Applications) | SHV is designed for high-voltage safety, BNC is not. |
| Impedance | Non-matching | 50 Ohm / 75 Ohm | Important for RF matching and signal integrity. |
| Coupling Mechanism | Bayonet | Bayonet | Both use quick bayonet coupling. |
| Contact Design | Recessed Center Contact | Exposed Center Contact | SHV design helps prevent accidental contact and electrical shock. |
| Compatibility | SHV Only | BNC Only | Cannot be mated together. Using the wrong connector can be dangerous. |
| Typical Applications | High-voltage power supplies, medical equipment, particle detectors, laboratory devices | RF equipment, oscilloscopes, video systems, communication devices, test instruments | Each connector is optimized for different use cases. |
Key Differences Explained
1. Safety Design
The biggest difference is operator safety.
SHV connectors feature recessed contacts and extended insulation that prevent accidental contact with live conductors.
BNC connectors do not include these protective features because they are intended for standard RF signal transmission rather than high-voltage applications.
2. Voltage Capability
SHV connectors are specifically engineered for high-voltage systems.
BNC connectors are intended for low-voltage RF signals and should never be used where high-voltage insulation is required.
3. Frequency, Impedance, and Signal Integrity
BNC connectors are impedance-controlled and available in 50 Ohm and 75 Ohm versions.
SHV connectors prioritize insulation and operator safety rather than impedance matching, making them suitable for high-voltage power and measurement applications instead of RF signal transmission.
4. Typical Applications
BNC
・Oscilloscopes
・RF equipment
・Video systems
・Test instruments
SHV
・X-ray equipment
・High-voltage power supplies
・Particle detectors
・Nuclear instrumentation
・Laboratory equipment
Are SHV and BNC Compatible?
No.
Although SHV and BNC connectors share a similar bayonet-lock appearance, they are intentionally designed to prevent mating.
The SHV connector uses a recessed contact and longer insulating sleeve, making it mechanically incompatible with standard BNC connectors.
Using the wrong connector can create a serious electrical safety hazard and should always be avoided.
How to Choose Between SHV and BNC
1. Choose SHV when…
・High voltage is involved.
・Operator safety is critical.
・Working with laboratory or medical equipment.
・Electrical insulation is the highest priority.
2. Choose BNC when…
・Standard RF signal transmission is required.
・Using oscilloscopes or measurement equipment.
・Working with communication or video systems.
・A 50 Ohm or 75 Ohm impedance-controlled connection is needed.
Technical Specifications Summary
This comparison provides an overview of the key specifications and characteristics of SHV and BNC.
Review the table below to better understand their differences and determine which connector best fits your application requirements.
| Item | SHV | BNC |
|---|---|---|
| Coupling | Bayonet | Bayonet |
| Impedance | Non-matching | 50 Ohm / 75 Ohm |
| Voltage | Up to AC 3.5 kV | Low-voltage RF |
| Safety Contact | Recessed | Standard |
| Typical Use | High Voltage | RF & Video |
SHV vs BNC FAQs
QWhat does SHV stand for?
QWhat does SHV stand for?
SHV stands for Safe High Voltage. It is a coaxial connector specifically designed for applications that require high-voltage insulation and enhanced operator safety. Its recessed center contact and extended insulating sleeve help prevent accidental contact with energized conductors, making it widely used in laboratory, medical, and scientific equipment.
QCan SHV connect to BNC?
QCan SHV connect to BNC?
No. Although SHV and BNC connectors share a similar bayonet-style coupling and may look alike, they are intentionally designed to be mechanically incompatible. This prevents accidental connection of high-voltage equipment to standard RF connectors, reducing the risk of electrical shock and equipment damage.
QWhich connector is safer?
QWhich connector is safer?
For high-voltage applications, SHV connectors are significantly safer than standard BNC connectors. Their recessed center contact and longer insulating sleeve minimize the risk of accidental contact with live conductors. BNC connectors are designed for RF signal transmission and do not include these high-voltage safety features.
QCan BNC carry high voltage?
QCan BNC carry high voltage?
Standard BNC connectors are intended for low-voltage RF signal transmission and should not be used in high-voltage applications. If your equipment operates at high voltage, an SHV connector is the appropriate choice because it provides the insulation and safety features required for reliable operation.
QWhy do SHV and BNC look similar?
QWhy do SHV and BNC look similar?
Both SHV and BNC connectors use a quick bayonet-lock coupling, which makes their external appearance similar. However, the internal contact structure, insulation design, and intended operating voltage are completely different. Despite their similar appearance, they should never be used interchangeably.
QIs SHV an RF connector?
QIs SHV an RF connector?
Yes. SHV is a type of coaxial RF connector, but it is optimized for high-voltage applications rather than conventional RF signal transmission. It is commonly used in high-voltage test equipment, medical devices, particle detectors, and laboratory power supplies where electrical safety is critical.
QWhen should I choose SHV instead of BNC?
QWhen should I choose SHV instead of BNC?
Choose an SHV connector when your application involves high voltage or requires enhanced electrical safety. For standard RF communication, video transmission, and measurement equipment, a BNC connector is typically the better choice. Selecting the correct connector helps ensure reliable performance while maintaining operator safety.
