SHV Adapters: Types, Structure, and Uses Explained

SHV connectors are designed with dedicated insulator structures and a bayonet coupling mechanism to ensure safe and reliable mating.

- Bayonet Lock: After insertion, a slight twist securely locks the connector in place.

- Safety Design: The center contacts are recessed to prevent accidental touch and ensure that the ground contact is made before the power contact.

- Non-Intermateability: SHV connectors are intended for use exclusively with matching SHV interfaces. They are not compatible with BNC or MHV connectors, effectively eliminating the risk of accidental connection to low-voltage equipment.

An SHV adapter is a high-voltage coaxial connector used to directly mate SHV interfaces, enabling secure connection without the need for a cable assembly. This direct-mount approach is instrumental in preserving insulation integrity and maintaining stable electrical characteristics within high-voltage systems.

- T-Adapter (Branching): Used to split a signal path.

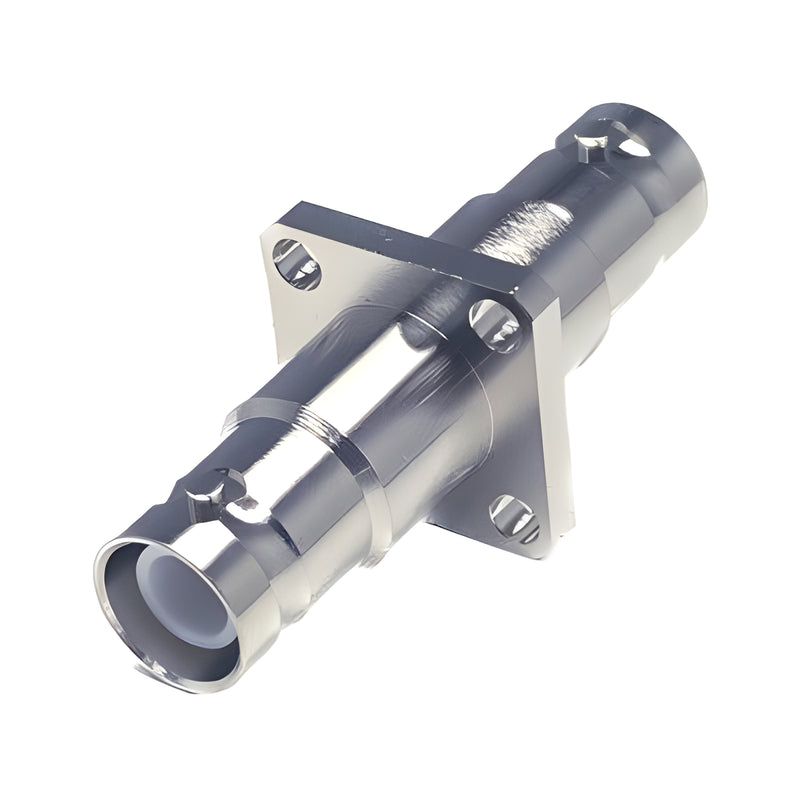

- Flange/In-Series Adapter: Used for panel mounting or joining two plugs.

SHV adapters are used to provide flexible connectivity and signal distribution in high-voltage environments without the need for custom cable assemblies.

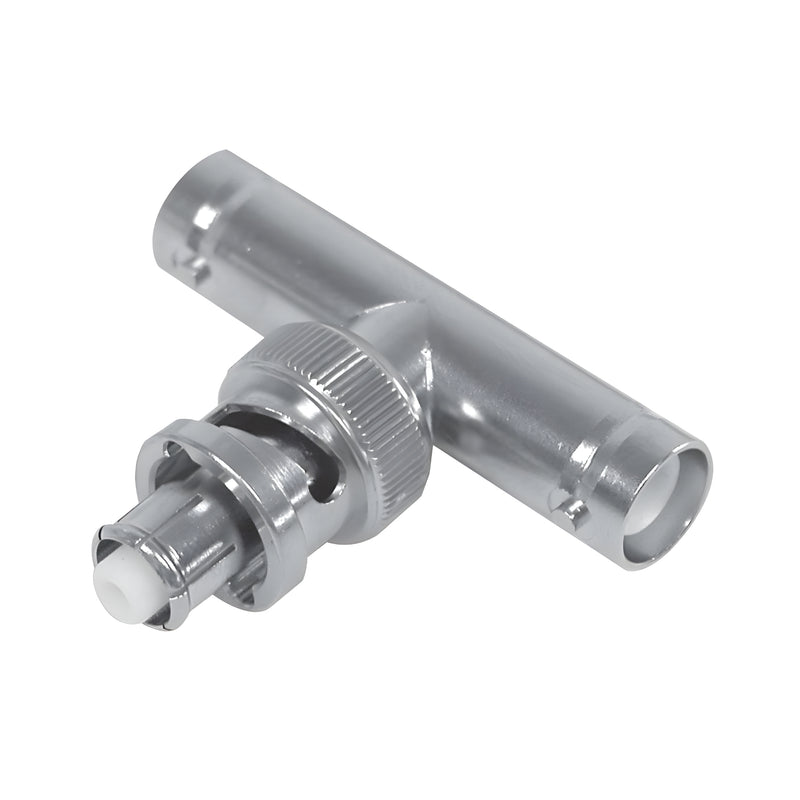

Signal Branching (T-Type Adapters): The T-type adapter (e.g., SHV-008) is used to branch a single high-voltage SHV connection into two paths. This allows one signal source to be simultaneously connected to multiple devices or measurement points—such as a power supply feeding two separate detectors—while maintaining safe insulation and secure locking.

Connection and Extension (In-Series Adapters): The in-series Jack-to-Jack adapter (e.g., SHV-007) is primarily used to join two SHV plugs together. This configuration is essential for extending cable lengths or transitioning between equipment interfaces where a direct connection is required, ensuring consistent electrical stability across the high-voltage line.

These configurations are commonly used in test setups, research laboratories, and medical instrumentation where reliable signal distribution and secure interface transitions are critical for operational safety.
