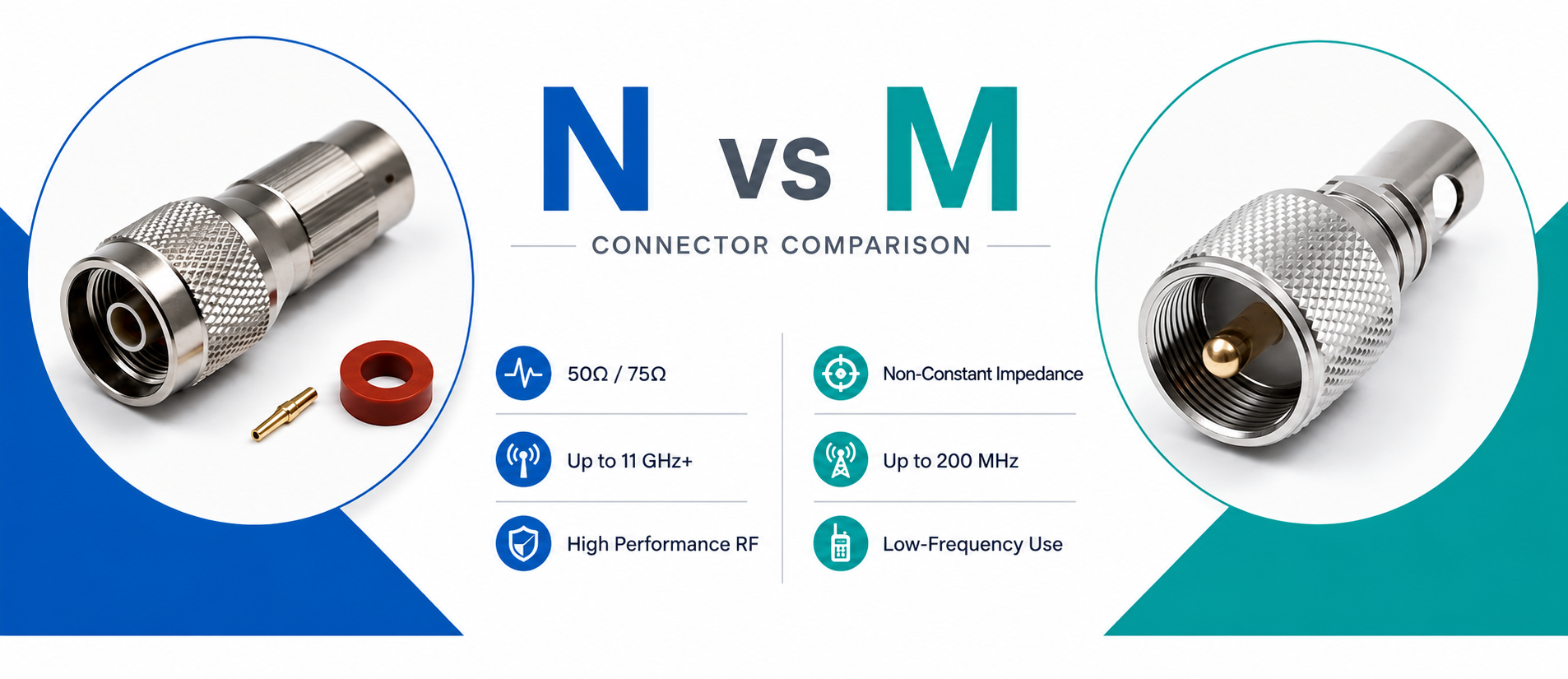

N vs M: Specifications, Key Differences, and Selection Guide
N vs M at a Glance — Quick Answer for Engineers
N and M connectors both use threaded coupling for secure cable connections, but they are designed for very different RF applications.
N connectors are precision RF connectors with controlled impedance for high-frequency signal transmission, while M connectors (UHF connectors) are intended for low-frequency communication where strict impedance matching is not required.
Although both are threaded RF connectors, they are optimized for different frequency ranges and performance requirements.
Quick Summary
・Purpose: N – High-frequency RF / M – Low-frequency RF
・Coupling: Both use threaded coupling
・Impedance: N – 50 Ohm or 75 Ohm / M – Non-constant impedance
・Frequency: N – Up to 11 GHz+ / M – Up to 200 MHz
・Compatibility: Not interchangeable
What Are N Connectors?
N connectors are one of the most widely used RF coaxial connectors for medium- to high-frequency applications.
Their constant impedance, excellent RF performance, and weather-resistant threaded coupling make them suitable for communication equipment, antennas, measurement systems, and outdoor installations.
Specifications
・Impedance: 50 Ohm / 75 Ohm
・Coupling: Threaded
・Frequency: Up to 11 GHz (50 Ohm) / Up to 3 GHz (75 Ohm)
・Typical Use: RF communication
What Are M Connectors?
M connectors (also known as UHF connectors) are coaxial connectors designed for low-frequency RF applications where precise impedance matching is not essential.
Their simple and durable construction makes them a popular choice for amateur radio, legacy communication equipment, and basic RF systems operating below 200 MHz.
Specifications
・Impedance: Non-constant
・Coupling: Threaded (M16-P1)
・Frequency Range: Up to 200 MHz
・Typical Use: Amateur radio and low-frequency communication
N vs M Side-by-Side Specification Table
| Specification | N | M | Why It Matters |
|---|---|---|---|
| Primary Purpose | High-frequency RF transmission | Low-frequency RF communication | Designed for different operating frequencies. |
| Impedance | 50 Ohm or 75 Ohm | Non-constant impedance | Controlled impedance is essential for high-frequency performance. |
| Frequency Range | Up to 11 GHz or higher | Up to 200 MHz | Determines suitable operating frequency. |
| Coupling Mechanism | Threaded | Threaded (M16-P1) | Both provide secure screw-lock connections. |
| Weather Resistance | Suitable for outdoor applications | Primarily indoor or general communication equipment | N connectors offer better environmental performance. |
| Typical Applications | Antennas, wireless infrastructure, RF measurement, broadcast | Amateur radio, legacy communication equipment, basic RF systems | Each connector is optimized for different applications. |
| Compatibility | N Only | M Only | The connectors are not interchangeable. |
Key Differences Explained
1. Frequency Performance
N connectors maintain constant impedance for stable RF transmission at microwave frequencies.
M connectors are intended for lower-frequency operation and become less efficient as frequency increases.
2. Impedance Design
N connectors are manufactured with controlled 50 Ohm or 75 Ohm impedance.
M connectors have non-matching impedance, making them unsuitable for precision RF systems.
3. Outdoor Durability
N connectors feature a robust threaded interface suitable for outdoor installations.
They are commonly used in antennas, base stations, and communication infrastructure where reliable environmental performance is required.
4. Typical Applications
N
・Wireless communication
・Antennas
・RF measurement
・Broadcast equipment
・Outdoor RF systems
M
・Amateur radio
・Legacy RF equipment
・Basic communication systems
・Low-frequency RF devices
Are N and M Compatible?
No.
Although both connectors use threaded coupling, they have different interface dimensions and electrical characteristics.
They are designed for different frequency ranges and cannot be mated together safely or reliably.
How to Choose Between N and M
1. Choose N when…
・High-frequency performance is required.
・Controlled impedance is important.
・Outdoor installations are involved.
・Using antennas or RF measurement equipment.
・Reliable RF performance is essential.
2. Choose M when…
・Operating below 200 MHz.
・Working with amateur radio equipment.
・Using legacy communication systems.
・Cost-effective RF connections are sufficient.
・High-frequency performance is not required.
Technical Specifications Summary
The table below summarizes the key technical differences between N and M connectors. While both use threaded coupling, N connectors are designed for high-frequency RF systems with controlled impedance, whereas M connectors are intended for lower-frequency communication where precise impedance matching is less critical. Understanding these differences can help you select the appropriate connector for your application.
| Item | N | M |
|---|---|---|
| Primary Application | High-Frequency RF Systems | Low-Frequency Communication |
| Impedance | 50 Ohm or 75 Ohm | Non-constant impedance |
| Frequency Range | Up to 11 GHz or higher | Up to 200 MHz |
| Coupling | Threaded | Threaded (M16-P1) |
| Weather Resistance | Excellent | Standard |
| Typical Equipment | Antennas, communication systems, RF test equipment | Amateur radios, legacy communication devices |
| Compatibility | N Only | M Only |
N vs M FAQs
QWhat is the main difference between N and M connectors?
QWhat is the main difference between N and M connectors?
The primary difference is their intended operating frequency and impedance design. N connectors provide controlled impedance for high-frequency RF applications, while M connectors are designed for lower-frequency communication where precise impedance matching is not required.
QCan M connectors replace N connectors?
QCan M connectors replace N connectors?
No. Although both connectors use threaded coupling, they have different mechanical dimensions and electrical characteristics. They are not compatible and should not be used interchangeably.
QWhich connector is better for high-frequency applications?
QWhich connector is better for high-frequency applications?
N connectors are the better choice for high-frequency RF systems. Their constant impedance design minimizes signal loss and reflections, making them suitable for microwave communications, antennas, and test equipment.
QWhy do M connectors have non-constant impedance?
QWhy do M connectors have non-constant impedance?
M connectors were originally developed before constant-impedance RF connectors became common. They perform well at lower frequencies but are not intended for precision high-frequency signal transmission.
QWhat applications are M connectors commonly used for?
QWhat applications are M connectors commonly used for?
M connectors are widely used in amateur radio equipment, CB radios, legacy communication systems, and other RF applications operating below approximately 200 MHz.
QAre N connectors suitable for outdoor installations?
QAre N connectors suitable for outdoor installations?
Yes. N connectors feature a durable threaded coupling and excellent environmental resistance, making them ideal for outdoor antennas, wireless infrastructure, and communication systems.
QWhen should I choose an N connector instead of an M connector?
QWhen should I choose an N connector instead of an M connector?
Choose an N connector whenever your application requires high-frequency performance, controlled impedance, low signal loss, or reliable outdoor operation. M connectors are better suited for lower-frequency communication systems where these requirements are less critical.
