N Receptacles: Types, Structure, and Uses Explained

N connectors use a secure threaded coupling mechanism, specifically a 5/8-24 UNEF thread, that ensures a firm and stable connection. Unlike push-on or bayonet systems, this screw-on design prevents accidental disconnection and resists loosening due to vibration or environmental stress. As the female interface, the N receptacle features external threads and is designed to mate with a male plug.

It is critical to note that N receptacles are available in both 50 ohms and 75 ohms impedance variants. Selecting the correct impedance is essential to minimize signal reflection and maintain system performance. Because of structural differences in the center contact, 50 ohms and 75 ohms connectors are not interchangeable and will not mate.

An N receptacle features a mating interface on one side. The opposite end mounts to an equipment panel or chassis, or terminates to internal wiring. Printed circuit board receptacles are a separate type and mount directly to the board. Tyclon's product line is categorized based on interface structures and impedance options:

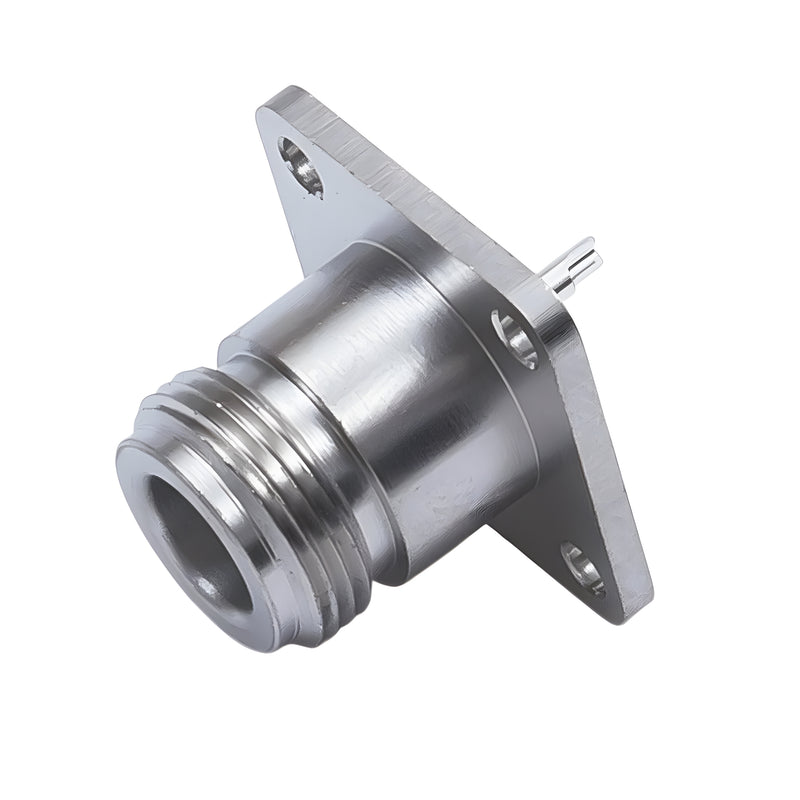

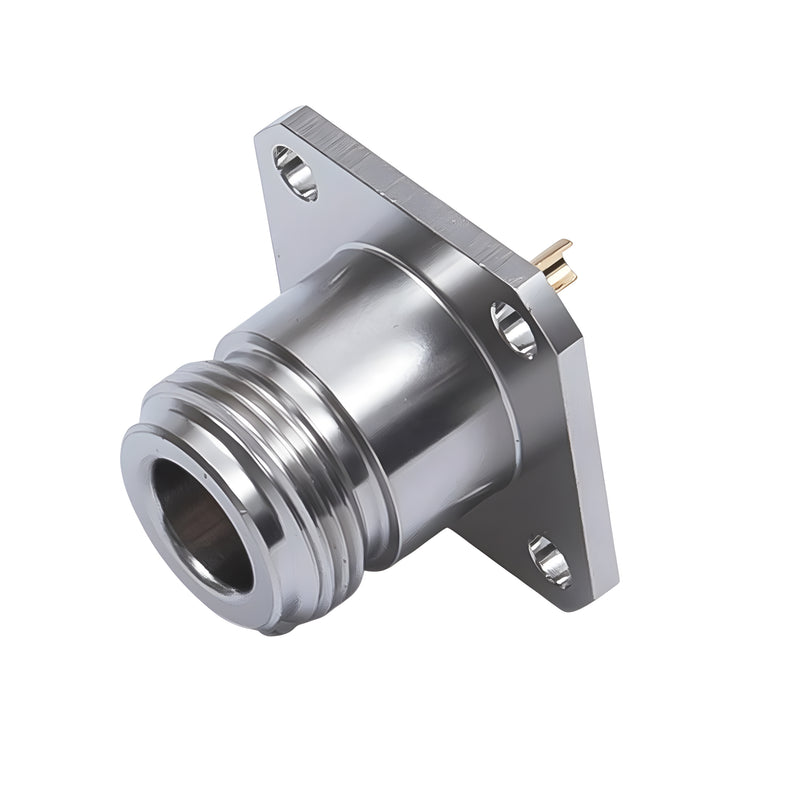

N Receptacles: Standard N receptacles feature a female mating interface. Tyclon provides these in both 50 ohms and 75 ohms impedance options to ensure precise system matching. The 50 ohms models are designed for radio frequency communication systems, wireless infrastructure, and testing applications where power handling is critical. In contrast, the 75 ohms models are optimized specifically for broadcast systems, video signal transmission, and satellite communications to prevent signal reflection.

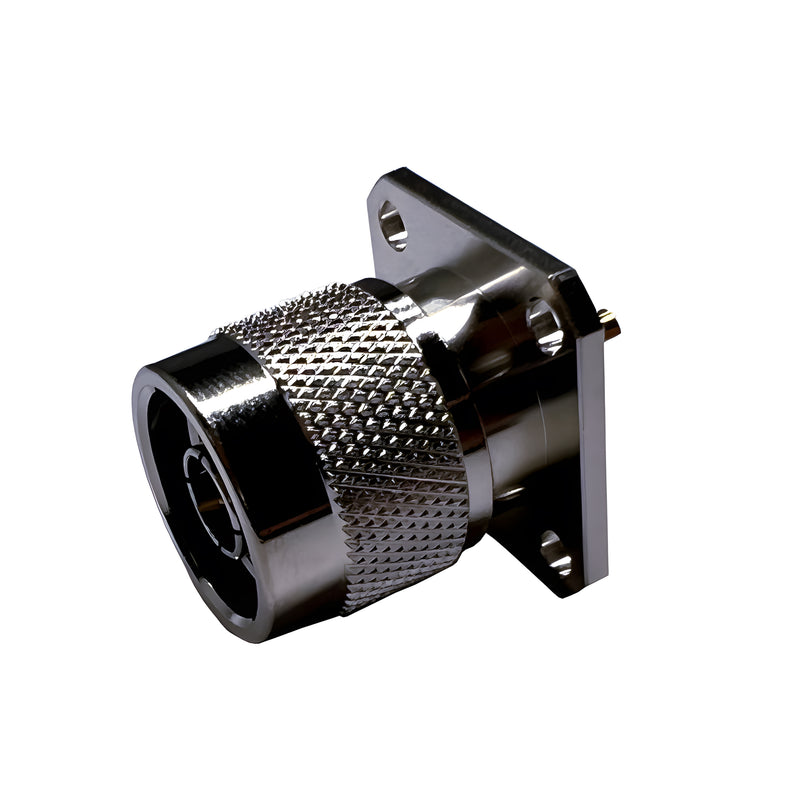

Plug Receptacles: Tyclon also offers plug receptacles, which feature a male mating interface instead of a female interface. These are designed to support specific connection requirements and diverse hardware system designs.

A receptacle features a female interface and can be used for direct cable termination. However, because it does not mechanically secure to the cable's outer jacket, the cable retention strength is limited compared with a jack. For this reason, receptacles are most commonly mounted to an enclosure or chassis and used for internal wiring within equipment, where mechanical stress on the cable is minimized.

Thanks to their secure threaded coupling, N receptacles are widely used in professional and industrial fields, especially in outdoor environments subject to vibration, moisture, and temperature variations:

・Mobile Communication: Integrated into mobile communication base stations and wireless infrastructure.

・Broadcasting and Video: Utilized in broadcast equipment, broadcast studio systems, cable television infrastructure, and video distribution systems.

・Testing: Used as secure interfaces in test and measurement equipment.

・Industrial and Defense: Applied in industrial and outdoor communication systems, as well as radar and defense-related applications.
