N Plug (Male): Types, Structure, and Uses Explained

The N series utilizes a 5/8-24 Unified Extra Fine threaded coupling mechanism, ensuring a secure, vibration-resistant, and weatherproof connection. An N Plug (male) is characterized by its internal coupling threads and a protruding center conductor pin. To create a complete connection, it mates with a female jack, which features external threads and a center contact socket.

Unlike push-on or bayonet types, the screw-on design prevents accidental disconnection and maintains consistent electrical contact even in environments with heavy vibration or physical movement. 50 ohm and 75 ohm N Plugs (male) are not intermateable. Attempting to connect them may result in severe signal loss or permanent hardware damage due to differences in their internal dimensions.

Tyclon offers a range of N Plug (male) configurations designed to accommodate different coaxial cable types and assembly methods. To ensure consistent performance, the wiring methods support soldering, crimping, and clamping for flexible installation options.

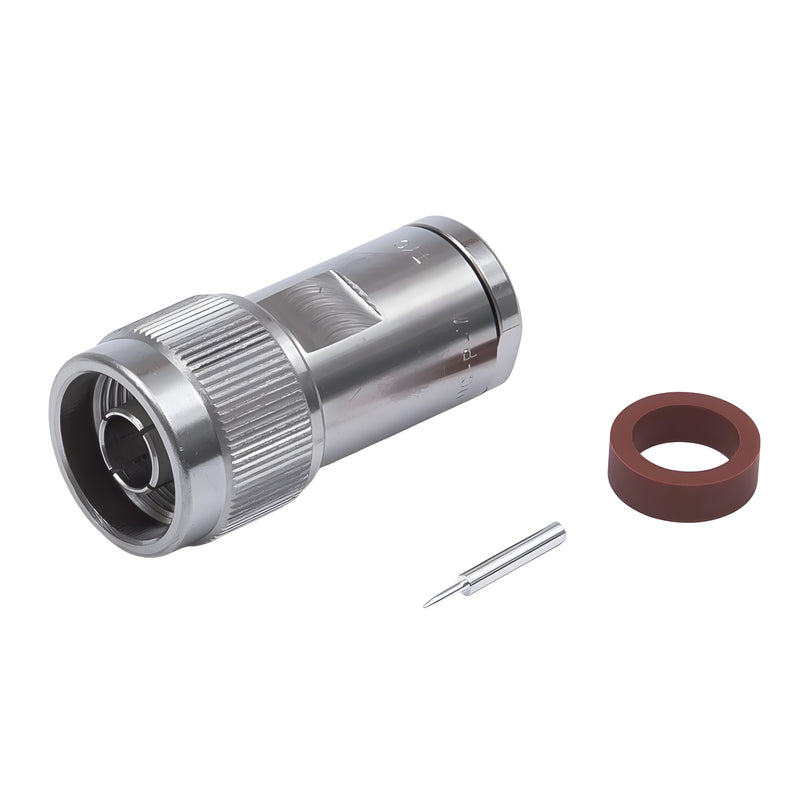

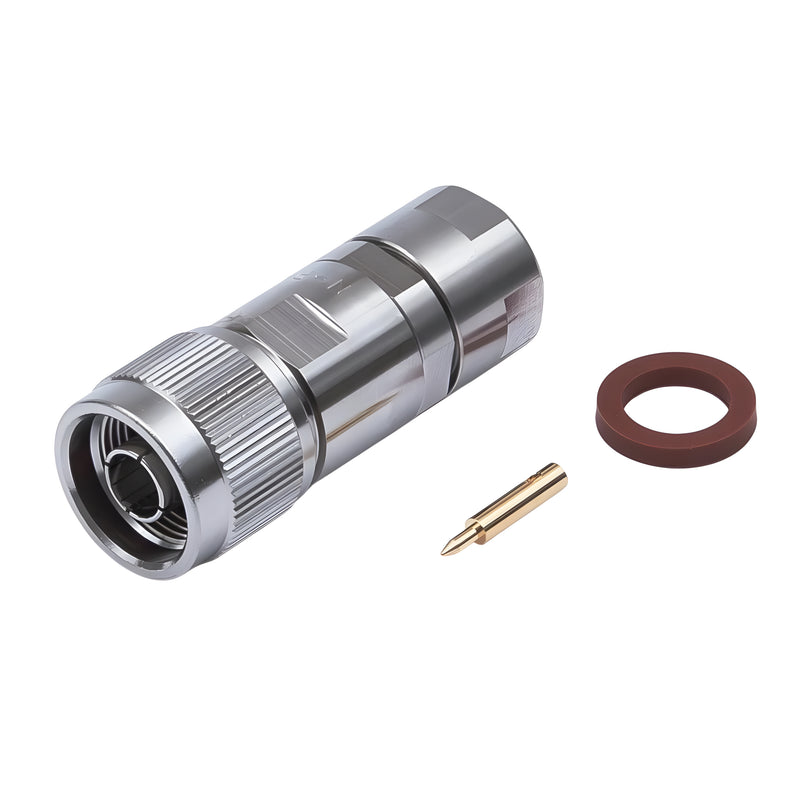

Straight Plugs:
The most common configuration for standard cable assemblies provides a direct linear connection. Depending on the connector design and the specific cable type, termination typically involves soldering the center contact and utilizing a crimping or clamping method to secure the outer conductor.

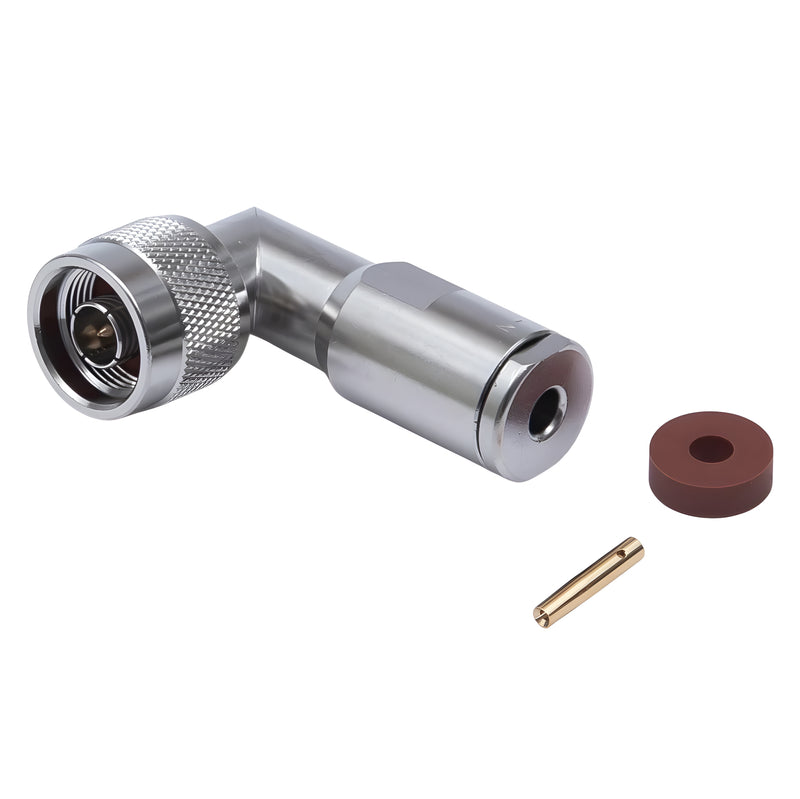

Right-Angle Plugs:
Designed for low-profile or space-constrained applications, these plugs allow the cable to exit at a 90-degree angle from the connection interface. This configuration helps prevent excessive cable bending and facilitates safe cable routing in densely populated assemblies or compact enclosures.

Due to their robust construction and reliable performance up to 11 to 12 gigahertz, Tyclon N Plugs (male) are commonly used in applications that require high power handling and durability in demanding environments:

・ Mobile Communication Systems: Widely used in wireless infrastructure, including base stations, disaster prevention radios, police radios, and tunnel communication networks.

・ Broadcast and Video Equipment: Employed in radio frequency transmission systems, studio equipment, broadcast relay machines, and cable television infrastructure, particularly using the 75 ohm variations.

・ Test and Measurement Instruments: Utilized in high-frequency measurement equipment requiring stable signal integrity and reliable power transmission.

・ Industrial and Outdoor Systems: Applied in radar, defense-related applications, and satellite communications where weather resistance and secure threaded coupling are critical.

Proper installation of an N Plug (male) onto a coaxial cable is critical to maintaining consistent radio frequency performance and mechanical reliability. Tyclon N Plugs (male) support soldering, crimping, and clamping termination methods for flexible installation options.

1. Cable Compatibility Check:
N Plugs (male) must be selected to match the specified cable type and impedance (such as 50 ohm or 75 ohm). Using incompatible cables or mixing different impedance types can result in severe signal reflection or physical damage.

2. Cable Preparation:
Strip the cable jacket, outer conductor (shield), and dielectric according to the dimensions specified for the connector. Accurate preparation is essential to ensure proper electrical contact and impedance continuity.

3. Center Contact Termination:
The inner conductor of the cable is typically connected to the center contact by soldering or crimping. Soldering provides excellent conductivity and a stable electrical connection for high-frequency signals.

4. Outer Conductor Connection:
The outer shield and cable jacket are secured to the connector body using a tightening mechanism (clamping) or by using a crimping tool. Clamping provides a stronger connection than crimping. For even stronger connections, Tyclon offers the "Z" series, which uses a triple chuck method, and the "X" series, which utilizes soldering for the outer connection.
