N Adapters: Types, Structure, and Uses Explained
What Are N Adapters?
N adapters are robust, medium-sized radio frequency components designed to connect two separate N interfaces or to extend the length of existing cable assemblies. They are primarily designed for a 50 ohm impedance, providing reliable performance up to 11 to 12 gigahertz. Their threaded coupling mechanism ensures a secure, vibration-resistant, and weatherproof connection.
Because of their durability, N adapters are widely used in ultra high frequency and microwave frequency ranges, making them ideal for outdoor installations, base stations, test equipment, and broadcast systems. Please note that 75 ohm versions also exist specifically for video transmission and broadcast applications.
Mating of N Connectors
The N series utilizes a 5/8-24 Unified Extra Fine threaded coupling mechanism, which provides a firm and stable connection. Unlike push-on or bayonet types, this screw-on design resists loosening due to vibration or environmental stress, preventing accidental disconnection.
N adapters are available in both 50 ohm and 75 ohm types, but they are not interchangeable. The internal dimensions, especially the center contact, differ between the two impedance types. Connecting a 50 ohm adapter to a 75 ohm system can cause impedance mismatch, signal reflection, and potential damage.
N Adapters by Type
In the Tyclon N connector series, adapters are provided in several configurations optimized for different installation and testing environments:

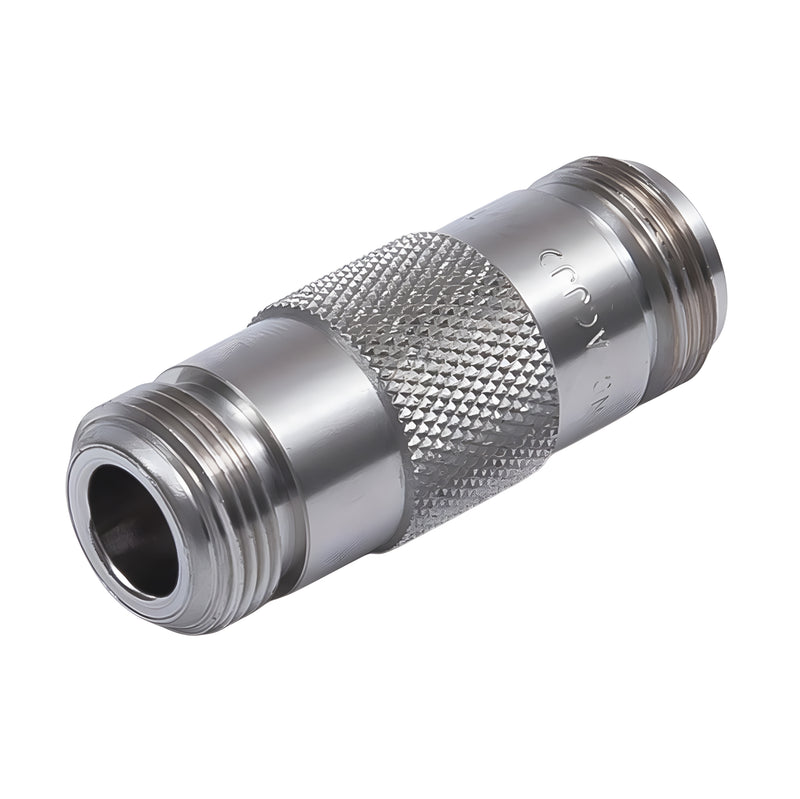

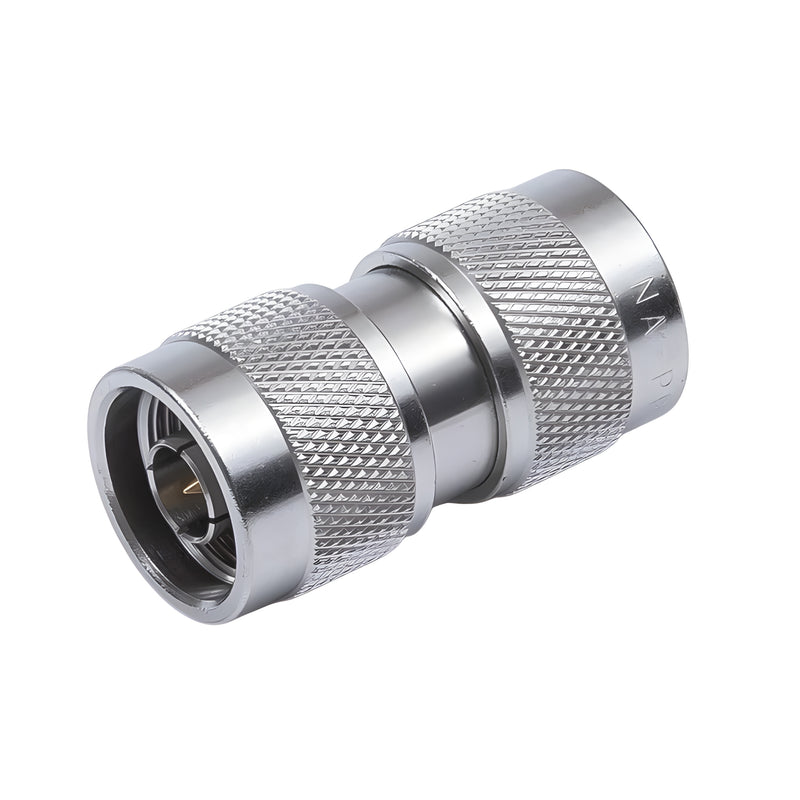

Straight Adapters: Straight adapters are the primary configuration for extending coaxial cables or joining two components. Models such as female-to-female adapters or male-to-male adapters provide a reliable connection that maintains signal integrity.

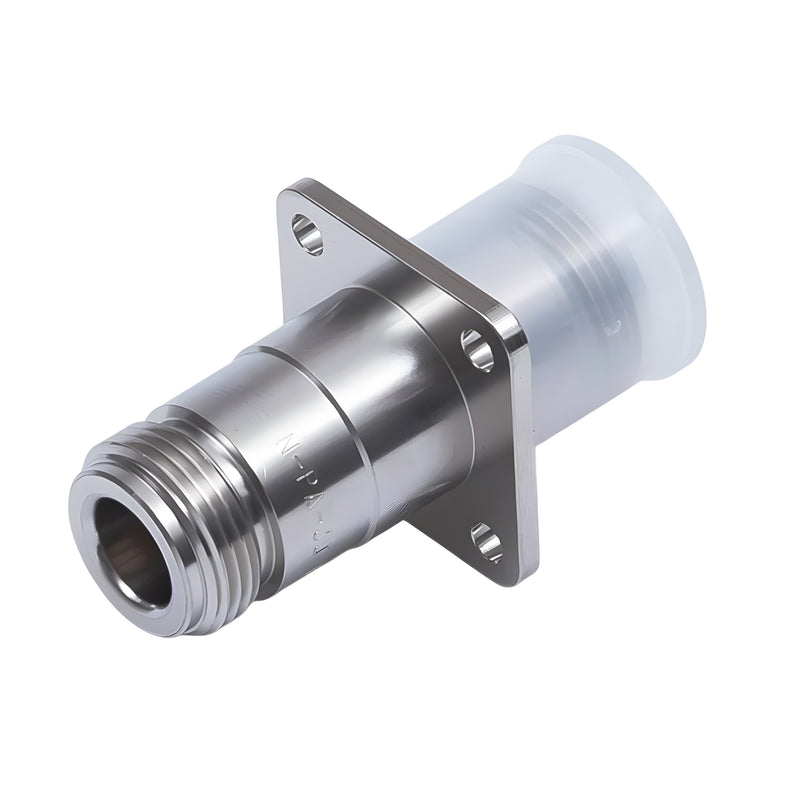

Flange Adapters: Flange adapters are designed for secure panel mounting. They provide a stable and robust connection point for external cables to interface with internal system components.

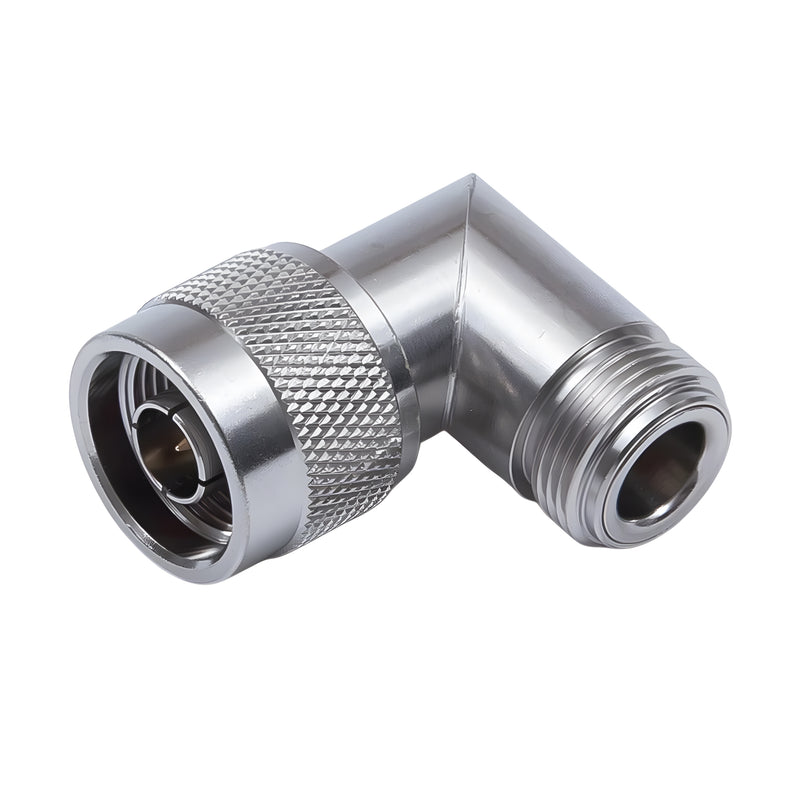

Right-Angle Adapters: Designed for applications with limited space, right-angle adapters allow for a 90-degree turn in the connection. This configuration helps reduce mechanical stress on the cable and enables more compact equipment designs without excessive cable bending.
Examples of N Adapter Usage
"Because of their robust construction, secure threaded coupling, and stable radio frequency performance, Tyclon N Adapters are widely used in professional, industrial, and outdoor environments:
- Mobile Communication and Wireless Infrastructure: Extending coaxial cables and joining components in base stations and outdoor communication systems that are subject to vibration, moisture, and temperature variations.
- Broadcast and Video Transmission: Essential for connecting equipment in radio transmission, cable television infrastructure, and video distribution systems. These fields particularly utilize the 75 ohm configurations to prevent signal reflection and maintain signal integrity over long distances.
- Radar and Defense Systems: Providing reliable, vibration-resistant connections for high-reliability military and radar applications."
N Adapters FAQs
QCan I connect a 50 ohm N adapter to a 75 ohm N adapter?
QCan I connect a 50 ohm N adapter to a 75 ohm N adapter?
No, they are absolutely not compatible. The internal dimensions of the 50 ohm and 75 ohm N adapters differ significantly. Connecting them together may cause severe damage to the systems.
QWhat is the main purpose of using N adapters?
QWhat is the main purpose of using N adapters?
N adapters are primarily utilized to securely connect two separate N interfaces together, or to effectively extend the overall length of existing coaxial cable assemblies in various systems.
QUp to what frequency can 50 ohm N adapters operate?
QUp to what frequency can 50 ohm N adapters operate?
Tyclon 50 ohm N adapters are specifically designed to deliver highly reliable radio frequency performance up to 11 to 12 gigahertz, making them perfect for ultra high frequency and microwave systems.
QWhat is the benefit of a right-angle N adapter?
QWhat is the benefit of a right-angle N adapter?
Right-angle N adapters are perfectly ideal for confined spaces where a straight connection would cause excessive cable bending. They successfully reduce stress and maintain signal stability.
QWhat is the maximum voltage rating for N adapters?
QWhat is the maximum voltage rating for N adapters?
These robust N adapters are precisely rated for a standard operating voltage of up to 500 volts AC (RMS), and they can safely withstand up to 1,000 volts AC (RMS) for one minute.
QDo N adapters require special tools for installation?
QDo N adapters require special tools for installation?
No special tools are absolutely required for basic mating of N adapters. The 5/8-24 Unified Extra Fine threaded coupling mechanism can be easily tightened by hand in most standard setups.
QHow can I order Tyclon N Adapters, and what support do you offer?
QHow can I order Tyclon N Adapters, and what support do you offer?
Ordering is simple—you can purchase our N Adapters directly on our website or contact our sales team for assistance. We also provide full technical support, including datasheets, CAD models, and application notes, to help you pick the perfect connector for your project.
