MMCX Plug (Male) Guide: Types, Structure, and Uses Explained
What Are MMCX Plugs (Male)?
MMCX (Micro-Miniature Coaxial) plug connectors are ultra-compact RF connectors designed for high-density applications. They offer a smaller footprint than the MCX series and utilize a reliable snap-on coupling mechanism for easy installation.
Tyclon’s MMCX Plugs are engineered for high-density packaging, supporting a frequency range from DC to 6 GHz with a constant 50 Ω characteristic impedance. These connectors feature a snap-on (push-on) coupling design that ensures a secure connection in tight spaces, making them an ideal solution for compact PCB layouts and micro-miniature electronic device enclosures.
Mating of MMCX Connectors
The MMCX series utilizes a snap-on coupling mechanism, which eliminates the need for threads and allows for quick, effortless connection and disconnection.
An MMCX Male Plug is defined by its center pin and the snap-on spring mechanism on the outer interface. It mates with an MMCX Female Jack, which features a center socket and a smooth outer rim for the plug to ""click"" onto. A key advantage of this design is that the plug can rotate freely even after it is locked into the jack, which prevents cable twisting and reduces mechanical stress on the solder joints of the PCB.
MMCX Plug (Male) by Type
MMCX plug connectors feature a micro-miniature male interface for high-density RF connections. Tyclon provides these in both straight and right-angle configurations to accommodate various cable entry requirements and spatial constraints.

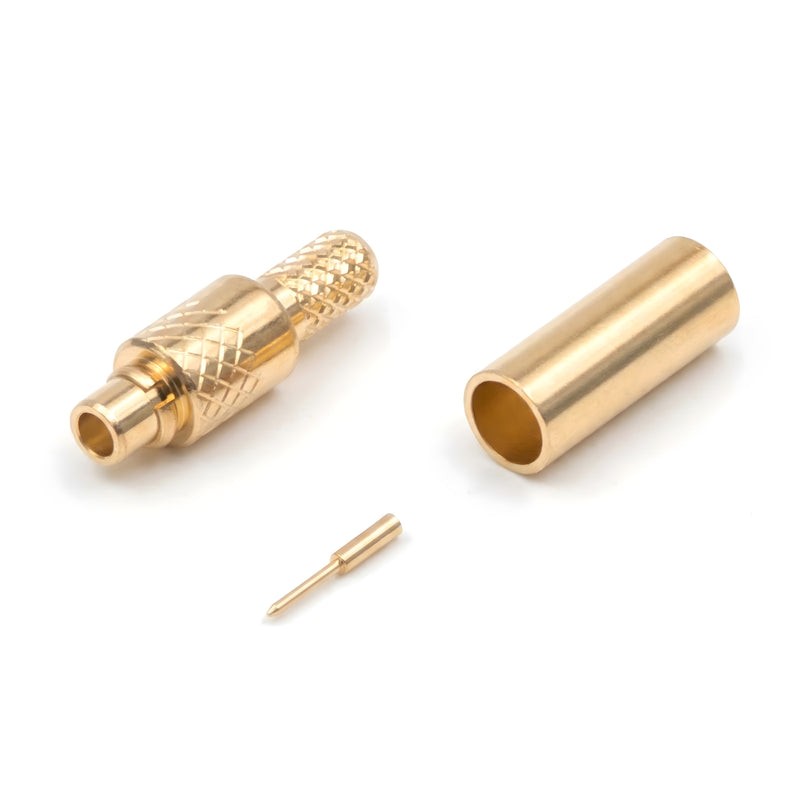

Straight Plug:
Designed for direct, inline connections where the cable extends straight back from the mating interface. It is the standard choice for most general-purpose micro-RF applications.

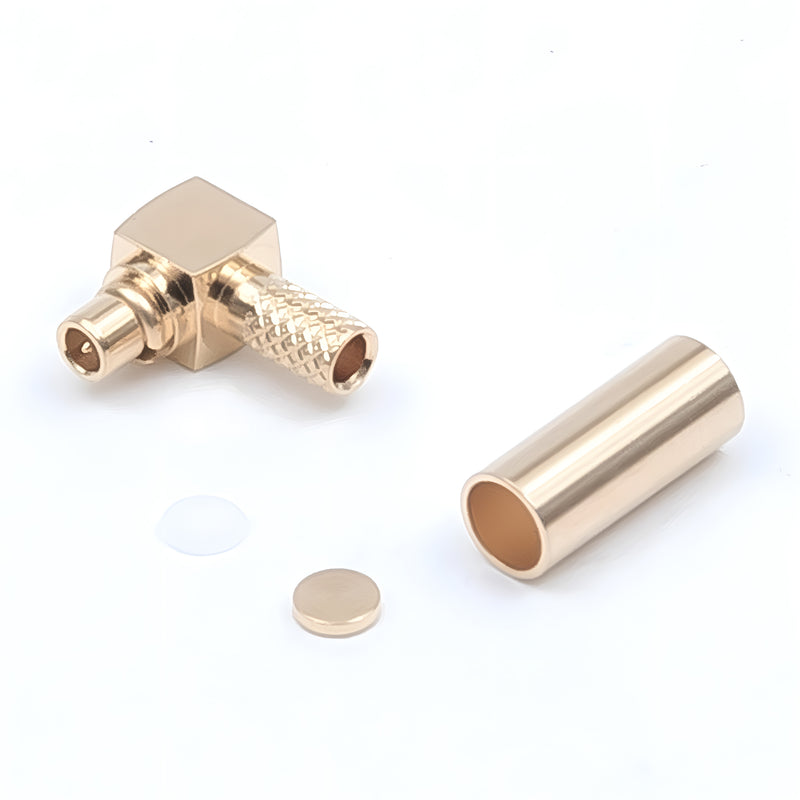

Right Angle Plug:
Optimized for ultra-low profile applications. The right-angle design allows the cable to exit at 90 degrees, making it ideal for slim devices or stacked PCB environments where vertical height is limited.
Trivia: Jacks vs. Receptacles
MMCX Plugs are engineered for specific micro-coaxial cables (e.g., RG-316/U). They use a crimp ferrule to secure the cable’s outer jacket, providing essential strain relief for portable and indoor applications.
In contrast, Receptacles are primarily designed for board or panel mounting. They offer flexibility for internal wiring, as the center contact can be soldered directly to PCB traces or internal leads.
However, since a receptacle does not typically secure a cable’s outer jacket, its mechanical retention is limited. For this reason, receptacles are best used for fixed connections within a chassis where wiring is protected from external stress. To ensure a stable and shielded interface, MMCX receptacles are typically provided in a female (jack) configuration.
Examples of MMCX Plug (Male) Usage
Due to their extremely small footprint and reliable high-frequency performance, Tyclon MMCX Plugs are a staple in modern wireless and consumer electronics:
・ Wireless Communication Modules: Used in Wi-Fi, Bluetooth, and Zigbee modules for internal antenna connections.
・ GPS/GNSS Receivers: Ideal for compact navigation systems in automotive and handheld devices.
・ High-End Audio (IEMs): Widely used as the standard detachable cable connector for high-fidelity In-Ear Monitors.
・ IoT Devices: Essential for smart home sensors and wearable technology where internal space is minimal.
・ Mobile Telecommunications: Employed in base stations and PCMCIA cards for high-density RF signal routing.
SHV Plug Connectors (Male) Cable Installation Guide
MMCX Plugs (male type) are typically used for terminating small-diameter coaxial cables like RG-178 or RG-196. To ensure optimal signal integrity at high frequencies, Tyclon MMCX plugs utilize a combination of soldering and crimping for termination.
1. Connection of the Center Contact
The cable's inner conductor is connected to the center contact pin. Depending on the specific model, this is usually achieved by soldering to ensure a low-resistance path. Tyclon center contacts are gold-plated to provide superior conductivity and prevent oxidation in micro-scale connections.
2. Connection of the Outer Shield (Crimp Method)
The cable's outer shield (braid) is placed over the connector tail and secured using a crimp ferrule. This "crimp-type" attachment provides excellent mechanical retention and consistent electrical grounding, which is critical for maintaining the 50 Ω characteristic impedance and preventing RF leakage.
3. Tooling and Cable Matching
Because MMCX connectors are so small, using the correct crimping tool and matching the connector precisely to the cable (e.g., RG-178) is vital. Improper crimping can easily damage the delicate internal components or lead to intermittent signal issues.
For detailed dimensions and stripping lengths, please refer to the specific product datasheet.
MMCX Plug (Male) FAQs
QWhat Does MMCX Stand For?
QWhat Does MMCX Stand For?
MMCX stands for Micro-Miniature Coaxial. It is a smaller version of the MCX series, designed for high-density RF packaging where space is limited but high performance is required.
QHow Does the Size of MMCX Compare to the MCX Series?
QHow Does the Size of MMCX Compare to the MCX Series?
MMCX connectors provide a significantly more compact footprint than the standard MCX series. This micro-miniature design is ideal for saving critical board space in modern, small-scale electronic devices.
QWhat Is the Frequency Range of Tyclon MMCX Plugs (Male)?
QWhat Is the Frequency Range of Tyclon MMCX Plugs (Male)?
Tyclon MMCX male plugs support a frequency range from DC up to 6 GHz. This wide coverage ensures stable signal transmission for various wireless applications like Wi-Fi and GPS.
QWhat Is the Characteristic Impedance of This Series?
QWhat Is the Characteristic Impedance of This Series?
This series features a constant 50 Ω characteristic impedance. It minimizes signal reflection and ensures seamless compatibility with standard RF communication systems and coaxial cables.
QDoes the Snap-On Connection Allow for Easy Installation?
QDoes the Snap-On Connection Allow for Easy Installation?
The snap-on coupling allows for quick, secure installation by pushing the plug into the jack. This push-on nature speeds up assembly in micro-miniature RF systems where space is limited.
QWhat Plating Is Used on Tyclon MMCX Plugs (Male)?
QWhat Plating Is Used on Tyclon MMCX Plugs (Male)?
Tyclon MMCX plugs feature gold plating on the body and center contact. This provides excellent conductivity and corrosion resistance, ensuring reliable micro-scale connections.
QAre MMCX Connectors Threaded?
QAre MMCX Connectors Threaded?
No, MMCX connectors are non-threaded. This eliminates the need for torque tools, making them ideal for dense layouts where there is no clearance to rotate a nut or use a wrench for mating.
QWhich Cables Are Compatible With Tyclon MMCX Plugs (Male)?
QWhich Cables Are Compatible With Tyclon MMCX Plugs (Male)?
They are compatible with micro-coaxial cables like RG-196, or 1.13mm and 1.32mm types. Selecting the correct cable ensures proper 50 Ω characteristic impedance and a secure fit.
QWhat Is the Difference Between a Straight and Right-Angle MMCX Plug (Male)?
QWhat Is the Difference Between a Straight and Right-Angle MMCX Plug (Male)?
Straight plugs are for inline connections. Right-angle plugs allow cables to exit at 90 degrees, saving vertical height in slim devices or stacked PCB environments.
QWhy Are These Connectors Used for High-Density Packaging?
QWhy Are These Connectors Used for High-Density Packaging?
Their ultra-micro-miniature size and reduced dimensions compared to the MCX series make them the preferred choice for high-density packaging where space for traditional connectors is unavailable.
QHow Can I Order MMCX Plug (Male), and What Support Do You Offer?
QHow Can I Order MMCX Plug (Male), and What Support Do You Offer?
Ordering is simple—you can purchase our MMCX Plug (Male) directly on our website or contact our sales team for assistance. We also provide comprehensive technical support, including datasheets, CAD models, and application notes, to help you select the ideal connector for your project.
