MHV vs BNC: Specifications, Key Differences, and Selection Guide

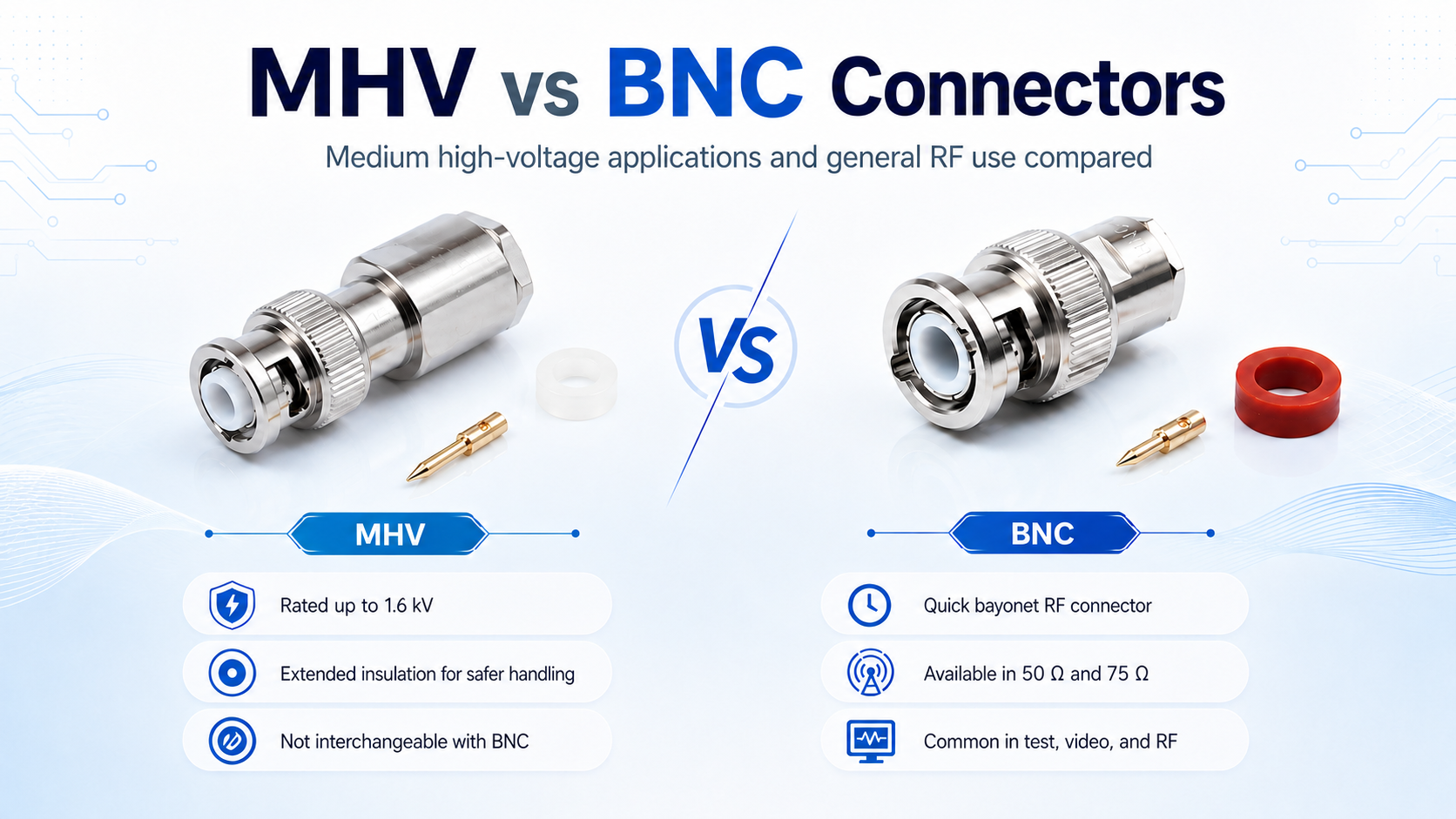

MHV vs BNC at a Glance — Quick Answer for Engineers
MHV and BNC connectors look similar because they both use a bayonet-lock coupling mechanism. However, they are designed for entirely different electrical applications.
BNC connectors are intended for standard RF signal transmission, while MHV connectors are designed for medium high-voltage applications where higher voltage capability is required.
Although they may appear compatible at first glance, MHV and BNC connectors are not mechanically or electrically interchangeable and should never be connected together.
Quick Summary
・Purpose: BNC = RF signals / MHV = Miniature High Voltage
・Coupling: Both use bayonet coupling
・Voltage: MHV supports much higher voltage
・Safety: MHV provides greater insulation than BNC
・Compatibility: Never interchangeable
What Are MHV Connectors?
MHV (Miniature High Voltage) connectors are coaxial connectors designed for medium high-voltage applications where electrical insulation is more important than RF performance.
Unlike standard BNC connectors, MHV connectors feature a longer insulating sleeve that helps reduce the risk of accidental contact with energized conductors while maintaining a secure bayonet-lock connection.
Typical applications include laboratory equipment, high-voltage test instruments, radiation detectors, and power supplies.
Specifications
・Rated Voltage: typically up to AC 1.6 kV
・Coupling: Bayonet
・Impedance: Non-matching
・Typical Use: Moderate high-voltage systems
What Are BNC Connectors?
BNC (Bayonet Neill-Concelman) connectors are one of the most widely used RF coaxial connectors for signal transmission.
Their quick bayonet-lock mechanism allows fast connection and removal, making them ideal for communication systems, measurement equipment, video transmission, and laboratory instruments.
BNC connectors are available in both 50 Ohm and 75 Ohm versions depending on the application.
Specifications
・Impedance: 50 Ohm / 75 Ohm
・Coupling: Bayonet
・Frequency: Depends on connector type
・Typical Voltage: Low-voltage RF applications
MHV vs BNC: Side-by-Side Specification Table
| Specification | MHV | BNC | Why it matters |
|---|---|---|---|
| Primary Purpose | Miniature High Voltage Applications | RF Signal Transmission | Determines the intended application and operating environment. |
| Voltage Rating | Up to AC 1.6 kV (Typical) | Typically Low Voltage (RF Applications) | MHV is designed for higher-voltage applications, while BNC is intended for standard RF signals. |
| Impedance | Non-matching | 50 Ohm / 75 Ohm | Controlled impedance is essential for maintaining RF signal integrity. |
| Coupling Mechanism | Bayonet | Bayonet | Both connectors use a quick and secure bayonet-lock coupling system. |
| Contact Design | Extended Insulating Sleeve | Standard Center Contact Design | MHV provides better insulation than BNC for medium high-voltage use. |
| Safety Level | Improved insulation for miniature high voltage | Standard RF connector | MHV offers greater insulation than BNC, reducing the risk of accidental contact. |
| Compatibility | MHV Only | BNC Only | The connectors are not mechanically or electrically interchangeable. |
| Typical Applications | High-voltage power supplies, laboratory equipment, radiation detectors, measurement instruments | RF equipment, oscilloscopes, communication systems, video equipment | Each connector is optimized for a different operating environment and purpose. |
Key Differences Explained
1. Voltage Capability
The primary difference between MHV and BNC connectors is voltage handling.
MHV connectors are designed for medium high-voltage applications, whereas BNC connectors are intended for standard RF signal transmission at relatively low voltages.
2. Insulation Design
MHV connectors incorporate a longer insulating sleeve than BNC connectors, providing improved electrical insulation.
Although this design reduces accidental contact, it does not offer the same level of operator protection as SHV connectors.
3. Frequency, Impedance, and RF Performance
BNC connectors are impedance-controlled and available in both 50 Ohm and 75 Ohm versions.
MHV connectors are not designed for precision RF signal transmission and therefore do not provide controlled impedance characteristics.
4. Typical Applications
BNC
・RF communication equipment
・Oscilloscopes
・Video systems
・Test instruments
MHV
・Laboratory equipment
・Radiation detectors
・High-voltage power supplies
・Measurement systems
Are MHV and BNC Compatible?
No.
Although MHV and BNC connectors share a similar bayonet-lock appearance, they are intentionally designed for different electrical purposes.
The MHV connector includes a longer insulating sleeve and different center-contact dimensions, making it mechanically incompatible with standard BNC connectors.
Using the wrong connector may damage equipment, compromise insulation, or create electrical safety hazards.
How to Choose Between MHV and BNC
1. Choose MHV when…
Miniature High Voltageis involved.
・Electrical insulation is more important than RF performance.
・Working with laboratory or scientific equipment.
・Using radiation detection or measurement systems.
2. Choose BNC when…
・RF signal transmission is required.
・Working with oscilloscopes or test equipment.
・Using communication or video systems.
・A controlled 50 Ohm or 75 Ohm impedance is required.
Technical Specifications Summary
This comparison provides an overview of the key specifications and characteristics of MHV and BNC.
Review the table below to better understand their differences and determine which connector best fits your application requirements.
| Item | MHV | BNC |
|---|---|---|
| Coupling | Bayonet | Bayonet |
| Impedance | Non-matching | 50 Ohm / 75 Ohm |
| Rated Voltage | Up to AC 1.6 kV (Typical) | Low-voltage RF Applications |
| Insulation Design | Extended Insulating Sleeve | Standard Center Contact |
| Primary Application | Miniature High Voltage | RF Signal Transmission |
| Typical Equipment | Laboratory instruments, radiation detectors, high-voltage power supplies | Oscilloscopes, communication equipment, video systems |
MHV vs BNC FAQs
QWhat does MHV stand for?
QWhat does MHV stand for?
MHV stands for Miniature High Voltage. It is a coaxial connector developed for applications requiring higher voltage handling than standard RF connectors. MHV connectors are commonly used in laboratory instruments, radiation detectors, power supplies, and other equipment where electrical insulation is important.
QCan MHV connect to BNC?
QCan MHV connect to BNC?
No.
Although the two connectors look very similar and both use a bayonet-lock mechanism, they are intentionally designed to be incompatible. Their center-contact dimensions and insulating structures differ, preventing safe operation. Attempting to mate them can damage the connector and create electrical hazards.
QIs MHV safer than BNC?
QIs MHV safer than BNC?
For high-voltage applications, yes.
MHV connectors provide improved insulation through a longer insulating sleeve, reducing the likelihood of accidental contact with energized conductors. However, for applications requiring maximum operator protection, SHV connectors offer an even higher level of safety.
QCan BNC carry high voltage?
QCan BNC carry high voltage?
Standard BNC connectors are primarily designed for RF signal transmission rather than dedicated high-voltage applications.
Their allowable voltage varies by product, so the specifications of the individual connector must always be checked. For systems requiring enhanced insulation or dedicated high-voltage safety, MHV or SHV connectors should be considered.
QWhy do MHV and BNC look similar?
QWhy do MHV and BNC look similar?
Both connectors are based on the same bayonet-lock coupling concept, making them appear nearly identical externally.
However, their internal construction, insulation length, and intended applications are different. This similarity is one reason users should verify connector types carefully before making a connection.
QWhat is the difference between MHV and SHV connectors?
QWhat is the difference between MHV and SHV connectors?
Both connectors are designed for high-voltage applications, but SHV connectors provide significantly greater operator protection.
SHV connectors feature a recessed center contact and a longer insulating sleeve, preventing accidental contact with live conductors. MHV connectors offer improved insulation compared with BNC but do not provide the same level of safety as SHV connectors, making SHV the preferred choice for higher-voltage systems.
QWhen should I choose MHV instead of BNC?
QWhen should I choose MHV instead of BNC?
Choose MHV whenever your application involves miniature High Voltage and electrical insulation is more important than RF signal performance.
Typical examples include laboratory equipment, high-voltage power supplies, radiation detectors, and scientific measurement systems. For communication equipment, video systems, and RF testing, BNC connectors remain the appropriate choice.
