MCX vs MMCX Connectors: Specs, Sizing, and How to Choose for Your RF Design

The MCX connector (Micro Coaxial) is a snap-on subminiature RF connector developed as a 30% smaller alternative to the SMB family. It uses a snap-on coupling, which makes assembly fast and easy in locations where tightening screws is difficult, and space is limited.

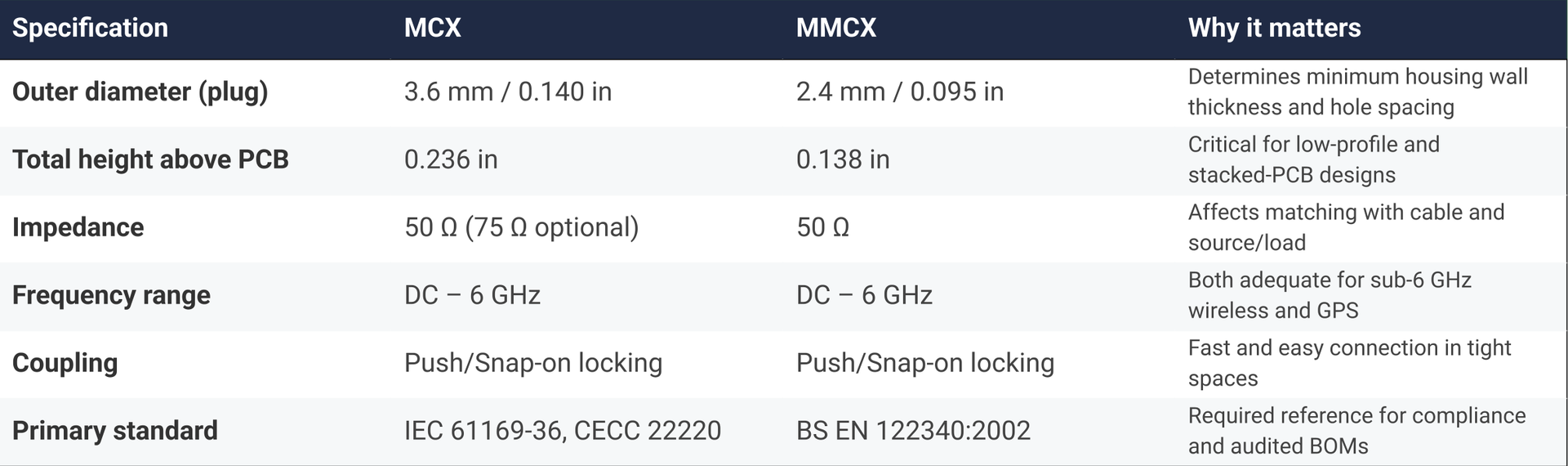

Key specifications for a standard MCX connector:
- Impedance: 50 Ohm standard; 75 Ohm variants are also produced
- Frequency range: DC to 6 GHz

MCX connectors are commonly used in wireless communication systems, GPS receivers, and medical imaging devices. The 75 Ohm option is recommended for maintaining signal quality over longer distances at lower frequencies, making MCX highly relevant for video systems, broadcasting, home appliances, and factory automation equipment.

The MMCX connector (Micro-Miniature Coaxial) is the smaller, scaled-down successor to the MCX series, designed for ultra-compact and high-density applications where space and weight are critical. Its defining feature is a snap-on coupling mechanism that enables quick, easy connection and disconnection in tight spaces.

Key specifications for a standard MMCX connector:
- Impedance: 50 Ohm
- Frequency range: DC to 6 GHz

Common applications include telecommunications hardware, wearable electronics, medical devices such as hearing aids, aerospace avionics, and consumer electronics like GPS receivers and in-ear monitors.

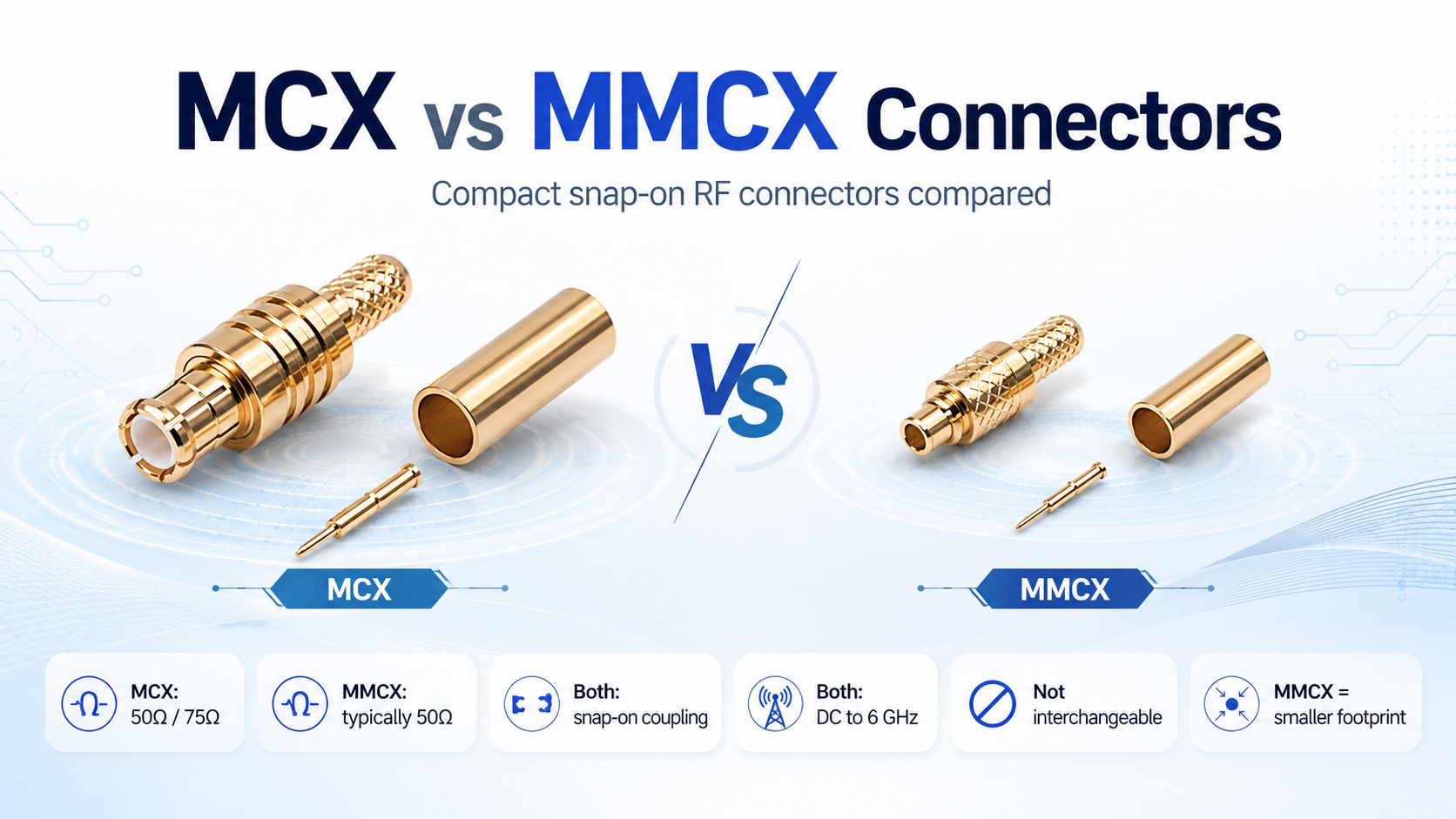

MMCX connectors are an ultra-compact, smaller version of MCX connectors, designed specifically for space-constrained and high-density applications. While MCX connectors are compact and offer a balance of size and versatility, MMCX connectors provide further space and weight savings. This ultra-compact size makes MMCX the ideal choice for applications where space and weight are critical, such as wearable electronics, medical equipment, and portable communication devices.

Both MCX and MMCX use a straightforward snap-on coupling interface, making them fast and easy to mate in tight spaces. It is important to note that when handling these connections, you should push straight in to connect and pull straight out to disconnect without twisting, which preserves the integrity of the connector and the cable.

Both connectors handle frequencies from DC to 6 GHz, covering a wide range of high-frequency applications, including GPS, Wi-Fi, and Bluetooth. Where they diverge is impedance. While MMCX connectors typically have a 50 Ohm impedance, MCX connectors are available in both 50 Ohm and 75 Ohm variants. If your application requires maintaining signal quality over longer distances for lower-frequency uses—such as video systems, broadcasting, home appliances, and factory automation equipment—the 75 Ohm MCX connector is recommended.

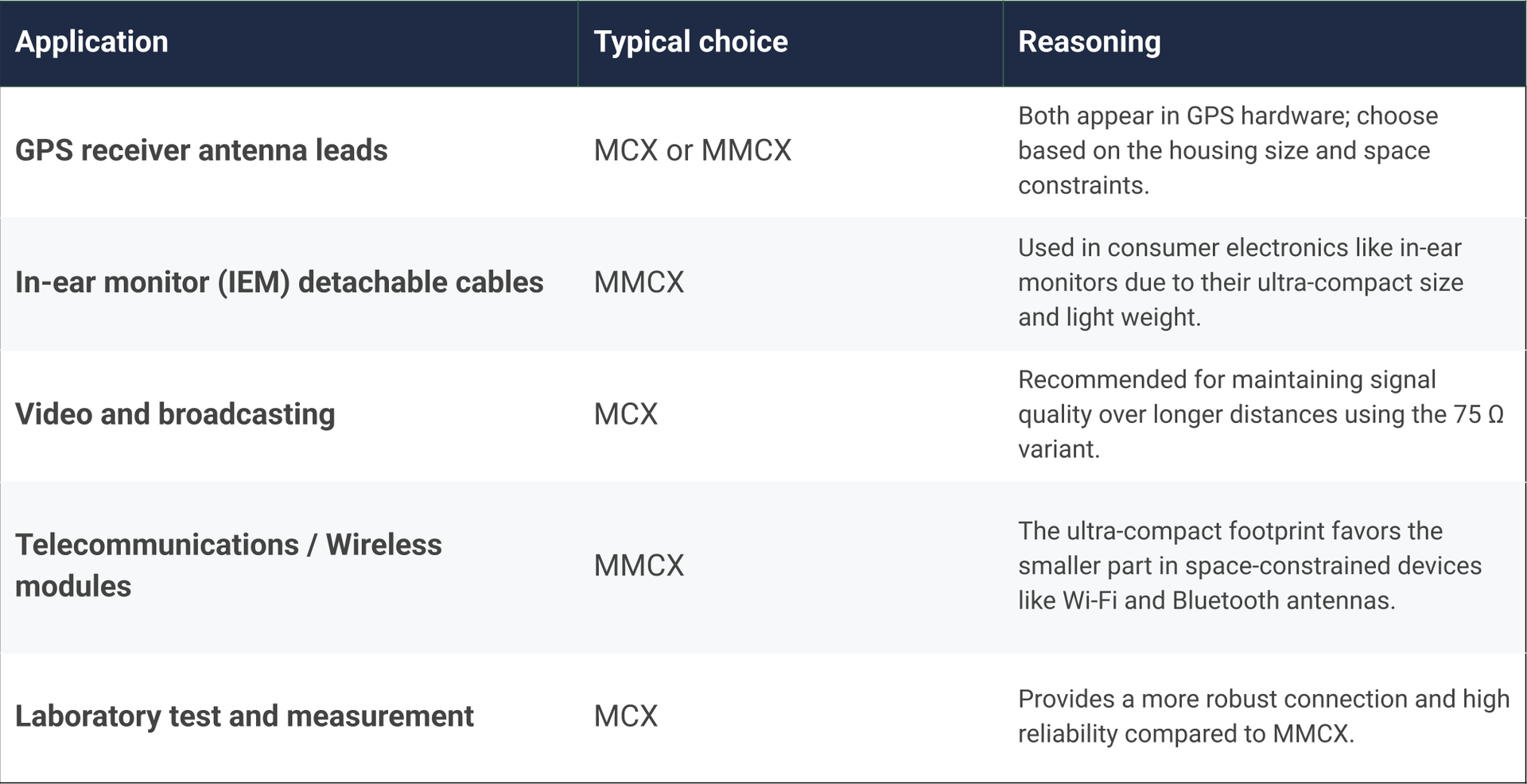

- You are looking for a more robust connection for general RF use.
- You need 75 Ohm impedance for maintaining signal quality over longer distances in lower-frequency uses (such as video systems, broadcasting, home appliances, or factory automation).

- Space and weight are critical, and the footprint must be ultra-compact.
- You are designing high-density, lightweight portable electronics — such as wearable devices, compact medical equipment, or automotive GPS modules.
- You need a snap-on coupling for tight spaces, keeping in mind that the connector should not be twisted during use and is less suitable for highly rugged environments.
