MCX Plug (Male): Types, Structure, and Uses Explained

The mating mechanism of the MCX series is characterized by a snap-on (push-on) design. This interface enables rapid connection and disconnection without the need for threaded coupling nuts or specialized tools. When properly engaged, the connector provides tactile feedback to indicate a secure mechanical and electrical connection.

Tyclon offers a range of MCX plug configurations designed to accommodate different coaxial cable types and assembly methods:

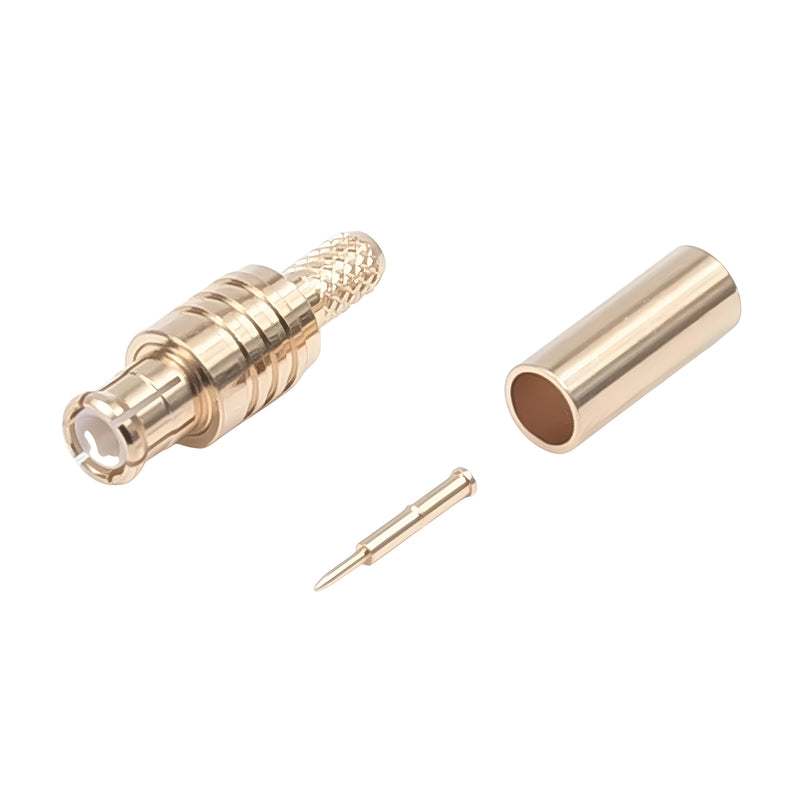

Straight Plugs:
The most common configuration for standard cable assemblies provides a direct linear connection. Depending on the connector design and cable type, termination typically involves soldering the center contact and crimping the outer conductor.

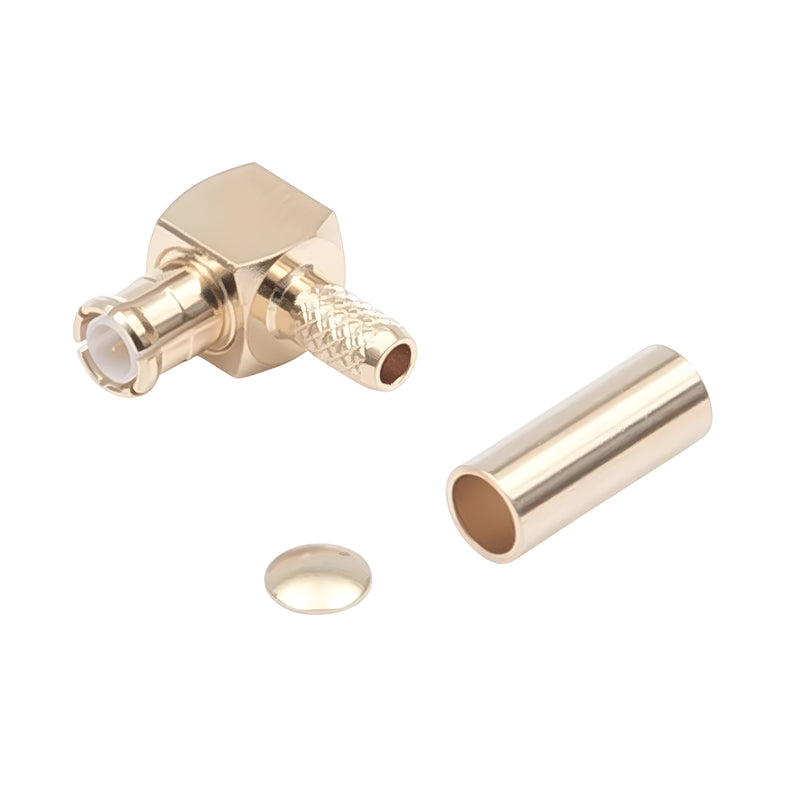

Right-Angle Plug:
Designed for low-profile or space-constrained applications, these plugs allow the cable to exit at a 90° angle from the connection interface. This configuration helps prevent excessive cable bending and facilitates routing in compact enclosures or densely populated assemblies.

Due to their compact size and reliable performance up to 6 GHz, Tyclon MCX plugs are commonly used in RF applications where space constraints and stable signal transmission are critical:

・Wireless Communication Equipment:
Used in compact RF modules, wireless LAN (WLAN) devices, and embedded communication systems requiring high-density interconnects.

・Navigation Systems (GPS):
Widely used in GPS modules for automotive, industrial, and portable devices, where small form factor and stable RF performance are essential.

・Telecommunications Equipment:
Applied in internal RF connections within communication devices, including broadband and mobile communication equipment.

・Test and Measurement Instruments:
Utilized in compact test equipment such as portable signal generators, analyzers, and diagnostic devices, where panel space is limited.

Proper installation of an MCX plug onto a coaxial cable is critical to maintaining consistent RF performance and mechanical reliability. Termination methods may vary depending on the connector design and cable type; refer to the product datasheet for details.

1. Cable Preparation:
Strip the cable jacket, outer conductor (shield), and dielectric according to the dimensions specified for the connector. Accurate preparation is essential to ensure proper electrical contact and impedance continuity.

2. Center Contact Termination:
The cable center conductor may be soldered or crimped to the center contact, depending on the connector design. Ensure the connection is uniform and does not interfere with dielectric positioning.

3. Outer Conductor Connection:
For crimp-type designs, slide the ferrule over the cable before inserting the cable into the connector body. Ensure the outer conductor is properly positioned to maintain reliable electrical grounding.

4. Final Assembly:
Position the ferrule and use an appropriate crimping tool to secure the outer conductor. Proper termination ensures mechanical retention and stable RF performance.
