• Coaxial Impedance Converter
  • Products in stock
  • RoHS2
TYCLON

BNC-0303T

$151.67
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

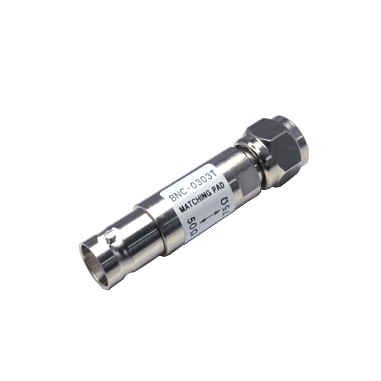

The BNC-030IT is an Impedance Converter. Impedance converter from BNC50Ω jack to F75Ω plug. It features a operates up to 3.5GHz, and an excellent V.S.W.R 1.2(Max.) at DC~1.5GHz、1.25(Max.) at 1.5~3.5GHz.Rated Power is 0.5W.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω⇔75Ω
  • Operating Frequency Range
    3GHz
  • V.S.W.R
    1.2(Max.) at DC~1.5GHz, 1.25(Max.) at 1.5GHz~3.5GHz
  • Rated Power (W)
    0.5W

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

The BNC-030IT is an Impedance Converter. Impedance converter from BNC50Ω jack to F75Ω plug. It features a operates up to 3.5GHz, and an excellent V.S.W.R 1.2(Max.) at DC~1.5GHz、1.25(Max.) at 1.5~3.5GHz.Rated Power is 0.5W.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Featured collection

BNC Coaxial Impedance Converter
TYCLON

BNC-0303T

$151.67

50Ω⇔75Ω Coaxial Impedance Converter

Cable type

N/A

Connector Gender

Plug-Jack

Impedance (Ohms)

50Ω⇔75Ω

Rated Voltage AC

N/A

Operating Frequency Range

3GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.2(Max.) at DC~1.5GHz, 1.25(Max.) at 1.5GHz~3.5GHz

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

0.5W

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
