MCX-SMA Between-Series Adapters:Types, Structure, and Uses Explained
What Are MCX-SMA Between-Series Adapters?
MCX-SMA Between-Series Adapters feature an MCX interface on one end and an SMA interface on the other. They allow engineers to bridge MCX-equipped devices with existing SMA-based RF systems, eliminating the need for cable rework or equipment changes. Tyclon's MCX - SMA adapters maintain 50 Ω impedance matching and support frequencies up to 6 GHz (the upper limit of the MCX interface), ensuring minimal insertion loss across the transition. They are available in straight configurations with gold-plated contacts for long-term signal reliability.
Mating of MCX and SMA Connectors
An MCX-SMA Between-Series Adapter bridges two fundamentally different coupling mechanisms, combining the speed of the MCX with the robust stability of the SMA.
- The MCX Side (Snap-On): The mating mechanism of the MCX interface is characterized by a snap-on (push-on) design. This enables rapid connection and disconnection without the need for specialized tools. When properly engaged, it provides tactile feedback to indicate a secure mechanical and electrical connection.
- The SMA Side (Threaded): In contrast, the SMA interface utilizes a secure threaded coupling. Mating this side requires deliberate rotational fastening (typically secured with a torque wrench), which provides superior mechanical stability and vibration resistance for the broader RF system.
MCX-SMA Between-Series Adapters by Type
Tyclon offers MCX-SMA Between-Series Adapters that provide reliable conversion between MCX and SMA RF interfaces.
- Plug-Jack Type: These adapters feature a plug connector on one side and a jack connector on the other, allowing straightforward conversion between MCX and SMA connector interfaces while maintaining standard mating orientations. They are commonly used to connect cables, devices, and test equipment equipped with different connector series.

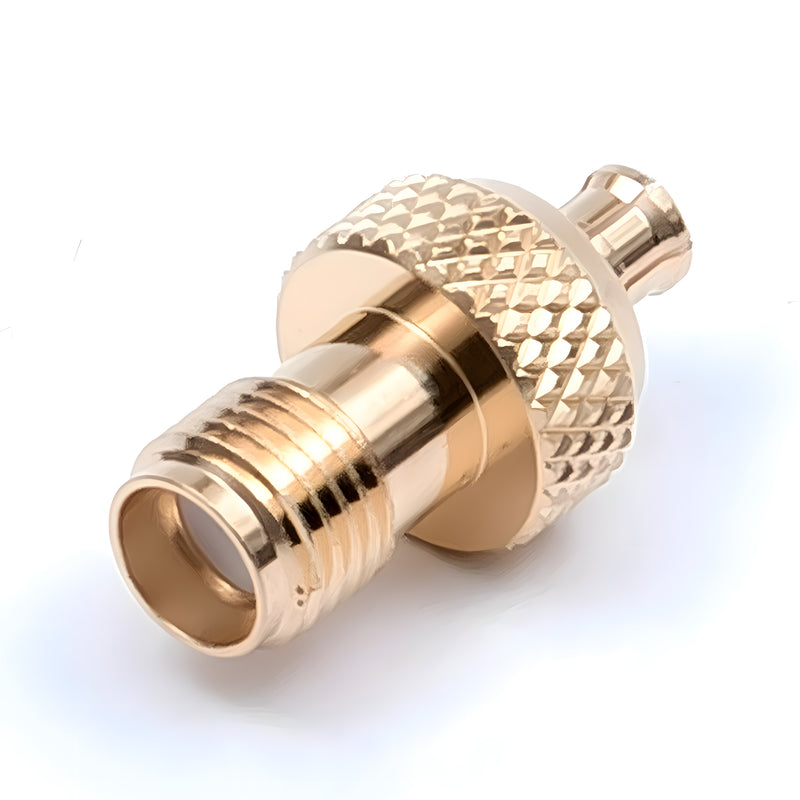

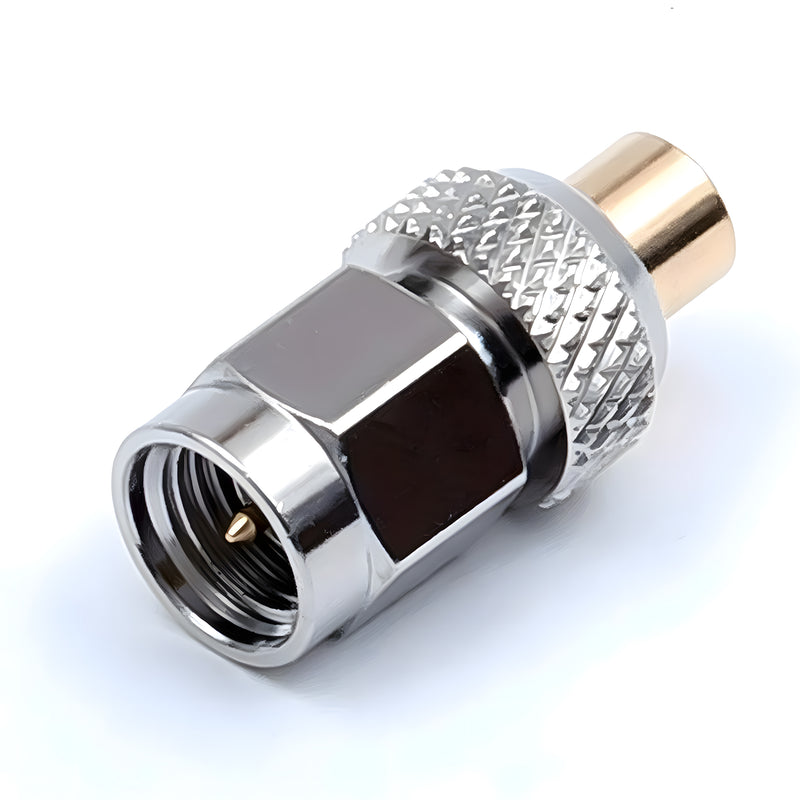

MCX-J-SMAP, MCX-P-SMAJ
- Same-gender Type: Designed with the same connector gender on both ends, these adapters provide a convenient solution when direct mating is not possible due to matching connector genders. Available in MCX-to-SMA configurations, they help simplify RF system integration and improve connection flexibility.

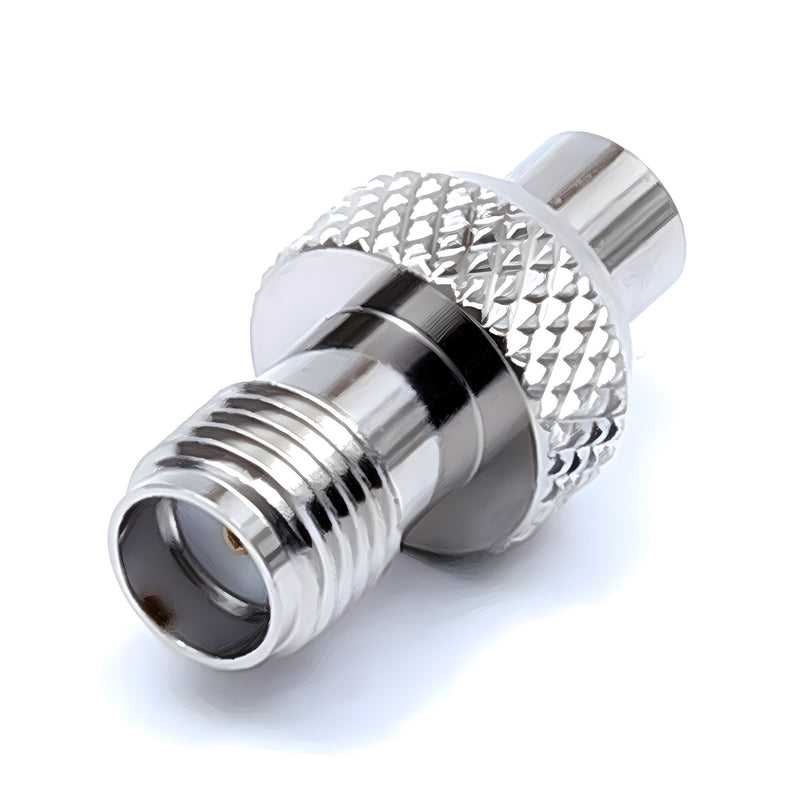

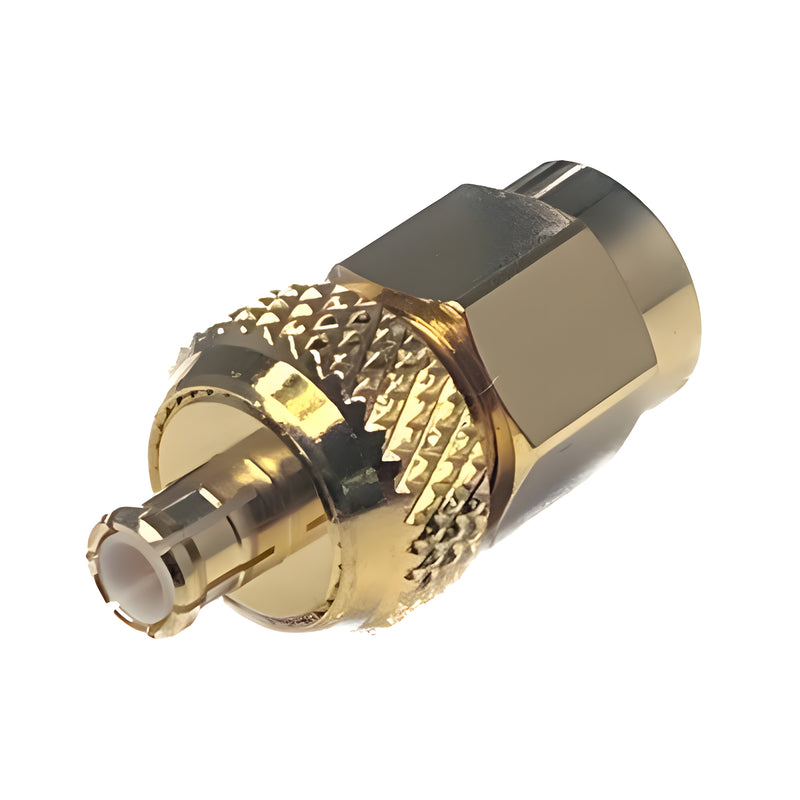

MCX-J-SMAJ, MCX-P-SMAP
Examples of Between Series Adapters Usage
Upgrading an embedded IoT board or SDR (Software Defined Radio) module from a standard SMA interface to a miniaturized MCX interface without replacing the existing SMA cables.
Equipment Replacement
Upgrading an embedded IoT board or SDR (Software Defined Radio) module from a standard SMA interface to a miniaturized MCX interface without replacing the existing SMA cables.

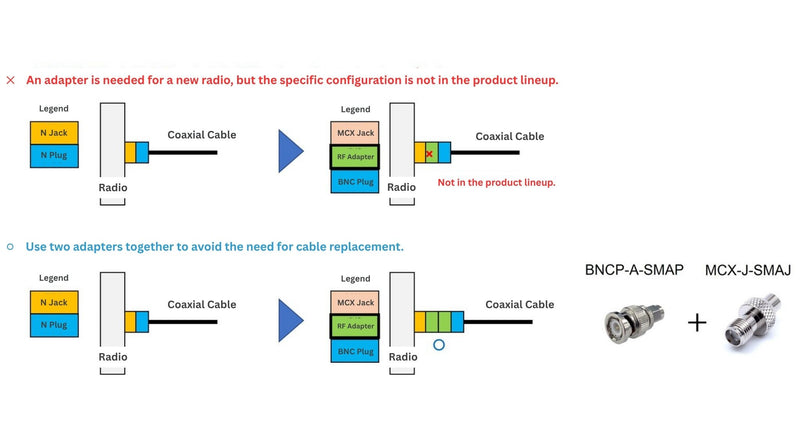

Combining Adapters
Example: Using two adapters together when the specific single-piece adapter you need is not available in the product lineup.
Conversion Cables
Adapters are not available for every single combination of connector types and genders (plugs/jacks). In such cases, a short conversion cable (pigtail) can be used instead.
We can custom-manufacture these cables starting from a single piece. Please feel free to contact us.
MCX-SMA Between-Series Adapters FAQs
QWhat is an MCX-SMA Between Series Adapters?
QWhat is an MCX-SMA Between Series Adapters?
An MCX-SMA Between-Series Adapteris designed to connect an MCX interface to an SMA interface, allowing compatible integration of cables, devices, and test equipment that use different connector series.
QWhat connector combinations are available in Tyclon's MCX-SMA adapter range?
QWhat connector combinations are available in Tyclon's MCX-SMA adapter range?
Tyclon's MCX-SMA Between-Series Adapters are available in multiple configurations, including plug-to-jack and same-gender designs (e.g., MCX plug-to-SMA plug), to meet various connection requirements.
QWhat applications are MCX-SMA Between Series Adapters commonly used for?
QWhat applications are MCX-SMA Between Series Adapters commonly used for?
These adapters are commonly used in wireless communications, measurement systems, instrumentation, and electronic equipment where MCX and SMA connectors must be interconnected.
QWhy would I need a same-gender adaptor?
QWhy would I need a same-gender adaptor?
A same-gender adapter is useful when two cables or devices have matching connector genders (such as connecting an MCX female jack to an SMA female jack) and cannot mate directly. It provides a simple solution without modifying existing hardware.
QWhat is the difference between plug-jack and same-gender adapters?
QWhat is the difference between plug-jack and same-gender adapters?
Plug-jack adapters connect standard male and female interfaces between the two series. In contrast, same-gender adapters connect two connectors of the same gender (e.g., male-to-male or female-to-female) across the MCX and SMA interfaces.
QWhat impedance do Tyclon MCX - SMA Between-Series Adapters support?
QWhat impedance do Tyclon MCX - SMA Between-Series Adapters support?
Tyclon MCX-SMA Between-Series Adapters are designed with a characteristic impedance of 50 Ω, helping to maintain signal integrity in radio-frequency applications.
QWhat frequency range can these adaptors handle?
QWhat frequency range can these adaptors handle?
These adapters support radio-frequency signals up to 6 gigahertz, making them suitable for many communication, testing, and signal-transmission applications.
QCan these adapters be used in test and measurement environments?
QCan these adapters be used in test and measurement environments?
Yes. Their precision construction and reliable electrical performance make them suitable for laboratory testing, equipment evaluation, and measurement system setups.
QDo MCX-SMA Between-Series Adapters require special tools for installation?
QDo MCX-SMA Between-Series Adapters require special tools for installation?
While the MCX side features a tool-free snap-on coupling, the SMA side utilizes a threaded interface. Therefore, properly securing the SMA connection typically requires a standard torque wrench to ensure stable, vibration-resistant performance.
QHow do MCX-SMA Between-Series Adapters help system integration?
QHow do MCX-SMA Between-Series Adapters help system integration?
They simplify system integration by enabling direct connection between MCX and SMA interfaces, reducing the need for custom cables or connector modifications.
QAre these adapters suitable for compact electronic equipment?
QAre these adapters suitable for compact electronic equipment?
Yes. The compact MCX interface helps save space on the board or device side, while the adapter provides reliable radio-frequency connectivity to larger SMA-based external systems.
QWhat should I consider when selecting an MCX-SMA Between-Series Adapter?
QWhat should I consider when selecting an MCX-SMA Between-Series Adapter?
Consider the connector gender on each side, the required interface orientation, operating frequency, and system configuration to ensure proper compatibility and performance.
QHow Can I Order MCX-SMA Between-Series Adapter, and What Support Do You Offer?
QHow Can I Order MCX-SMA Between-Series Adapter, and What Support Do You Offer?
Ordering is simple—you can purchase our MCX-SMA Between-Series Adapter directly on our website or contact our sales team for assistance. We also provide comprehensive technical support, including datasheets, CAD models, and application notes, to help you select the ideal connector for your project.
