4.3/10 DIN vs 7/16 DIN : Specifications, Key Differences, and Selection Guide

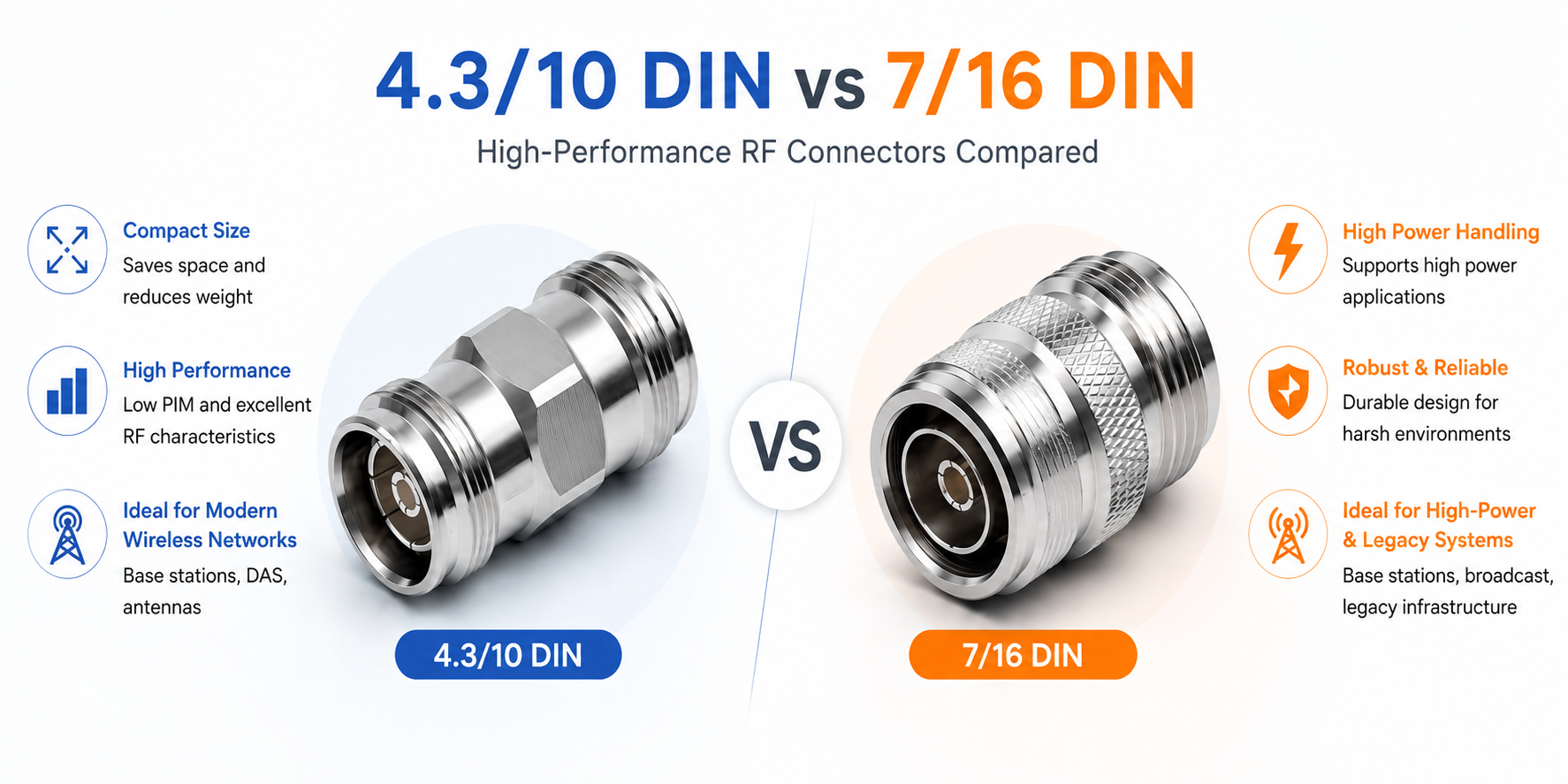

4.3/10 DIN vs 7/16 DIN at a Glance — Quick Answer for Engineers
The 4.3/10 DIN and 7/16 DIN connectors are both high-performance RF coaxial connectors commonly used in wireless communication infrastructure, including base stations and antenna systems.
While both provide excellent RF performance, weather resistance, and low passive intermodulation (PIM), they differ in size, power handling, and installation characteristics. The 4.3/10 DIN connector is a compact alternative designed for modern wireless networks, whereas the 7/16 DIN connector remains a preferred choice for high-power and legacy RF systems.
Quick Summary
・Purpose: Both – High-power RF signal transmission
・Size: 4.3/10 DIN – Compact / 7/16 DIN – Larger
・Coupling: Both – Threaded
・Power Handling: 7/16 DIN – Higher
・Applications: 4.3/10 DIN – Modern wireless infrastructure / 7/16 DIN – High-power and legacy systems
What Are 4.3/10 DIN Connectors?
4.3/10 DIN connectors are compact, low-PIM RF connectors developed for modern wireless communication systems. They offer excellent electrical performance while reducing connector size and weight compared with traditional 7/16 DIN connectors.
Their unique design separates the electrical contact from the mechanical tightening mechanism, providing consistent RF performance regardless of tightening torque. These connectors are widely used in cellular base stations, antennas, distributed antenna systems (DAS), and outdoor RF installations.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded
・Frequency Range: DC to 6 GHz
・Typical Use: Cellular base stations, antennas, DAS, outdoor RF systems
What Are 7/16 DIN Connectors?
7/16 DIN connectors are high-power RF coaxial connectors designed for demanding communication systems that require excellent electrical performance and mechanical durability. Their large, threaded coupling provides a secure connection while supporting high power transmission and low passive intermodulation (PIM).
These connectors have long been widely used in cellular base stations, broadcast transmitters, antennas, and other outdoor wireless communication equipment where reliability under harsh environmental conditions is essential.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded
・Frequency Range: DC to 6 GHz
・Typical Use: High-power base stations, broadcast transmitters, antennas, and outdoor RF systems
4.3/10 DIN 7/16 DIN: Side-by-Side Specification Table
| Specification | 4.3/10 DIN | 7/16 DIN | Why It Matters |
|---|---|---|---|
| Primary Purpose | High-power RF Communication | High-power RF Communication | Both are designed for wireless communication infrastructure. |
| Connector Size | Compact | Large | 4.3/10 DIN saves installation space and reduces weight. |
| Coupling Mechanism | Threaded | Threaded | Both provide secure mechanical connections. |
| Impedance | 50 Ohm | 50 Ohm | Both are standardized for 50 Ohm RF systems. |
| Frequency Range | DC to 6 GHz | DC to 6 GHz | Both support high-frequency RF applications. |
| Power Handling | High | Very High | 7/16 DIN is preferred for maximum power capacity. |
| PIM Performance | Excellent (Low PIM) | Excellent (Low PIM) | Both are suitable for modern wireless systems. |
| Typical Applications | Cellular base stations, DAS, antennas, outdoor RF systems | High-power base stations, broadcast, legacy wireless infrastructure | Choose based on installation requirements and power levels. |
Key Differences Explained
1. Connector Size
The most noticeable difference between 4.3/10 DIN and 7/16 DIN connectors is their physical size.
The 4.3/10 DIN connector is approximately 30–40% smaller than the traditional 7/16 DIN connector, making it ideal for installations where equipment space is limited.
2. Power Handling
Both connectors support high-power RF transmission, but the 7/16 DIN connector is designed for applications requiring maximum power handling.
It remains widely used in high-power base stations and other demanding RF systems.
3. Installation and Handling
The compact design of the 4.3/10 DIN connector makes installation easier while reducing overall system weight.
Its coupling structure also provides consistent electrical performance with less sensitivity to tightening torque, simplifying installation and maintenance.
4. Typical Applications
4.3/10 DIN
・Cellular base stations
・Distributed antenna systems (DAS)
・Outdoor wireless equipment
・Modern communication infrastructure
7/16 DIN
・High-power RF systems
・Cellular base stations
・Broadcast transmitters
・Legacy wireless infrastructure
Are 4.3/10 DIN and 7/16 DIN Compatible?
No.
Although both connectors are designed for similar RF applications, they use different interface dimensions and cannot be directly connected.
If a system requires both connector types, a compatible 4.3/10 DIN-to-7/16 DIN adapter is required.
How to Choose Between 4.3/10 DIN and 7/16 DIN
1. Choose 4.3/10 DIN when...
・Installation space is limited.
・Lower connector weight is important.
・Modern cellular infrastructure is being deployed.
・Low-PIM performance is required.
・Easier installation and maintenance are preferred.
2. Choose 7/16 DIN when...
・Maximum RF power handling is required.
・Existing 7/16 DIN infrastructure is being maintained.
・High-power broadcast or wireless equipment is used.
・A robust connector for demanding environments is preferred.
Technical Specifications Summary
| Item | 4.3/10 DIN | 7/16 DIN |
|---|---|---|
| Connector Size | Compact | Large |
| Coupling | Threaded | Threaded |
| Impedance | 50 Ohm | 50 Ohm |
| Frequency Range | DC to 6 GHz | DC to 6 GHz |
| Power Handling | High | Very High |
| Primary Application | Modern wireless infrastructure | High-power and legacy RF systems |
4.3/10 DIN vs 7/16 DIN FAQs
QWhat is a 4.3/10 DIN connector?
QWhat is a 4.3/10 DIN connector?
A 4.3/10 DIN connector is a compact 50 Ohm RF coaxial connector designed for modern wireless communication systems. It provides excellent electrical performance, low passive intermodulation (PIM), and a smaller form factor than the traditional 7/16 DIN connector, making it ideal for high-density installations.
QWhat is the main difference between 4.3/10 DIN and 7/16 DIN connectors?
QWhat is the main difference between 4.3/10 DIN and 7/16 DIN connectors?
The primary differences are size and power handling. The 4.3/10 DIN connector is smaller and lighter, making it suitable for modern wireless infrastructure where installation space is limited. The 7/16 DIN connector is larger and is commonly used in high-power RF systems requiring maximum mechanical strength and power capacity.
QCan 4.3/10 DIN and 7/16 DIN connectors be connected directly?
QCan 4.3/10 DIN and 7/16 DIN connectors be connected directly?
No. Although both connectors are designed for high-performance RF applications, they have different interface dimensions and cannot mate directly. A compatible adapter is required to connect the two connector types.
QWhy are 4.3/10 DIN connectors replacing 7/16 DIN connectors in many wireless systems?
QWhy are 4.3/10 DIN connectors replacing 7/16 DIN connectors in many wireless systems?
The compact size of the 4.3/10 DIN connector allows more efficient equipment design while reducing overall system weight. It also offers excellent low-PIM performance, making it well suited for modern cellular networks and high-density installations.
QWhich connector is better for high-power RF applications?
QWhich connector is better for high-power RF applications?
The 7/16 DIN connector is generally preferred for applications requiring the highest power handling capability. Its larger size and robust threaded coupling make it well suited for high-power base stations, broadcast systems, and demanding outdoor RF environments.
QDo both connectors provide low passive intermodulation (PIM) performance?
QDo both connectors provide low passive intermodulation (PIM) performance?
Yes. Both 4.3/10 DIN and 7/16 DIN connectors are designed to deliver excellent low-PIM performance, making them suitable for cellular base stations, antenna systems, and other high-performance RF communication applications.
QWhen should I choose 4.3/10 DIN instead of 7/16 DIN?
QWhen should I choose 4.3/10 DIN instead of 7/16 DIN?
Choose 4.3/10 DIN when installation space is limited, equipment weight needs to be reduced, or a compact connector is preferred for modern wireless infrastructure. Choose 7/16 DIN when maximum power handling, mechanical robustness, or compatibility with existing high-power RF systems is the priority.
