3.5 mm vs SMA: Specifications, Key Differences, and Selection Guide
3.5 mm vs. SMA at a Glance — Quick Answer for Engineers
3.5 mm and SMA connectors are both 50 Ohm precision RF coaxial connectors with threaded coupling and similar interface dimensions. They can be mechanically mated, but they differ in frequency performance, construction, durability, and typical applications.
SMA connectors are widely used for general-purpose RF and microwave applications, typically supporting frequencies up to 18 GHz. In contrast, 3.5 mm connectors are designed for precision test and measurement applications and support frequencies up to 26.5 GHz with improved repeatability and durability.
Although they are mechanically compatible, selecting the appropriate connector based on frequency and measurement requirements is important for maintaining reliable RF performance.
Quick Summary
・Purpose: 3.5 mm – Precision RF Measurement / SMA – General-Purpose RF
・Impedance: Both – 50 Ohm
・Coupling: Both – Threaded
・Frequency: 3.5 mm – Up to 26.5 GHz / SMA – Typically up to 18 GHz
・Durability: 3.5 mm – Higher precision and repeatability / SMA – General-purpose durability
・Compatibility: Mechanically Compatible
What Are 3.5 mm Connectors?
3.5 mm connectors are precision RF coaxial connectors designed for high-frequency test and measurement applications.
They feature a 50 Ohm impedance, threaded coupling, and an air dielectric structure that supports stable RF performance up to 26.5 GHz. Their precision construction and high mechanical durability make them particularly suitable for network analyzers, RF laboratories, aerospace systems, and applications requiring repeatable measurements.
3.5 mm connectors are also mechanically compatible with SMA and 2.92 mm (K) connectors.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded (1/4-36 UNS)
・Frequency Range: DC to 26.5 GHz
・Dielectric: Air
・Typical Use: Precision RF test and measurement
What Are SMA Connectors?
SMA connectors are compact 50 Ohm RF coaxial connectors widely used in general RF and microwave applications.
Their threaded coupling provides a secure and stable connection, while the compact interface makes them suitable for high-density equipment and a wide variety of RF systems. Standard TYCLON SMA connectors support frequencies up to 18 GHz, with numerous configurations available for cables, PCBs, panels, and adapters.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded (1/4-36 UNS)
・Frequency Range: Typically DC to 18 GHz
・Typical Use: General RF and microwave applications

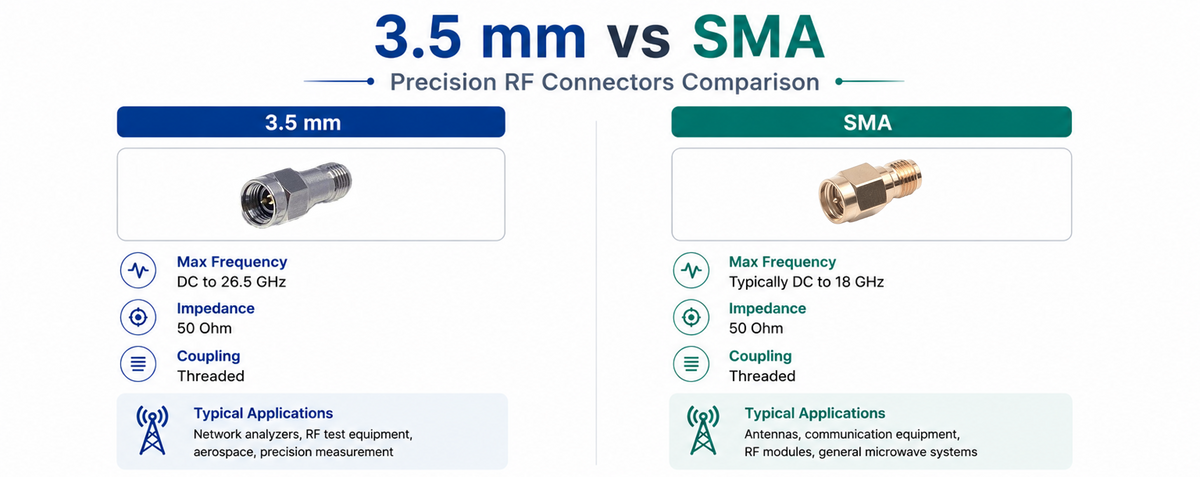

Side-by-Side Specification Table
| Specification | 3.5 mm | SMA | Why It Matters |
|---|---|---|---|
| Primary Purpose | Precision RF Measurement | General-Purpose RF | Select according to measurement accuracy and application requirements. |
| Impedance | 50 Ohm | 50 Ohm | Both are designed for standard 50 Ohm RF systems. |
| Frequency Range | DC to 26.5 GHz | Typically DC to 18 GHz | 3.5 mm supports higher-frequency applications. |
| Coupling Mechanism | Threaded | Threaded | Both provide secure RF connections. |
| Dielectric Structure | Air Dielectric | Solid Dielectric | The air dielectric contributes to improved high-frequency performance. |
| Precision & Repeatability | Excellent | Good | 3.5 mm is better suited for repeated precision measurements. |
| Typical Applications | Network analyzers, RF laboratories, aerospace, precision measurement | Communication equipment, antennas, RF modules, general microwave systems | Each connector is optimized for different RF requirements. |
| Compatibility | Compatible with SMA | Compatible with 3.5 mm | They can be mechanically mated, but performance depends on the complete connection. |
Key Differences Explained — With Engineering Context
1. Frequency Performance
One of the main differences between 3.5 mm and SMA connectors is their frequency capability.
・3.5 mm: DC to 26.5 GHz
・SMA: Typically DC to 18 GHz
3.5 mm connectors are designed for higher-frequency applications where stable and repeatable RF performance is required. SMA connectors provide reliable performance for a wide range of general-purpose RF and microwave systems.
2. Dielectric Structure
3.5 mm connectors use an air dielectric structure, while conventional SMA connectors use a solid dielectric.
The air dielectric helps reduce signal loss and supports improved electrical performance at higher frequencies, making 3.5 mm connectors particularly suitable for precision RF measurement.
3. Precision and Durability
3.5 mm connectors are manufactured with tighter mechanical tolerances and are designed for reliable, repeatable connections.
This makes them particularly suitable for test and measurement environments where connectors may be connected and disconnected repeatedly. SMA connectors are more commonly used as general-purpose RF interfaces where precision measurement is not the primary requirement.
4. Typical Applications
3.5 mm
・Vector network analyzers
・Precision RF measurement
・RF laboratories
・Aerospace and defense
・High-frequency test systems
SMA
・RF communication equipment
・Antennas
・Wireless systems
・RF modules
・General microwave equipment
Are 3.5 mm and SMA Compatible?
Yes, mechanically.
3.5 mm and SMA connectors share a compatible interface and can be directly mated in many RF systems.
However, their mechanical tolerances and electrical performance are different. When a 3.5 mm connector is mated with an SMA connector, the overall frequency performance is limited by the lower-performing interface and other components in the system.
For precision measurements or applications involving frequent connections, TYCLON recommends using a dedicated precision adapter to help protect the interfaces and maintain consistent RF performance.
How to Choose Between 3.5 mm and SMA
1. Choose 3.5 mm when…
・Frequencies up to 26.5 GHz are required.
・Precision RF measurements are performed.
・Measurement repeatability is important.
・Network analyzers or laboratory equipment are used.
・Frequent connection and disconnection is expected.
2. Choose SMA when…
・Frequencies up to 18 GHz are sufficient.
・General-purpose RF applications are involved.
・A compact and widely used RF interface is preferred.
・Working with antennas, communication equipment, or RF modules.
・A broad selection of connector configurations is required.
Technical Specifications Summary
| Item | 3.5 mm | SMA |
|---|---|---|
| Primary Application | Precision RF Measurement | General-Purpose RF |
| Maximum Frequency | DC to 26.5 GHz | Typically DC to 18 GHz |
| Impedance | 50 Ohm | 50 Ohm |
| Coupling | Threaded | Threaded |
| Dielectric | Air | Solid |
| Precision | Excellent | Good |
| Typical Equipment | Network analyzers, RF test equipment, laboratory instruments | Antennas, communication equipment, RF modules |
| Compatibility | Compatible with SMA | Compatible with 3.5 mm |
3.5 mm vs SMA FAQs
QWhat is the main difference between 3.5 mm and SMA connectors?
QWhat is the main difference between 3.5 mm and SMA connectors?
The main differences are frequency performance, mechanical precision, and typical applications. 3.5 mm connectors are designed for precision RF measurement up to 26.5 GHz, while standard SMA connectors are widely used for general-purpose RF applications up to approximately 18 GHz.
QCan 3.5 mm and SMA connectors be connected directly?
QCan 3.5 mm and SMA connectors be connected directly?
Yes. 3.5 mm and SMA connectors are mechanically compatible and can be directly mated. However, a precision adapter is recommended for repeated or high-accuracy measurements.
QWhich connector supports higher frequencies?
QWhich connector supports higher frequencies?
3.5 mm connectors support higher frequencies. TYCLON's standard 3.5 mm connectors operate up to 26.5 GHz, while standard SMA connectors typically operate up to 18 GHz.
QWhy are 3.5 mm connectors preferred for precision measurements?
QWhy are 3.5 mm connectors preferred for precision measurements?
3.5 mm connectors use an air dielectric and tighter mechanical tolerances, providing stable electrical performance and improved repeatability. This makes them particularly suitable for network analyzers and precision RF measurement systems.
QCan using an SMA connector limit a 3.5 mm system?
QCan using an SMA connector limit a 3.5 mm system?
Yes. When an SMA connector is used in a 3.5 mm system, the performance of the complete connection is limited by the specifications of the SMA connector and other components in the signal path.
QAre 3.5 mm connectors more durable than SMA connectors?
QAre 3.5 mm connectors more durable than SMA connectors?
3.5 mm connectors are designed for repeated mating and precision measurement environments and generally provide improved mechanical durability and repeatability compared with standard SMA connectors.
QWhen should I choose SMA instead of 3.5 mm?
QWhen should I choose SMA instead of 3.5 mm?
Choose SMA when your application does not require the higher frequency capability or measurement precision of a 3.5 mm connector. SMA is well suited for antennas, wireless communication equipment, RF modules, and other general-purpose RF systems.
