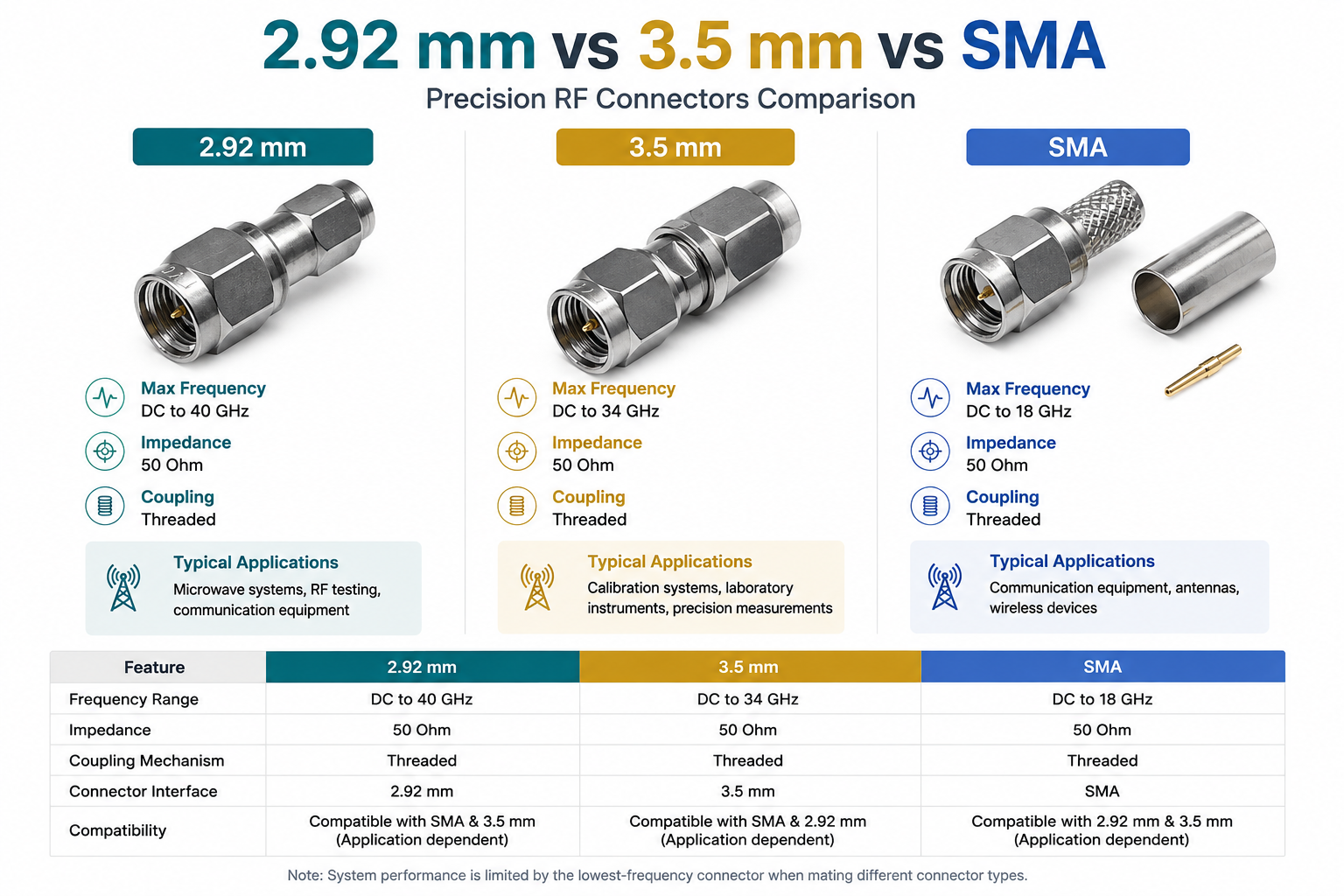

2.92mm(K) vs 3.5mm vs SMA : Specifications, Key Differences, and Selection Guide
Quick Answer for Engineers
2.92 mm (K), 3.5 mm, and SMA connectors are precision RF coaxial connectors widely used in communication systems, RF testing, and microwave applications. Although they share similar threaded coupling and 50 Ohm impedance, they differ in maximum operating frequency, mechanical design, and intended applications.
SMA connectors are the industry standard for general-purpose RF applications up to 18 GHz. The 3.5 mm connector extends performance to 34 GHz with improved mechanical durability and measurement accuracy, while the 2.92 mm connector supports frequencies up to 40 GHz, making it ideal for demanding microwave and high-frequency test applications.
Quick Summary
・Purpose: All – High-frequency RF signal transmission
・Maximum Frequency: SMA – 18 GHz / 3.5 mm – 34 GHz / 2.92 mm – 40 GHz
・Coupling: All – Threaded
・Performance: Higher frequency capability with 3.5 mm and 2.92 mm
・Applications: General RF, precision measurement, and microwave systems
What Are 2.92 mm Connectors?
2.92 mm (K) connectors are precision RF coaxial connectors designed for frequencies up to 40 GHz.
They combine excellent electrical performance with strong mechanical durability and are widely used in RF testing, communication systems, microwave equipment, and general-purpose high-frequency applications.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded
・Frequency Range: DC to 40 GHz
・Typical Use: RF testing, communication systems, microwave equipment
What Are 3.5 mm Connectors?
3.5 mm connectors are precision RF coaxial connectors designed for accurate measurements up to 34 GHz.
Compared with standard SMA connectors, they offer greater mechanical durability and improved measurement repeatability, making them well suited for laboratory instruments, calibration systems, and precision RF testing.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded
・Frequency Range: DC to 34 GHz
・Typical Use: Precision RF measurements and calibration equipment
What Are SMA Connectors?
SMA (SubMiniature Version A) connectors are one of the most widely used RF coaxial connectors for general-purpose RF and microwave applications.
Their compact size, reliable threaded coupling, and broad industry adoption make them suitable for communication equipment, antennas, wireless devices, laboratory instruments, and many commercial RF systems.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded
・Frequency Range: DC to 18 GHz
・Typical Use: Communication equipment, antennas, wireless devices
Side-by-Side Comparison Table
Primary Purpose / High-Frequency RF Measurement / Precision RF Measurement / General RF Signal Transmission / Select according to frequency and measurement accuracy.
Maximum Frequency / DC to 40 GHz / DC to 34 GHz / DC to 18 GHz / Higher-frequency applications require smaller, precision interfaces.
Coupling Mechanism / Threaded / Threaded / Threaded / All provide secure threaded connections.
Impedance / 50 Ohm / 50 Ohm / 50 Ohm / Standard impedance for RF systems.
Mechanical Durability / Excellent / Excellent / Good / Precision connectors are designed for repeated measurement use.
Compatibility / Compatible with SMA and 3.5 mm (application dependent) / Compatible with SMA and 2.92 mm (application dependent) / Compatible with 2.92 mm and 3.5 mm (application dependent) / Verify frequency limits before mating different connector types.
Typical Applications / Microwave systems, RF testing, communication equipment / Calibration systems, laboratory instruments, precision measurements / Communication equipment, antennas, wireless devices / Choose according to frequency and measurement requirements.
Key Differences Explained
1. Maximum Operating Frequency
The biggest difference among these connectors is their maximum operating frequency.
・2.92 mm: Up to 40 GHz
・3.5 mm: Up to 34 GHz
・SMA: Up to 18 GHz
Choose the connector based on the highest frequency required by your RF system.
2. Mechanical Design
While all three connectors have similar threaded interfaces, the 3.5 mm and 2.92 mm connectors are designed with tighter tolerances and improved mechanical performance for precision RF measurements.
3. Compatibility
Unlike many other precision RF connectors, SMA, 3.5 mm, and 2.92 mm connectors can be mechanically mated in certain combinations.
However, the overall system performance is limited by the lowest-frequency connector, and repeated mating should follow the manufacturer's recommendations.
3. Typical Applications
2.92 mm
・RF communication equipment
・Microwave systems
・General RF testing
・Laboratory instruments
3.5 mm
・Calibration equipment
・Laboratory instruments
・Precision RF testing
・Metrology
SMA
・Communication equipment
・Wireless devices
・Antennas
・General RF systems
Are They Compatible?
Partially.
Unlike many precision RF connector families, these connectors share similar interface dimensions and can be mechanically mated under appropriate conditions.
However, the operating frequency is limited by the connector with the lowest frequency rating, and improper use may reduce measurement accuracy or damage the connector interface. Always follow the manufacturer's compatibility recommendations.
How to Choose Between 2.92 mm vs 3.5 mm vs SMA
1. Choose 2.92 mm when...
・Frequencies up to 40 GHz are sufficient.
・General-purpose RF measurements are performed.
・Communication or microwave systems are being developed.
・A robust connector for routine testing is preferred.
2. Choose 3.5 mm when...
・Precision RF measurements are required.
・Calibration accuracy is important.
・Frequencies up to 34 GHz are needed.
・Repeated laboratory use is expected.
3. Choose SMA when...
・Frequencies up to 18 GHz are sufficient.
・General RF communication equipment is used.
・Wide industry compatibility is important.
・Cost-effective solutions are preferred.
Technical Specifications Summary
Item / 2.92 mm / 3.5 mm / SMA
Maximum Frequency / DC to 40 GHz / DC to 34 GHz / DC to 18 GHz
Coupling / Threaded / Threaded / Threaded
Impedance / 50 Ohm / 50 Ohm / 50 Ohm
Mechanical Durability / Excellent / Excellent / Good
Compatibility / Compatible with SMA & 3.5 mm* / Compatible with SMA & 2.92 mm* / Compatible with 2.92 mm & 3.5 mm*
Primary Application / Microwave systems, RF testing / Precision measurement / General RF communication
*Compatibility depends on the operating frequency, connector condition, and manufacturer specifications.
2.92 mm vs 3.5 mm vs SMA FAQs
QWhat is the main difference between 2.92 mm, 3.5 mm, and SMA connectors?
QWhat is the main difference between 2.92 mm, 3.5 mm, and SMA connectors?
The main differences are their maximum operating frequency, mechanical precision, and intended applications. SMA supports up to 18 GHz, 3.5 mm up to 34 GHz, and 2.92 mm up to 40 GHz.
QCan 2.92 mm, 3.5 mm, and SMA connectors be connected together?
QCan 2.92 mm, 3.5 mm, and SMA connectors be connected together?
Yes, under appropriate conditions. These connector families share similar interface dimensions and can often be mechanically mated. However, system performance will be limited by the connector with the lowest frequency rating, and compatibility should always be verified before use.
QWhy choose a 3.5 mm connector instead of an SMA connector?
QWhy choose a 3.5 mm connector instead of an SMA connector?
A 3.5 mm connector offers higher frequency capability, improved mechanical durability, and better measurement repeatability, making it suitable for precision laboratory and calibration applications.
QWhat are the advantages of a 2.92 mm connector?
QWhat are the advantages of a 2.92 mm connector?
A 2.92 mm connector supports frequencies up to 40 GHz while maintaining compatibility with many SMA-based systems, making it an excellent choice for microwave measurements and advanced RF testing.
QIs SMA still suitable for modern RF applications?
QIs SMA still suitable for modern RF applications?
Yes. SMA connectors remain one of the most widely used RF connector types for communication equipment, antennas, wireless devices, and general-purpose RF systems operating up to 18 GHz.
QWhich connector is best for precision RF measurements?
QWhich connector is best for precision RF measurements?
The 3.5 mm and 2.92 mm connectors are generally preferred for precision RF measurements because they offer tighter mechanical tolerances and support higher operating frequencies than standard SMA connectors.
QHow do I choose the right connector?
QHow do I choose the right connector?
Select the connector based on your required operating frequency, measurement accuracy, and system compatibility. In general, SMA is suitable up to 18 GHz, 3.5 mm up to 34 GHz, and 2.92 mm up to 40 GHz, making frequency capability the primary selection criterion.
