Quick Answer for Engineers
2.4 mm, 2.92 mm (K), and 3.5 mm connectors are precision RF coaxial connectors designed for high-frequency applications. All three use a threaded coupling and maintain a 50 Ohm impedance, but they differ in maximum operating frequency, mechanical compatibility, and typical applications.
The 3.5 mm connector is widely used for precision RF measurement, while the 2.92 mm (K) connector extends performance up to 40 GHz and offers compatibility with both 3.5 mm and SMA connectors. The 2.4 mm connector supports frequencies up to 50 GHz, making it suitable for more demanding high-frequency measurement systems.
Quick Summary
・Purpose: All – Precision high-frequency RF applications
・Maximum Frequency: 2.4 mm – 50 GHz / 2.92 mm – 40 GHz / 3.5 mm – 34 GHz
・Coupling: All – Threaded
・Impedance: All – 50 Ohm
・Compatibility: 2.92 mm and 3.5 mm are compatible / 2.4 mm is not directly compatible
・Selection: Choose based on frequency, compatibility, and measurement requirements
What Are 2.4 mm Connectors?
2.4 mm connectors are precision RF coaxial connectors designed for high-frequency applications up to 50 GHz.
They provide excellent electrical performance, low VSWR, and reliable mechanical durability, making them suitable for RF measurement equipment, microwave systems, communication devices, and research laboratories.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded
・Frequency Range: DC to 50 GHz
・Typical Use: RF testing, microwave systems, communication equipment
What Are 2.92 mm Connectors?
2.92 mm (K) connectors are precision RF coaxial connectors designed for frequencies up to 40 GHz.
They combine excellent electrical performance with strong mechanical durability and are widely used in RF testing, communication systems, microwave equipment, and general-purpose high-frequency applications.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded
・Frequency Range: DC to 40 GHz
・Typical Use: RF testing, communication systems, microwave equipment
What Are 3.5 mm Connectors?
3.5 mm connectors are precision RF coaxial connectors designed for high-frequency test and measurement applications.
Their precision mechanical construction provides stable electrical performance and repeatability, making them particularly suitable for network analyzers, laboratory instruments, and other precision RF measurement systems. TYCLON lists the 3.5 mm series as 50 Ohm with threaded coupling.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded
・Frequency Range: DC to 34 GHz
・Typical Use: Precision RF measurement, network analyzers, laboratory equipment

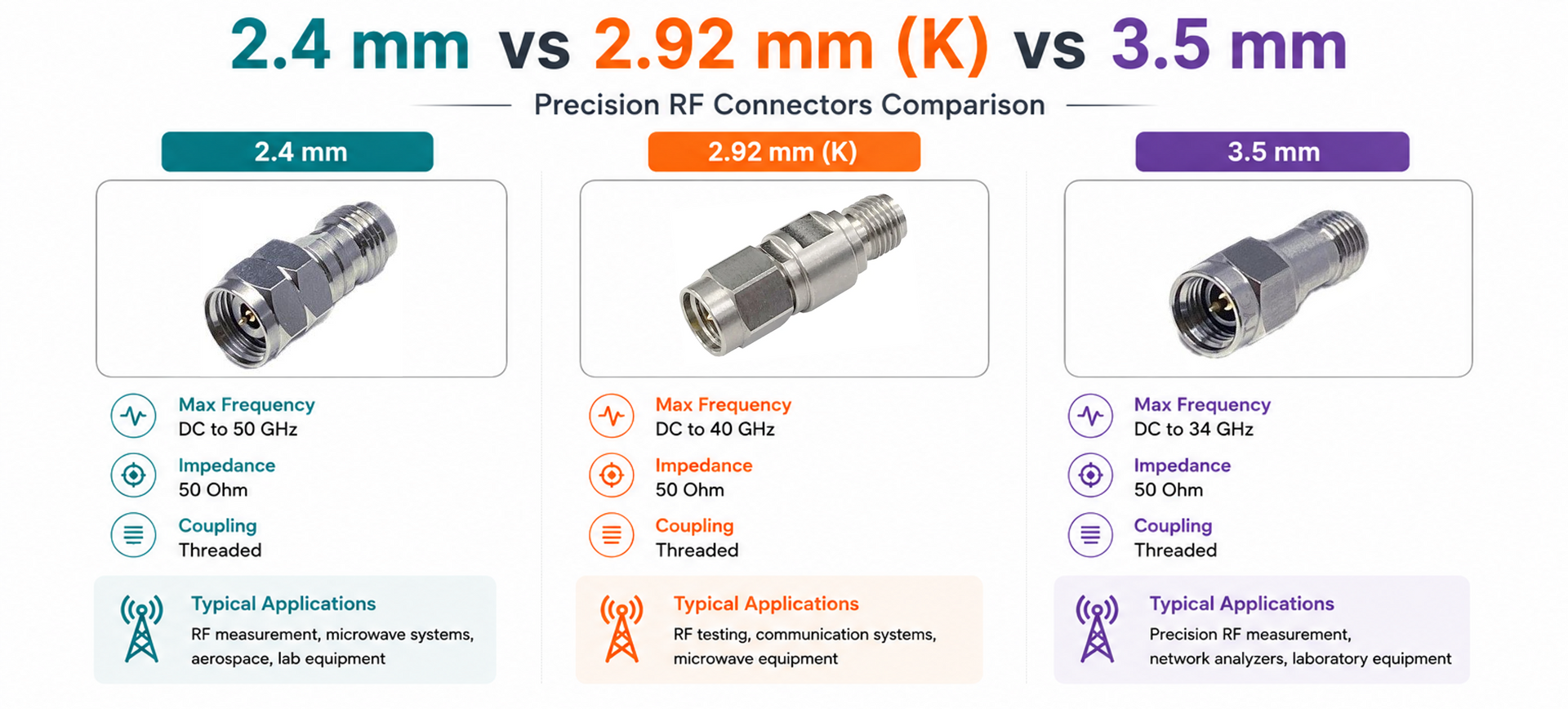

Side-by-Side Comparison Table
| Specification | 2.4 mm | 2.92 mm (K) | 3.5 mm | Why It Matters |
|---|---|---|---|---|
| Primary Purpose | High-Frequency RF Measurement | High-Frequency RF Testing | Precision RF Measurement | Each is optimized for different measurement requirements. |
| Maximum Frequency | DC to 50 GHz | DC to 40 GHz | DC to 34 GHz | Select according to the highest required operating frequency. |
| Coupling Mechanism | Threaded | Threaded | Threaded | All provide secure and repeatable RF connections. |
| Impedance | 50 Ohm | 50 Ohm | 50 Ohm | All are designed for precision 50 Ohm RF systems. |
| Connector Interface | 2.4 mm | 2.92 mm | 3.5 mm | Interface dimensions affect frequency performance and compatibility. |
| Typical Applications | RF measurement, microwave systems, aerospace | RF testing, communication systems, microwave equipment | Precision measurement, network analyzers, laboratory equipment | Select according to frequency and measurement requirements. |
| Compatibility | Not Compatible with 2.92 mm / 3.5 mm | Compatible with 3.5 mm | Compatible with 2.92 mm | Compatibility is important when integrating different RF equipment. |
Key Differences Explained
1. Maximum Operating Frequency
The most significant difference among these connector types is their maximum operating frequency.
・2.4 mm: Up to 50 GHz
・2.92 mm (K): Up to 40 GHz
・3.5 mm: Up to 34 GHz
The 2.4 mm connector provides the highest frequency capability of the three, while 2.92 mm and 3.5 mm connectors offer greater flexibility for systems using compatible interfaces.
2. Connector Interface and Compatibility
Compatibility is another important difference.
2.92 mm (K) and 3.5 mm connectors can be mechanically mated, providing flexibility in RF test and measurement systems. The 2.92 mm connector is also compatible with SMA interfaces.
In contrast, 2.4 mm connectors use a different mechanical interface and cannot be directly connected to 2.92 mm, 3.5 mm, or SMA connectors.
3. Typical Applications
2.4 mm
・High-frequency RF measurement
・Microwave systems
・Aerospace and defense
・Advanced laboratory equipment
2.92 mm (K)
・RF testing
・Communication systems
・Microwave equipment
・High-frequency test systems
3.5 mm
・Precision RF measurement
・Network analyzers
・Laboratory instruments
・Calibration and test systems
4. Which Connector Should You Choose?
Choose the connector according to your required operating frequency, compatibility, and measurement environment.
・2.4 mm is ideal when frequency performance up to 50 GHz is required.
・2.92 mm (K) is a versatile choice when performance up to 40 GHz and compatibility with 3.5 mm or SMA are important.
・3.5 mm is well suited for precision measurement applications where repeatability and mechanical precision are priorities.
Are They Compatible?
Partially.
2.92 mm (K) and 3.5 mm connectors are mechanically compatible and can be directly mated in many RF test and measurement systems.
However, 2.4 mm connectors use a different interface and are not directly compatible with either 2.92 mm or 3.5 mm connectors.
When connecting 2.4 mm equipment to a 2.92 mm or 3.5 mm interface, an appropriate between-series adapter should be used to avoid connector damage and maintain reliable RF performance.
How to Choose Between 2.4 mm, 2.92 mm, and 3.5 mm
1. Choose 2.4 mm when...
・Frequencies up to 50 GHz are required.
・High-frequency measurement performance is a priority.
・Microwave or advanced RF systems are being developed.
・Compatibility with 2.92 mm or 3.5 mm is not required.
2. Choose 2.92 mm (K) when...
・Frequencies up to 40 GHz are required.
・Compatibility with 3.5 mm or SMA connectors is important.
・RF testing or microwave measurements are performed.
・A balance between high-frequency performance and interface flexibility is required.
3. Choose 3.5 mm when...
・Precision RF measurement is the primary application.
・Frequencies up to 34 GHz are sufficient.
・Network analyzers or laboratory test equipment are used.
・Compatibility with 2.92 mm or SMA connectors is useful.
Technical Specifications Summary
| Item | 2.4 mm | 2.92 mm (K) | 3.5 mm |
|---|---|---|---|
| Maximum Frequency | DC to 50 GHz | DC to 40 GHz | DC to 34 GHz |
| Coupling | Threaded | Threaded | Threaded |
| Impedance | 50 Ohm | 50 Ohm | 50 Ohm |
| Connector Interface | 2.4 mm | 2.92 mm | 3.5 mm |
| Compatibility | 1.85 mm | SMA and 3.5 mm | SMA and 2.92 mm |
| Primary Application | High-Frequency RF Measurement | RF Testing and Microwave Systems | Precision RF Measurement |
2.4 mm vs 2.92 mm vs 3.5 mm FAQs
QWhat is the main difference between 2.4 mm, 2.92 mm, and 3.5 mm connectors?
QWhat is the main difference between 2.4 mm, 2.92 mm, and 3.5 mm connectors?
The main differences are maximum operating frequency and mechanical compatibility. The 2.4 mm connector supports the highest frequency at up to 50 GHz, while 2.92 mm supports up to 40 GHz and 3.5 mm up to 34 GHz.
QCan these connector types be connected directly?
QCan these connector types be connected directly?
2.92 mm and 3.5 mm connectors can be directly mated. However, 2.4 mm connectors are not mechanically compatible with either 2.92 mm or 3.5 mm connectors.
QWhich connector offers the highest frequency performance?
QWhich connector offers the highest frequency performance?
The 2.4 mm connector offers the highest frequency capability of the three, supporting operation up to 50 GHz.
QWhy would I choose a 2.92 mm connector instead of a 2.4 mm connector?
QWhy would I choose a 2.92 mm connector instead of a 2.4 mm connector?
A 2.92 mm connector provides performance up to 40 GHz while offering compatibility with 3.5 mm and SMA connectors. This makes it useful when interface flexibility is important.
QWhy choose a 3.5 mm connector?
QWhy choose a 3.5 mm connector?
3.5 mm connectors are designed for precision RF measurement and provide excellent mechanical precision and repeatability. They are commonly used with network analyzers and laboratory measurement equipment.
QAre 2.92 mm and 3.5 mm connectors compatible with SMA?
QAre 2.92 mm and 3.5 mm connectors compatible with SMA?
Yes. TYCLON specifies both 2.92 mm and 3.5 mm connectors as mechanically compatible with SMA. However, the usable frequency of the connection is limited by the lowest-performing component in the system.
QHow do I choose the right connector?
QHow do I choose the right connector?
Choose based primarily on operating frequency, required compatibility, and measurement precision. Use 2.4 mm for applications approaching 50 GHz, 2.92 mm for high-frequency performance with broader compatibility, and 3.5 mm for precision RF measurement.
Purchase Guide
Tyclon coaxial connectors and processed coaxial cable products can be purchased directly online using a variety of credit cards.
