• 50Ω
  • Jack(Flange)
  • Products in stock
  • RoHS2
TYCLON

SMA-PJ-085S

$6.25
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

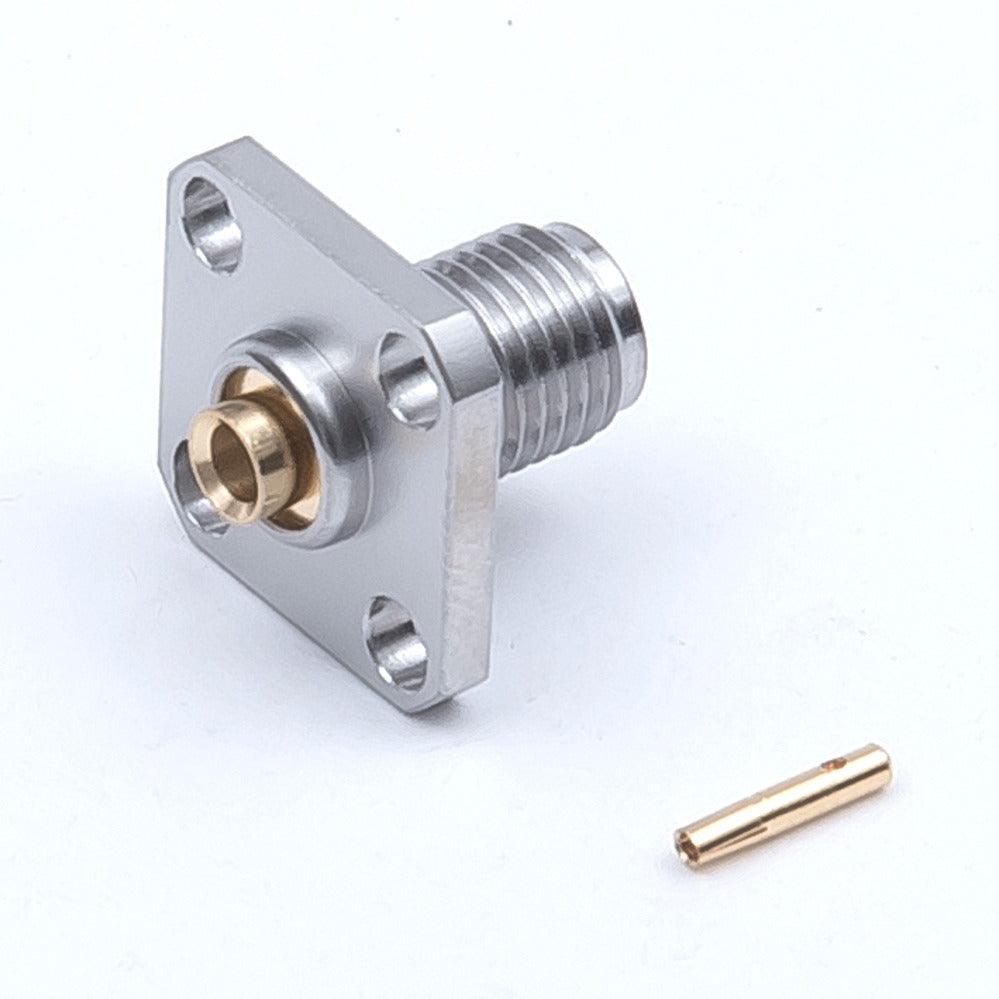

The SMA-PJ-085S is an SMA Flange Jack connector, designed for semi-rigid and semi-flexible cables. This connector is suitable for various high-frequency applications.Fits 0.085Semi-Flex,0.085Semi-Rigid,RG-405/U cables.It features a impedance 50Ω, operates up to 12.4GHz, and has a rated voltage of AC 335V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at 0.5~8 GHz(semi-flexible cable), 1.2(Max.) at 0.5~12.4 GHz(semi-rigid cable)).Withstanding temperatures from -40 to +85°C.The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Stainless Steel / Passivate Treatment (Soldered Part, Gold Plating) / Soldering.We recommend using a SMAJ positioner for mounting.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Cable type
    0.085Semi-Flex, 0.085Semi-Rigid, RG-405/U
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 335V
  • Operating Frequency Range
    12.4GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at 0.5~8 GHz(semi-flexible cable), 1.2(Max.) at 0.5~12.4 GHz(semi-rigid cable)
  • Operating Temperature Range
    -40 to +85°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating/Soldering
  • Body
    Stainless Steel / Passivate Treatment (Soldered Part, Gold Plating) / Soldering

The SMA-PJ-085S is an SMA Flange Jack connector, designed for semi-rigid and semi-flexible cables. This connector is suitable for various high-frequency applications.Fits 0.085Semi-Flex,0.085Semi-Rigid,RG-405/U cables.It features a impedance 50Ω, operates up to 12.4GHz, and has a rated voltage of AC 335V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at 0.5~8 GHz(semi-flexible cable), 1.2(Max.) at 0.5~12.4 GHz(semi-rigid cable)).Withstanding temperatures from -40 to +85°C.The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Stainless Steel / Passivate Treatment (Soldered Part, Gold Plating) / Soldering.We recommend using a SMAJ positioner for mounting.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Featured collection

SMA Jack(Flange)
TYCLON

SMA-PJ-085S

$6.25

SMA Jack(Flange)

Cable type

0.085Semi-Flex, 0.085Semi-Rigid, RG-405/U

Connector Gender

Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 335V

Operating Frequency Range

12.4GHz

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 1000V(1 minute)

Contact Resistance

3 mΩ(Max.)

V.S.W.R

1.2(Max.) at 0.5~8 GHz(semi-flexible cable), 1.2(Max.) at 0.5~12.4 GHz(semi-rigid cable)

Operating Temperature Range

-40 to +85°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
