• 50Ω
  • Coaxial Attenuator
  • Products in stock
  • RoHS2
TYCLON

NA-PJ-3

$51.00
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

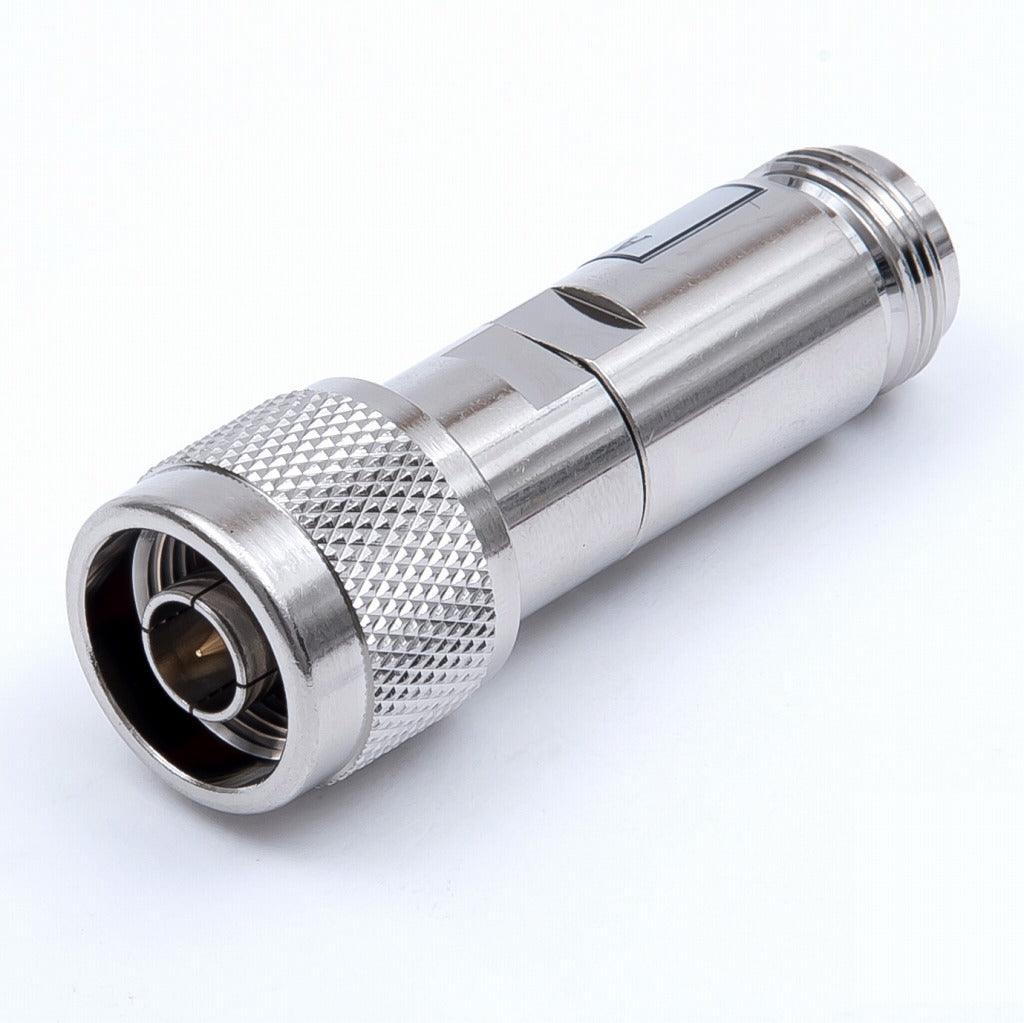

The NA-PJ-3 is an N Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 4 GHz, and an excellent V.S.W.R 1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz. Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 2W.Attenuation is 3±0.3dB up to 2GHz, 3±0.5dB up to 4GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    4 GHz
  • V.S.W.R
    1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz
  • Operating Temperature Range
    -20 to +65°C
  • Rated Power (W)
    2W
  • Attenuation (dB)
    3±0.3dB up to 2GHz, 3±0.5dB up to 4GHz

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Beryllium Copper/Gold Plating
  • Body
    Brass/Nickel Plating

The NA-PJ-3 is an N Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 4 GHz, and an excellent V.S.W.R 1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz. Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 2W.Attenuation is 3±0.3dB up to 2GHz, 3±0.5dB up to 4GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector N Coaxial Attenuator
TYCLON

NA-PJ-3

$51.00

N Coaxial Attenuator

Cable type

N/A

Connector Gender

Plug-Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

4 GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz

Operating Temperature Range

-20 to +65°C

Crimping Tool

N/A

Rated Power (W)

2W

Attenuation (dB)

3±0.3dB up to 2GHz, 3±0.5dB up to 4GHz

Length (m)

N/A

Terminal Shape

N/A
