• 50Ω
  • Cable Assembly
  • RoHS2
  • Small lot order available
TYCLON

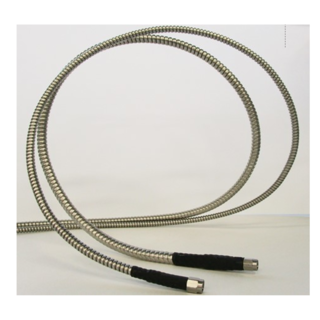

TC-065A φ6.1 Armored Cable

Please inquire from “Contact” for made-to-order products.
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

Armored cable reinforced with flexible measurement TC-065 cable covered with stainless steel tubing; slimmer than TC-055A for applications where handling is important; supports up to 40 GHz; available in three types: SMA (plug, L-plug and jack), N-type (plug and jack) and 2.92 mm (plug and jack); and 2.92 mm (plug and jack). Connectors are available in SMA (plug, L-plug, jack), N-type (plug, jack), and 2.92 mm (plug, jack). For detailed cable specifications and electrical characteristics, please refer to the specifications sheet.

Specifications
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    40GHz
  • V.S.W.R
    1.10(SMA), 1.20(2.92mm), 1.25(N)
  • Operating Temperature Range
    -40 to +125°C
  • Attenuation (dB)
    0.25dB/m@1GHz (TYP)

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

Armored cable reinforced with flexible measurement TC-065 cable covered with stainless steel tubing; slimmer than TC-055A for applications where handling is important; supports up to 40 GHz; available in three types: SMA (plug, L-plug and jack), N-type (plug and jack) and 2.92 mm (plug and jack); and 2.92 mm (plug and jack). Connectors are available in SMA (plug, L-plug, jack), N-type (plug, jack), and 2.92 mm (plug, jack). For detailed cable specifications and electrical characteristics, please refer to the specifications sheet.

Featured collection

RF Coaxial Connector High Frequency Test Cables Cable Assembly
TYCLON

TC-065A φ6.1 Armored Cable

$0.00

High Frequency Test Cables Cable Assembly

Cable type

N/A

Connector Gender

N/A

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

40GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.10(SMA), 1.20(2.92mm), 1.25(N)

Operating Temperature Range

-40 to +125°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

0.25dB/m@1GHz (TYP)

Length (m)

N/A

Terminal Shape

N/A
