• 50Ω
  • Cable Assembly
  • RoHS2
  • Small lot order available
TYCLON

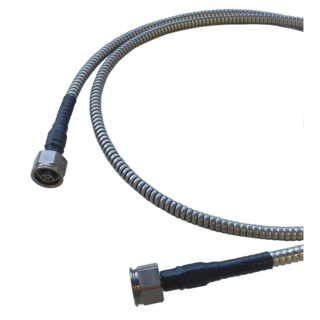

TC-055A φ8.4 Armored Cable

Please inquire from “Contact” for made-to-order products.
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

Armored cable reinforced with low-loss, highest grade TC-055 cable covered with stainless steel tubing. The stainless steel tube protects the cable from external pressure and ensures long life. Connectors are available in SMA (plug and jack), N-type (plug), and 3.5mm (plug and jack). For detailed cable specifications and electrical characteristics, please refer to the specifications sheet. All

Specifications
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    26.5GHz
  • V.S.W.R
    1.10(SMA), 1.20(N), 1.10(3.5mm)
  • Operating Temperature Range
    -35 to +125°C
  • Attenuation (dB)
    0.25dB/m@1GHz (TYP)

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

Armored cable reinforced with low-loss, highest grade TC-055 cable covered with stainless steel tubing. The stainless steel tube protects the cable from external pressure and ensures long life. Connectors are available in SMA (plug and jack), N-type (plug), and 3.5mm (plug and jack). For detailed cable specifications and electrical characteristics, please refer to the specifications sheet. All

Featured collection

RF Coaxial Connector High Frequency Test Cables Cable Assembly
TYCLON

TC-055A φ8.4 Armored Cable

$0.00

High Frequency Test Cables Cable Assembly

Cable type

N/A

Connector Gender

N/A

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

26.5GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.10(SMA), 1.20(N), 1.10(3.5mm)

Operating Temperature Range

-35 to +125°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

0.25dB/m@1GHz (TYP)

Length (m)

N/A

Terminal Shape

N/A
Compare now
