BNCJ-ESP-58(black)

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

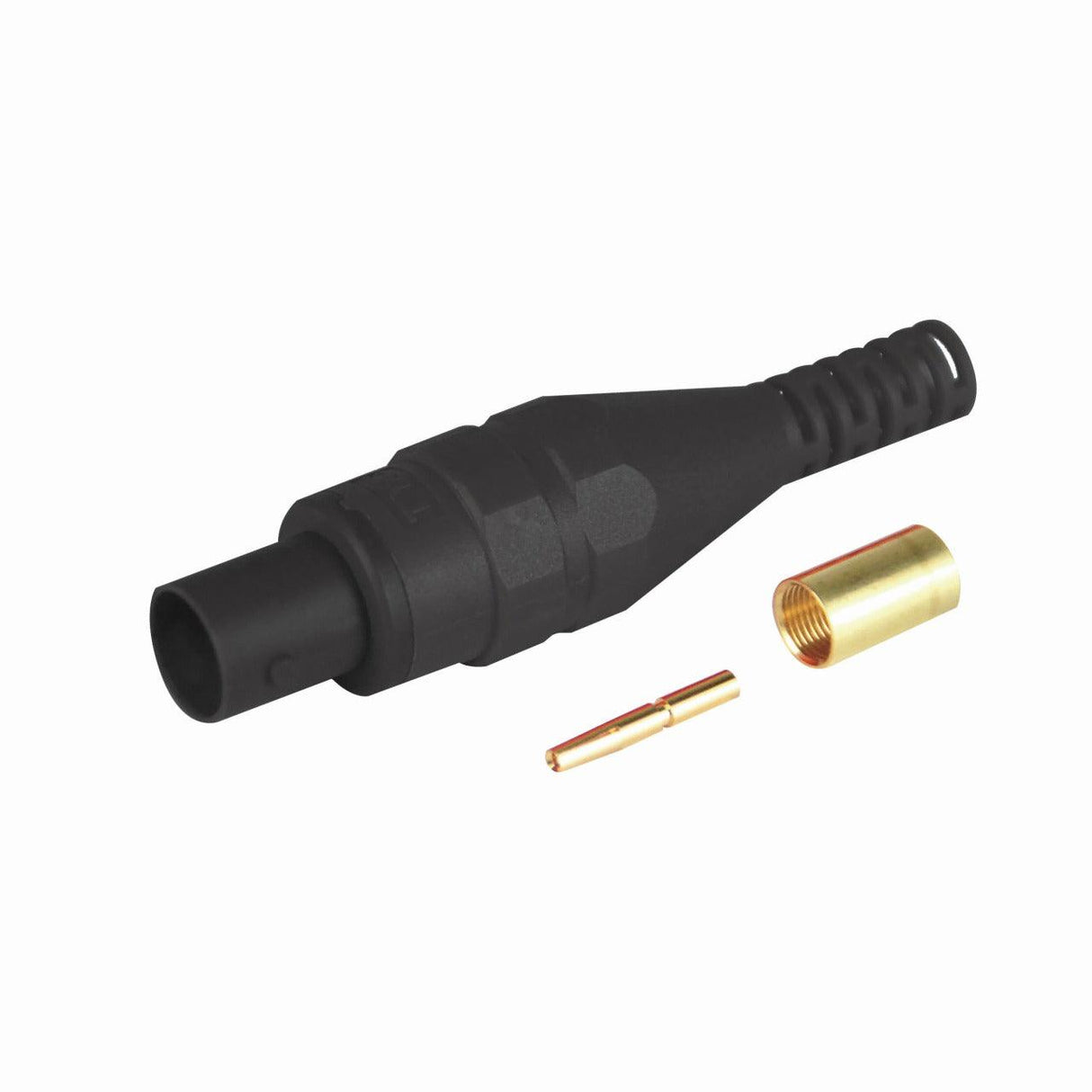

The BNCJ-ESP-58(black) is an BNC Touch-protected connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-58A/U cables. It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (10 mΩ(Max.). The contact is made of Phosphor Bronze/Gold Plating/Crimp, while the body is Brass/Nickel Plating/Crimp.A crimping toolTA-35 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    RG-58A/U
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 3000V(1 minute)
  • Contact Resistance
    10 mΩ(Max.)
  • Crimping Tool
    TA-35
