H･BNC Connector for Bus Drive Recorder
Introduction Overview
This drive recorder for buses uses Tohconnect H-BNC connectors. It is compatible with connectors such as “MICRO BNC” and “HD-BNC”.
Product

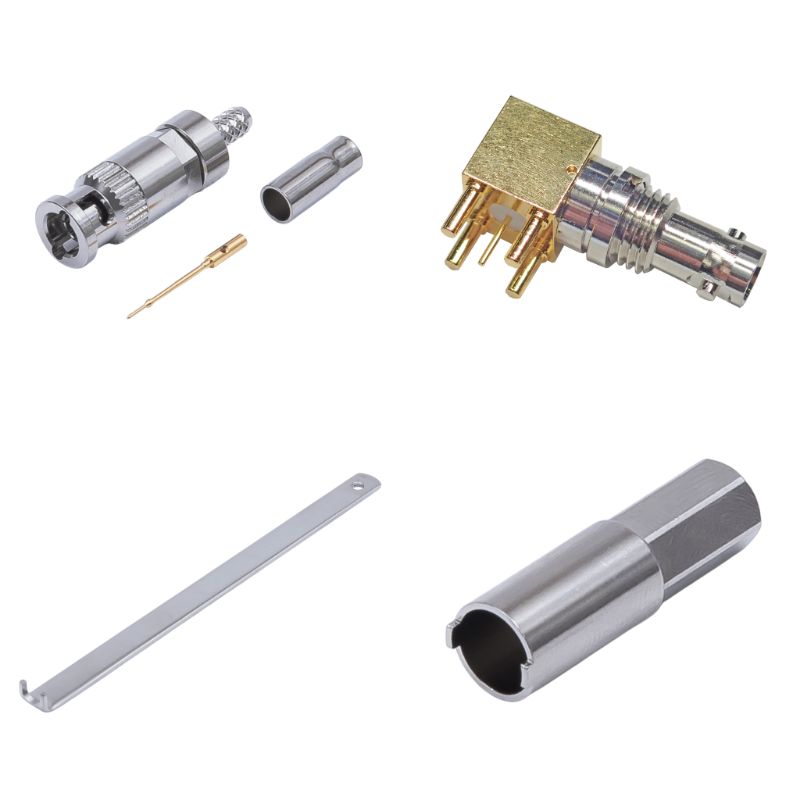

H･BNC Receptacle and Plug
Client
Manufacturer of bus equipment
Product Use Case
Used in bus drive recorders and on-board cameras
Before and After Introduction
Before Introduction
BNC size does not fit in the space available.
Small connectors are difficult to mate.
After Introduction
Impedance 75Ω for video transmission and reception H･BNC, also called "MICRO BNC","HD-BNC", has been adopted.
This compact standard enables high-density mounting four times denser than BNC.
H･BNC can be easily removed from the high-density array with a detachable tool.
